WELLAND EZSTOR EPC-221 Power Over eSATA PCI Express RAID Card 2x External SATA 1x IDE sataWEepc_221

tweet_button WELLAND EZSTOR EPC-221 Power Over eSATA PCI Express RAID Card

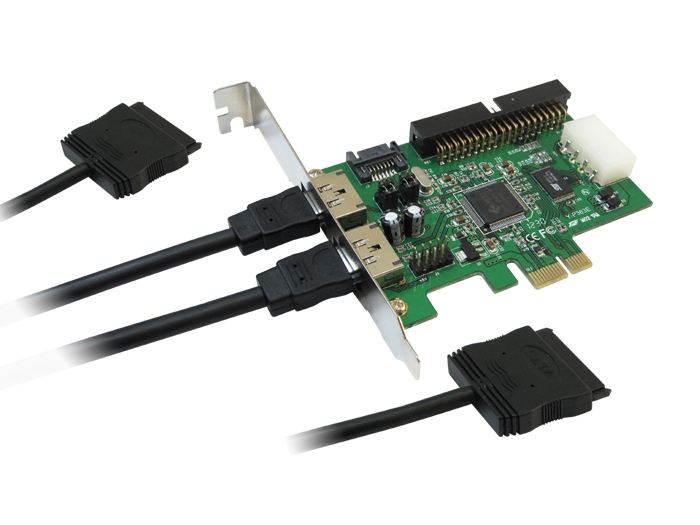

WELLAND EZSTOR EPC-221 Power Over eSATA PCI Express RAID Card 2x External SATA 1x IDE

WELLAND EZSTOR EPC-221
Application
Add-on 2 external Power over eSATA (eSATAp) ports to the PC system
PC Interface
PCI Express 1.1 specification, Standard 121mm Bracket
External Port
2 x external Power over eSATA (eSATAp) ports
(Compatible with Power over eSATA (eSATAp) / USB A Type / eSATA connector)
Internal Port 1 x IDE (PATA) connector
Bus Power Support 5V / 12V
Data Transfer Rate USB2.0 up to 480 Mbps, eSATA up to 3Gbps
SATA Features Fully compliant with SATAI/ II speeds
Supports 2-port 3.0Gbps SATA II interface
Supports two independent SATA II channels (separate logic and FIFO)
Supports Native Command Queue (NCQ) on SATA II port
Supports SATA II Gen2i and Gen2m (External SATA Connection, eSATA)
Supports Port Multiplier with command-based switching on SATA II port
Supports up to UDMA6 transfer mode of PATA
USB Features Driverless installation
Data transfer rate can be 1.5/12/480Mbps
Compliant with OHCI Specification for USB Rev 1.0a
Supports USB OHCI & UHCI modes
Daisy Chain up to 127 devices
Supports device hot swap
Easy plug and play installation
RAID Support RAID 0 / 1/JBOD and SATA Port-Multiplier
System Requirements Windows 2000 / Server 2003 / XP / Vista / 7 , MAC 10.4.6 or later & Linux system PC with a free PCI Express slot. Motherboard with a free USB pin header. Available 12V power cable (with big 4 pin power plug)
Drive Support
2.5" / 3.5" SATA HDD or 5.25" SATA ODD
Connector Type SATA Male (22 pin) to Power over eSATA (eSATAp) Male
Cable Length 100cm (approximately 39 inches)
Transmission Rate eSATA up to 3Gbps
Systems Supported Windows 2000/ Server 2003 / XP/ Server 2008 / Vista / 7 , Mac 10.4.6 later & Linux
