TP-LINK EAP610 AX1800 Wireless Dual Band Ceiling Mount Access Point neTL_eap610

tweet_button TP-LINK EAP610 AX1800 Wireless Dual Band Ceiling Mount Access Point - GameDude Computers

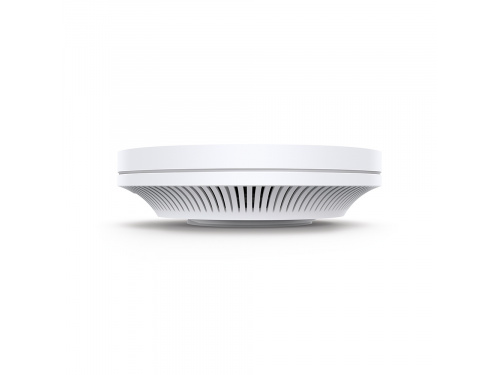

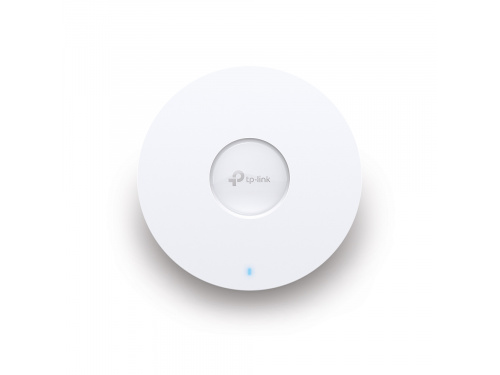

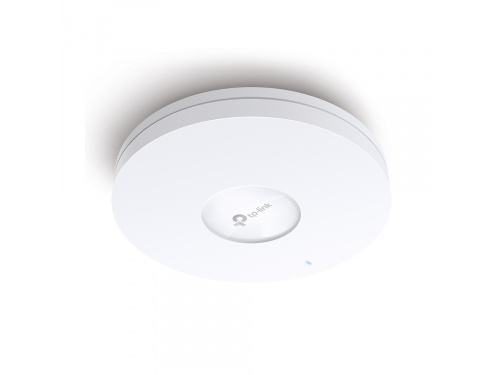

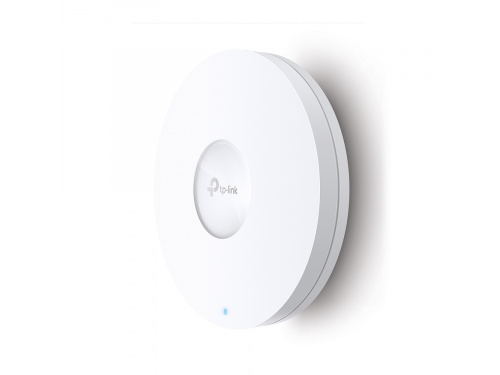

TP-LINK EAP610 AX1800 Wireless Dual Band Ceiling Mount Access Point
ON SALE
eap610_11_ax1800_wifi_6_access_point_office_wifi_large_1623921041814seap610_3_ax1800_wifi_6_access_point_school_network_large_1623920932992deap610_4_ax1800_wifi_6_access_point_classroom_wifi_large_1623920947852aeap610_2_ax1800_wifi_6_access_point_hotel_network_large_1623920921431jeap610_1_ax1800_wifi_6_access_point_hotel_wifi_large_1623920904657xeap610_5_ax1800_wifi_6_access_point_retail_wifi_large_1623920956476zeap610_9_ax1800_wifi_6_access_point_centralized_managment_large_1623921020743yeap610_10_ax1800_wifi_6_access_point_seamless_roaming_large_1623921031530seap610_6_ax1800_wifi_6_access_point_shopping_mall_wifi_large_1623920974510jeap610_7_ax1800_wifi_6_access_point_meeting_room_wifi_large_1623920991091teap610_8_ax1800_wifi_6_access_point_gigabit_large_1623921007646f
RRP: $219.00
Our price: $165.00 each
Brand: TP-LINKTP-LINK

10EAP610

New

AX1800 Wireless Dual Band Ceiling Mount Access Point

  • Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.†
  • High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.

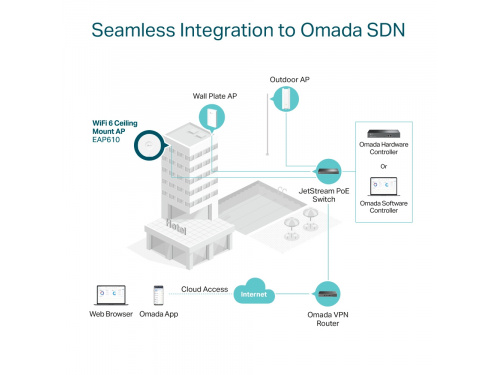

  • Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.

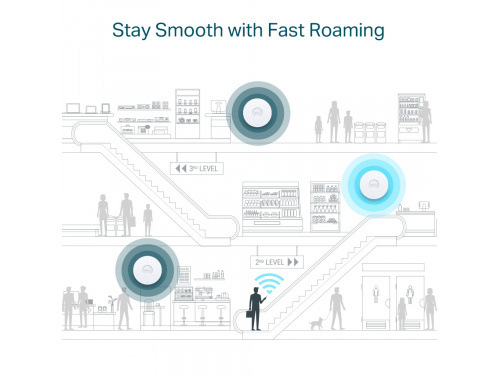

  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
  • Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
  • PoE+ Powered: Supports both Power over Ethernet (802.3at) and DC power supply for flexible installations.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.§

    WIRELESS FEATURES
    Wireless Standards IEEE 802.11ax/ac/n/g/b/a
    Frequency 2.4 GHz and 5 GHz
    Signal Rate 5 GHz: Up to 1201 Mbps
    2.4 GHz: Up to 574 Mbps
    Wireless Functions • 1024-QAM
    • 4× Longer OFDM Symbol
    • OFDMA
    • Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
    • Enable/Disable Wireless Radio
    • Automatic Channel Assignment
    • Transmit Power Control (Adjust Transmit Power on dBm)
    • QoS(WMM)
    • MU-MIMO
    • Seamless Roaming §
    • Omada Mesh§
    • Band Steering
    • Load Balance
    • Airtime Fairness
    • Beamforming
    • Rate Limit
    • Reboot Schedule
    • Wireless Schedule
    • Wireless Statistics based on SSID/AP/Client
    Wireless Security • Captive Portal Authentication§
    • Access Control
    • Wireless Mac Address Filtering
    • Wireless Isolation Between Clients
    • SSID to VLAN Mapping
    • Rogue AP Detection
    • 802.1X Support
    • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
    Transmission Power • CE:

    • FCC:
    MANAGEMENT
    Omada App Yes
    Centralized Management • Omada Hardware Controller (OC300)
    • Omada Hardware Controller (OC200)
    • Omada Software Controller
    Cloud Access Yes (Through OC300, OC200, or Omada Software Controller)
    Email Alerts Yes
    LED ON/OFF Control Yes
    Management MAC Access Control Yes
    SNMP v1, v2c, v3
    System Logging Local/Remote Syslog Local/Remote Syslog
    SSH Yes
    Web-based Management HTTP/HTTPS
    L3 Management Yes
    Multi-site Management Yes
    Management VLAN Yes
    • Operating Temperature: 0–40 ℃ (32–104 ℉)
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing
    OTHERS
    Certification CE, FCC, RoHS
    Package Contents • EAP610
    • Power Adapter
    • Ceiling/Wall Mounting Kits
    • Installation Guide
    System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
    Environment
    HARDWARE FEATURES

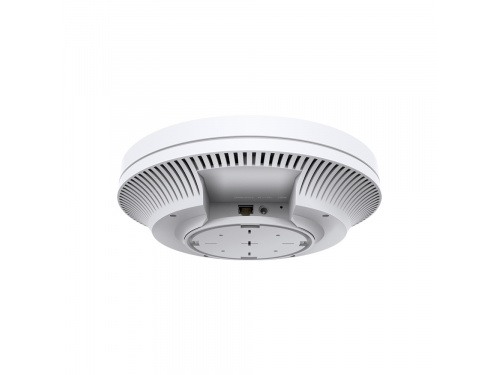

    Interface 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
    Button Reset
    Power Supply • 802.3at PoE
    • 12 V / 1 A DC
    Power Consumption • EU: 12.8 W (For PoE); 10.8 W (for DC)
    • US: 13.9W (For PoE); 11.8 W (for DC)
    Dimensions ( W x D x H ) 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
    Antenna Type Internal Omni
    • 2.4 GHz: 2× 4 dBi
    • 5 GHz: 2× 5 dBi

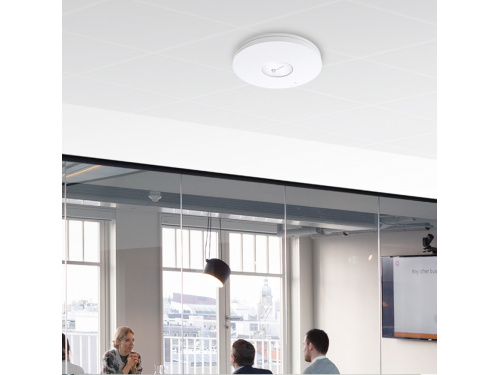

    Mounting Ceiling /Wall Mounting (Kits included)
