TENDA TEF1109P-8-102W Switch 9-Port Fast Unmanaged Switch With 8-Port PoE MODEL : TEF1109P-8-102W neTEtef1109p_8_102w

tweet_button TENDA TEF1109P-8-102W Switch 9-Port Fast Unmanaged Switch With 8-Port PoE MODEL : TEF1109P-8-102W - GameDude Computers

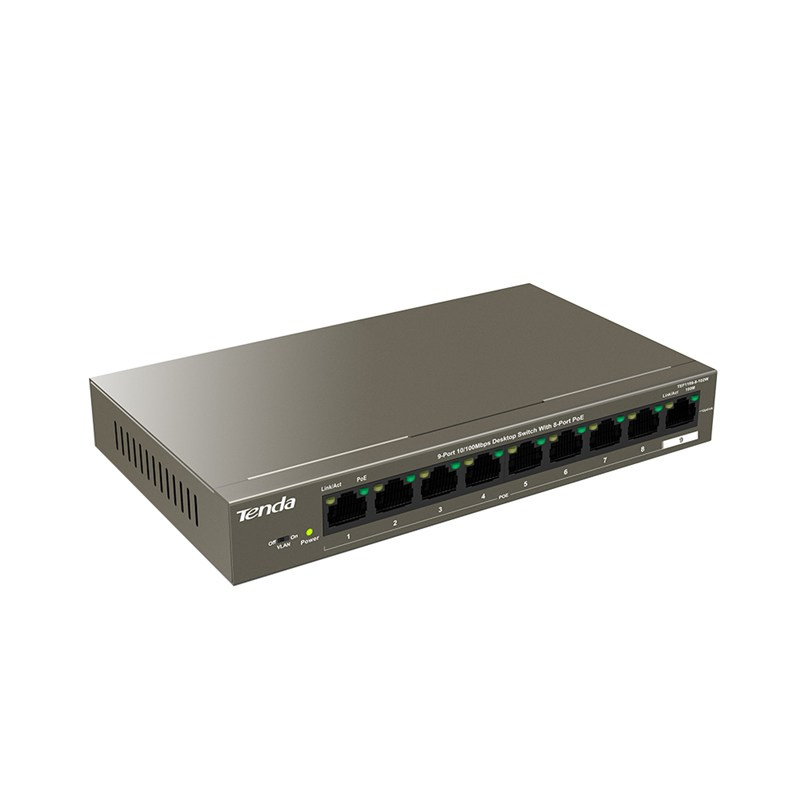

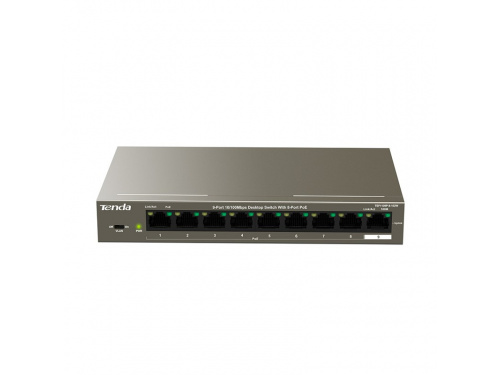

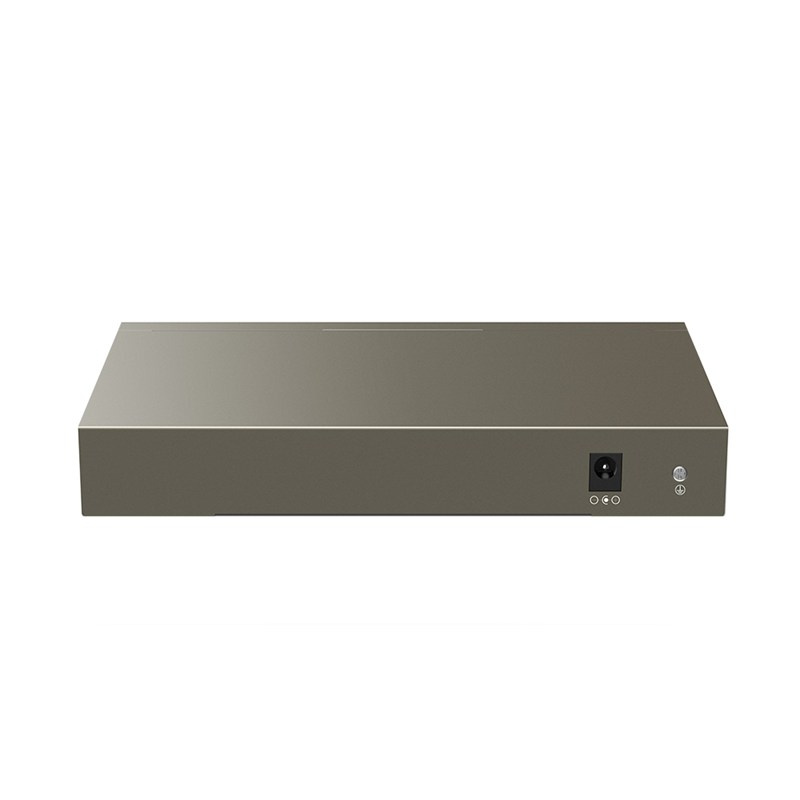

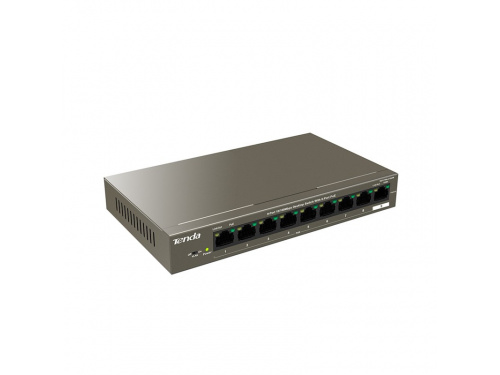

TENDA TEF1109P-8-102W Switch 9-Port Fast Unmanaged Switch With 8-Port PoE MODEL : TEF1109P-8-102W
tef1109p-8-102w2tef1109p-8-102w1tef1109p-8-102w3

TEF1109P-8-102W is a Tenda switch that offers 9 10/100M RJ45 ports. Ports 1-8 comply with the IEEE802.3af standard (maximum PoE power output : 15.4w) and 802.3at standard (maximum PoE power output: 30W). The switch offers a maximum PoE power output of 92W and can supply power to exchange data with APs, IP cameras, and IP phones through CAT5e cables. It also provides simple management modes such as Standard, VLAN. Thus, F1109P-8-102W is a perfect choice for SMBs, hotels, and office to have small-scale HD surveillance and wireless networking.



Standard&Protocol IEEE 802.3/IEEE 802.3u/IEEE 802.3x/IEEE 802.3af/IEEE 802.3at
LED indicator
   9*Link/Act per device
   1*Power per device
Interface
   8 10/100Base-T ports(Data/Power)
   1 10/100Base-T ports(Data)
Lightning Protection 6KV for uplink port
Store & Forward Yes
exchange capacity 1.6 Gbps
Packet Forwarding Rate 1.34Mpps
Packet buffer 1Mb
MAC Address Table 2K
PoE supply management Port 1-8 support IEEE802.3at/af PoE standard
PoE through pin
   1 2 4 5 +
    3 6 7 8 -
Input Voltage AC: 100-240V～50/60Hz
Dimension 177.5*104*26mm ( W x D x H )
Port Features
   Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.
   VLAN: ports 1 to 8 are isolated from each other, but can communicate with ports 9 (uplink port) respectively.
