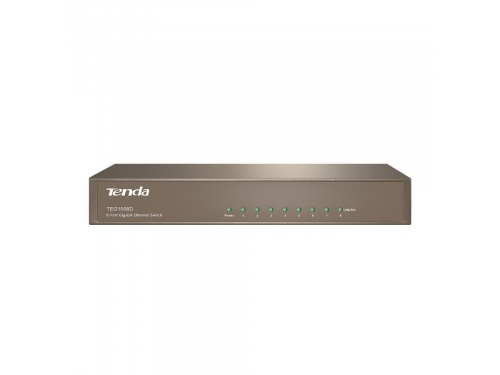

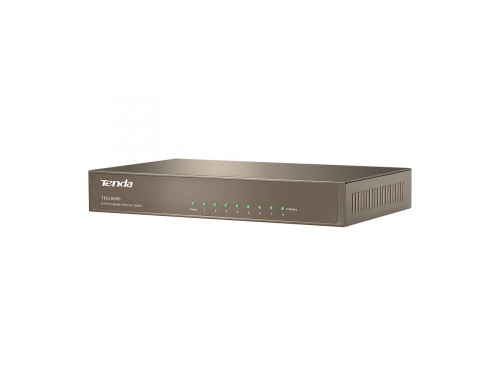

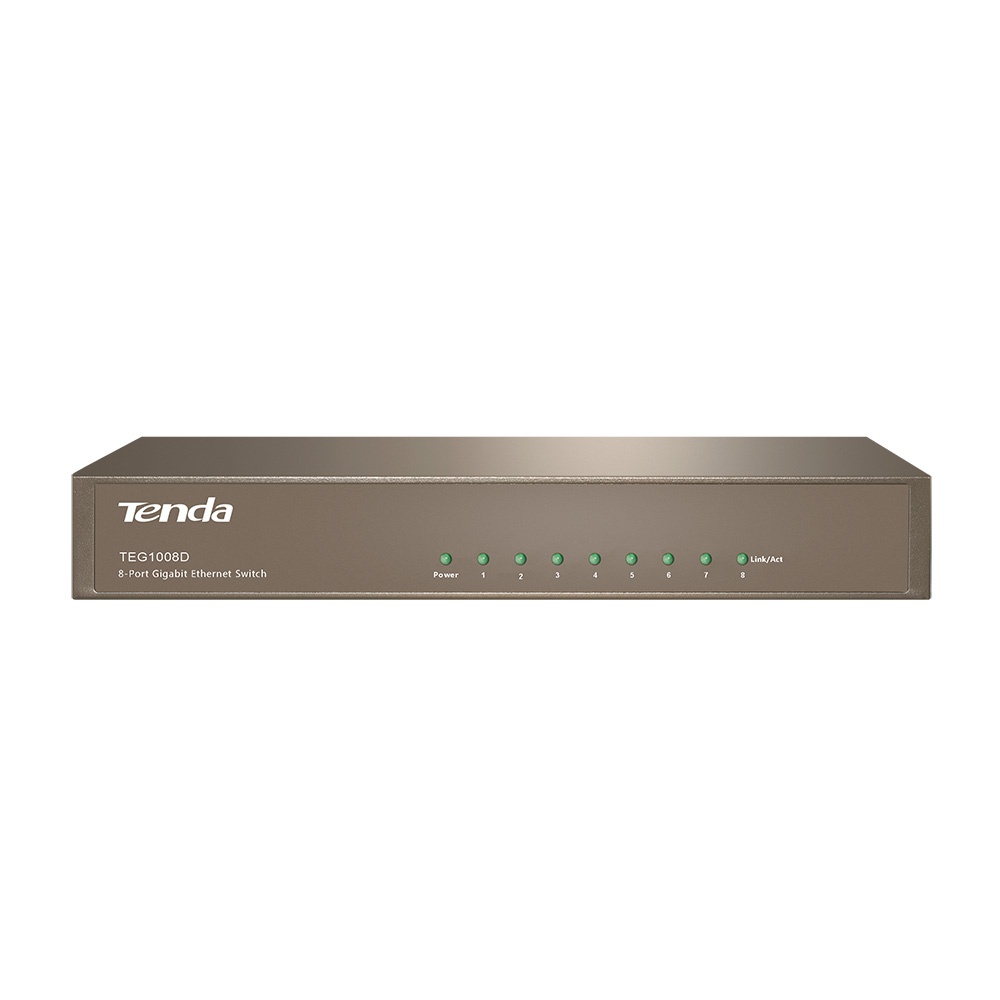

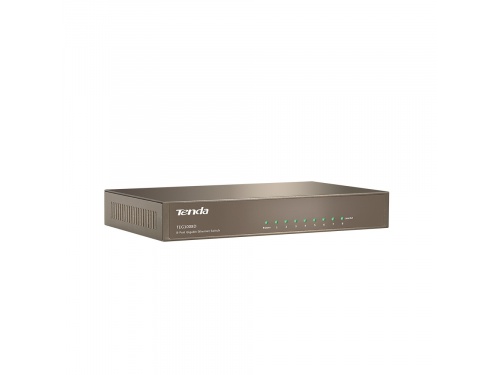

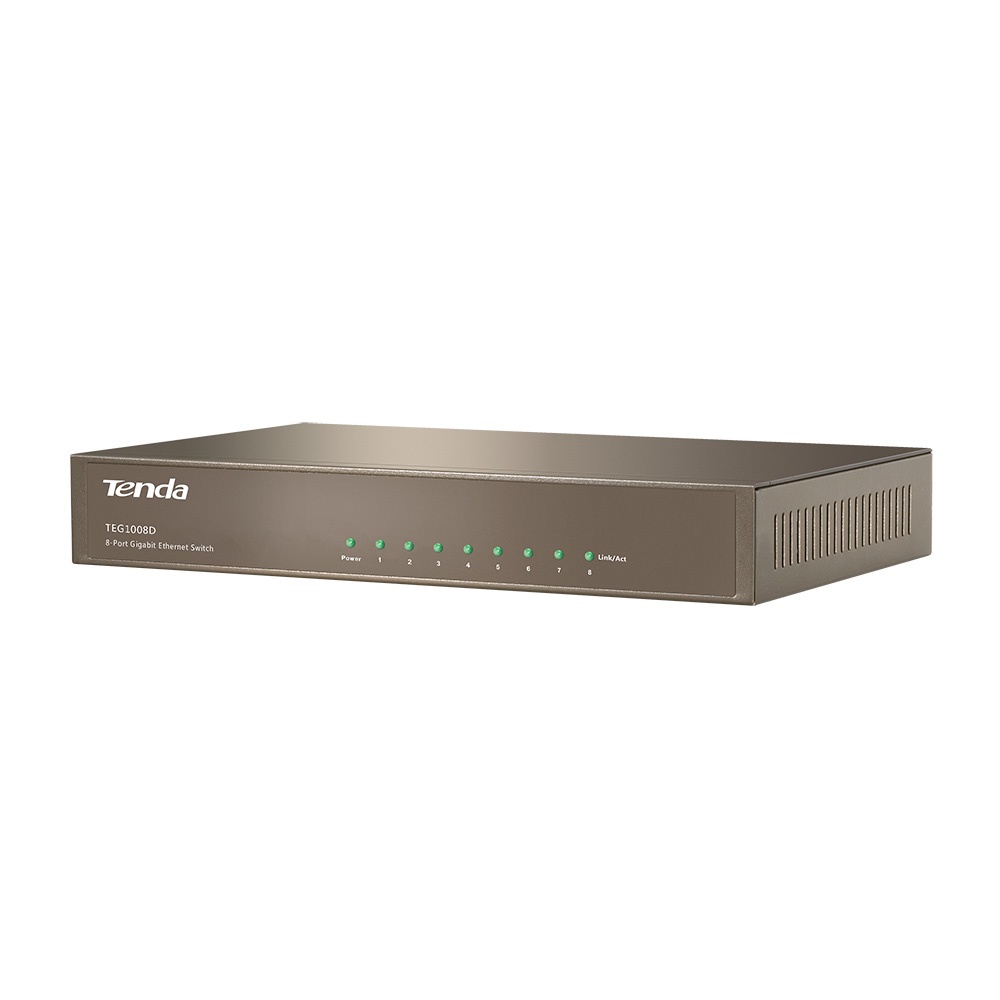

TENDA 8 Port Gigabit Switch 4KV Lightning Protection - Steel Frame - TEG1008D neTEteg1008d

$49.00 each

Contact us for more information

2

Description
Specifications

Description

What It Does

TEG1008D is an unmanaged gigabit switch with 8 10/100/1000Mbps auto-negotiation RJ45 ports. Wire-speed forwarding rate of each port is up to 1000Mbps. TEG1008D supports 9k Jumbo Frame to increase the forwarding rate of large files in order to boost network performance . Lightning proof level is up to 4KV to ensure the stability and safety when you surf the internet. With bulit -in latest Broadcom chip , fanless and greenlumi design , TEG1008D is the ideal choice for small & medium enterprises，schools , small offices to upgrade gigabit network.

Main Features

>> Compliant with IEEE802.3, IEEE802.3u , IEEE802.3x,IEEE802.3ab Ethernet standard.
>> Provides 8 10/100/1000Mbps auto-negotiation RJ45 Ports.
>> Plug and play without configuration.
>> Provides up to 16Gbps back panel bandwidth and supports non-blocking wire-speed forwarding.
>> Provides LEDs to easily monitor link speed , activity and find problems in time.
>> Supports IEEE802.3x full duplex flow control and half duplex backpressure flow control.
>> Supports loop detection and loop prevention.
>> Supports up to 4KV lightning-proof for each port.
>> Support desk & wall-mounting installation.
>> Full-metal & larger shell ensure effective cooling.

Payment Options

We accept CASH, EFTPOS, VISA or Master Card.
Credit cards incur 2% surcharge and are in store only.

We accept Direct Deposit for orders being freighted.

Important Information

Prices and specifications are subject to change.
Images are for illustration purposes and may be different to final product.

Please check the manufacturer's website for up to date specifications

Standard & Protocol	IEEE 802.3
	IEEE 802.3u
	IEEE 802.3ab
	IEEE 802.3x
Dimension	186.7mm×106.7mm×33.3mm(W x D x H)
Switch Processing Scheme	Store-and-Forward
Address Table	4K
Jumbo packet size	9K
Throughout	11.9Mpps
Backbound Bandwidth	16Gbps / non-blocking
Power Requirements	100-240V AC, 50/60Hz
Power Adapter	9V DC, 1A
Power Consumption	<4W
Temperature	Operating: 0~50 degrees C
Temperature	Storage: -10~70 degrees C
Humidity	Operating: 5~95%
Humidity	Storage: 5~95% (Non-condensing)
Certification	FCC , CE , ROHS
Flow Control	Back pressure for half duplex, IEEE 802.3x pause of frame for full duplex
Weight	<1kg
Port	Loop Detection/Prevention
Port	Inductive Lightning Protection: 4KV
