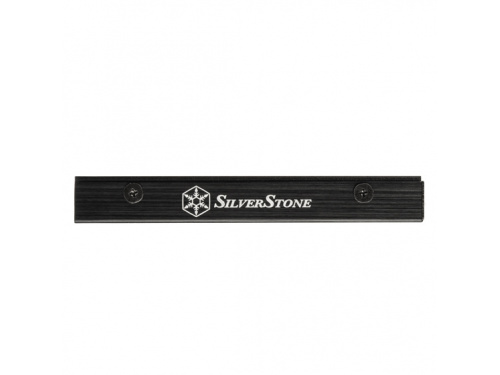

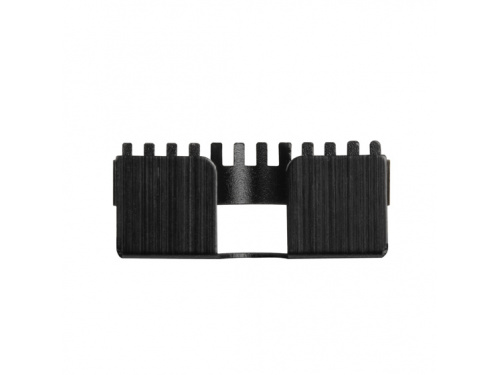

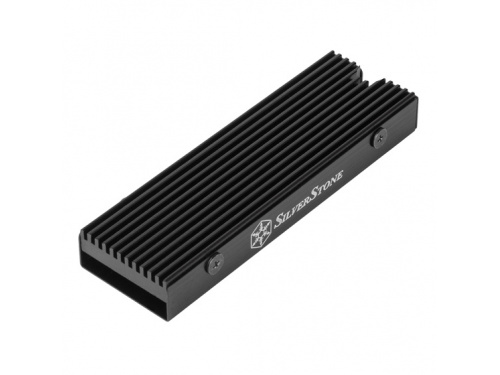

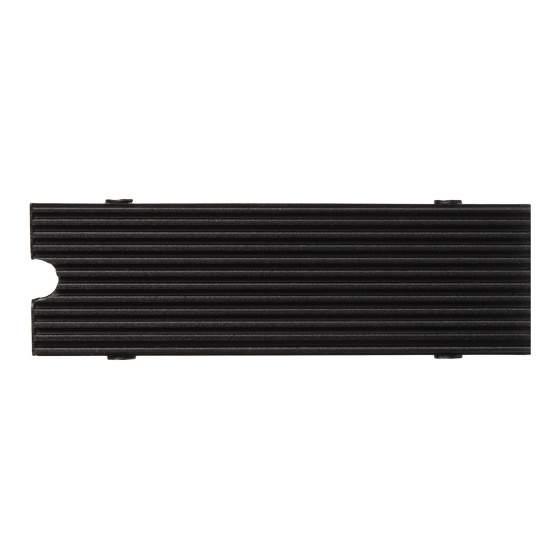

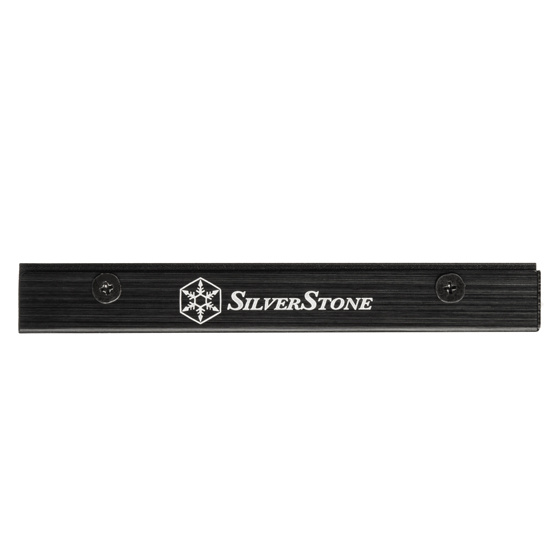

SilverStone TP05 M.2 SSD Slim Profile Aluminium Alloy Heatsink - BLACK MODEL : SST-TP05B coSItp05

￭ Slim-profile design

￭ Compatible with PS5 SSD specifications

￭ Aluminum alloy heatsink increases M.2 SSD cooling area

￭ Efficient heat conduction pad for reducing temperature

￭ Double layer design enhances SSD cooling for stability and efficiency

￭ Supports 2280 length M.2 SSD

SPECIFICATIONS

Model No.	SST-TP05B
Color	Black
Material	Aluminum
Thermal pad thickness	0.5mm x 2 1.75mm x 1
Thermal conductivity	0.5mm = 1.8W/m.k, 1.75mm = 1.5W/m.k
Net Weight and dimension	Gross weight: 76.4mm (W) x 24.8mm (H) x 10.3mm (D), 23.5g Thermal pad 1: 70mm (W) x 0.5mm (H) x 20mm (D), 1.5g Thermal pad 2 : 70mm (W) X 1.75mm (H) X 20mm (D), 5.25g
Support Length of M.2 SSD	2280 (22mm x 80mm)

Remark :

* If the M.2 slot on the motherboard is situated next to a PCIe slot, the height of the TP05 ‘s heatsink may interfere with graphic card or expansion card installation, we recommended installing TP05 onto other available M.2 slots on the motherboard to avoid interference issue.
