SilverStone FS301 1x 5.25" Device Bay to 1x 3.5" SAS or SATA trayless Hot Swap Cage. MODEL : SST-FS301 cadSIfs301

tweet_button SilverStone FS301 1x 5.25" Device Bay to 1x 3.5" SAS or SATA trayless Hot Swap Cage. MODEL : SST-FS301 - GameDude Computers
SilverStone FS301 1x 5.25" Device Bay to 1x 3.5" SAS or SATA trayless Hot Swap Cage. MODEL : SST-FS301

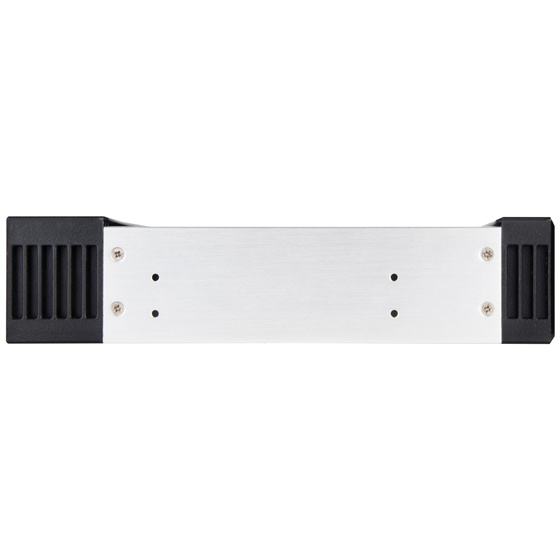

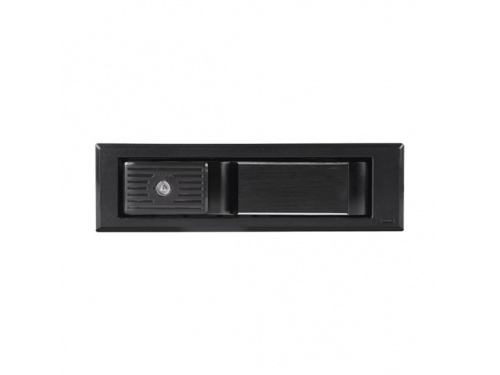

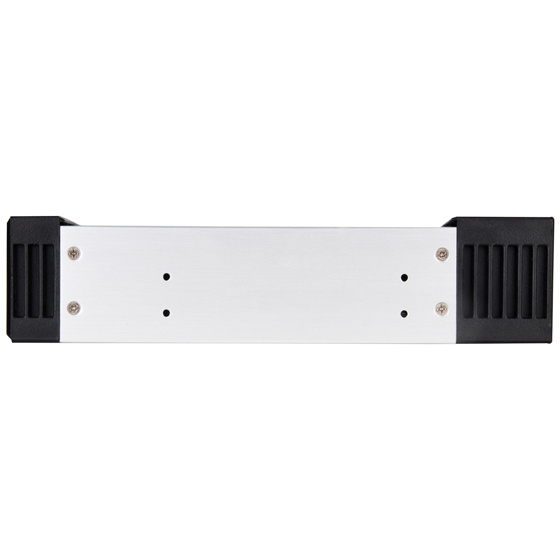

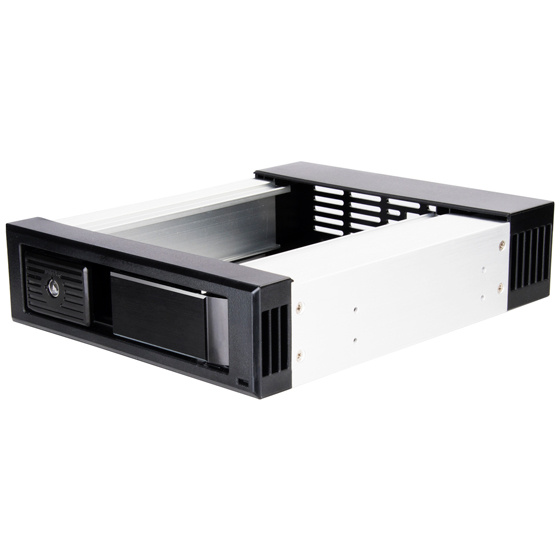

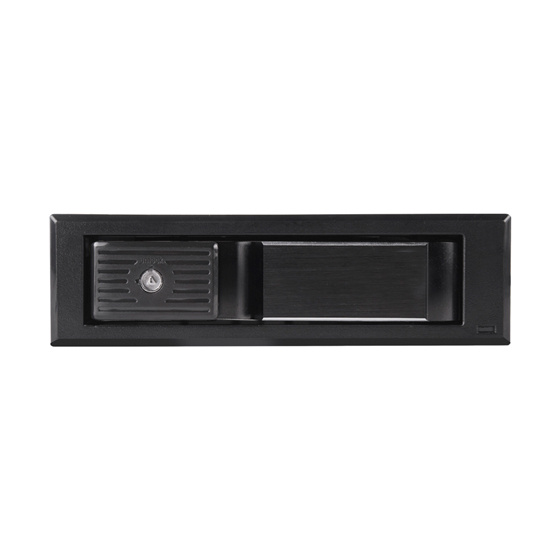

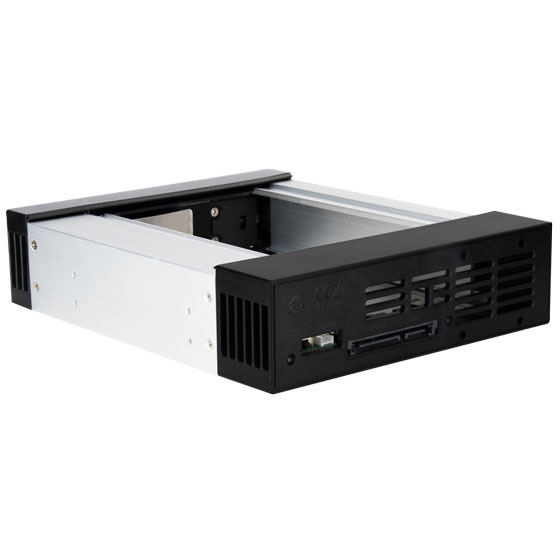

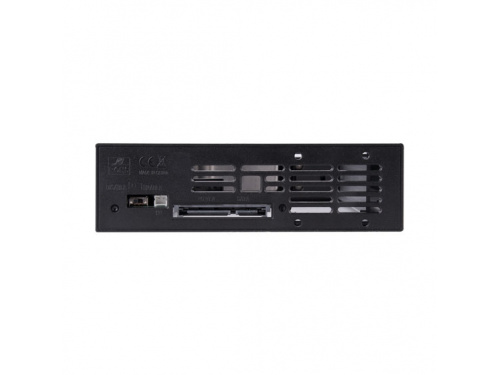

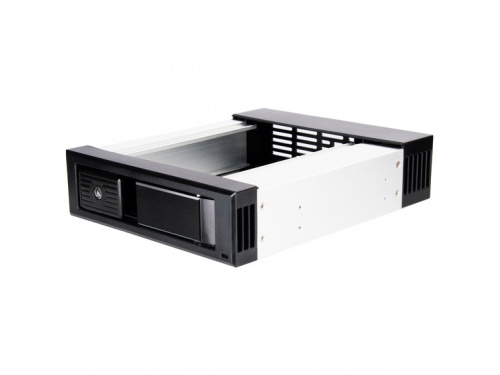

fs301-34-back-right-topfs301-34-back-left-topfs301-backfs301-34-left-topfs301-34-right-topfs301-bottomfs301-side-rightfs301-frontfs301-side-leftfs301-top
$48.00 each
Brand: SilverstoneSilverstone

FS301

Hot-swappable, tray-less 5.25" to 3.5" SAS/SATA device bay

■ Adjustable HDD activity status and reserved 2 pin 40mm cooling fan slot

■ Trayless & screwless design

■ Aluminum body with triangle metal key locks design to secure your data

■ Fits one 3.5" SAS 12 Gbit/s / SATA 6 Gbit/s hard drives in one 5.25" half height device bay & fully supports hot-swap function

SPECIFICATIONS

Model No.
SST-FS301
Color Black
Material Aluminum body & aluminum front bezel & plastic clip button
Form factor 5.25" half height device bay x 1
Drive support 1 x 3.5" SAS*/SATA HDD or SSD
Transfer rate Up to 12 Gbit/s** (dependent on HDD/SSD speed)
Host interface 7 pin SATA connector x 1 or SAS* primary channel connections
Power connector SATA 15-Pin x 1
Drive tray security Triangle metal key lock design
LED indicator Power ON : Blue
Accessing : Purple blinking
Number of key 2
Switch button HDD LED:ON/OFF
Net weight 400g
Dimension 146mm (W) x 42mm (H) x 175mm (D)
5.75" (W) x 1.65" (H) x 6.89" (D)

Remark
* Your system must have SAS controller if you want to use SAS HDD
* Hard drive capacity and RAID support is dependent on SAS or SATA controller used
**12Gbit/s Mini-SAS HD control card and cable required for 12Gb/s performance (e.g. SilverStone ECS05 & CPS05)
