SILVERSTONE ECM25 M.2 NVMe SSD to PCIe x4 1U Adapter Card - SST-ECM25 ssdSIm2_ecm25_pcie

Description

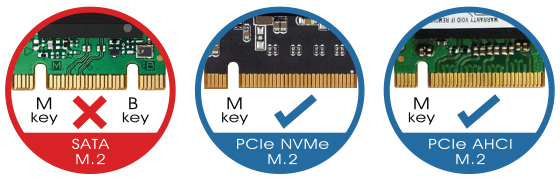

PLEASE NOTE: The ECM25 Adapter Card will only support M Key m.2 SSDs. B Key not supported. Requires PCI-e 4x Slot

PCI Express using AHCI (M key) only support to install this type
Used for PCI Express SSDs and interfaced through the AHCI driver and provided PCI Express lanes, providing backward compatibility with widespread SATA support in operating systems at the cost of not delivering optimal performance by using AHCI for accessing PCI Express SSDs.

PCI Express using NVMe (M key) only support to install this type
Used for PCI Express SSDs and interfaced through the NVMe driver and provided PCI Express lanes, as a high-performance and scalable host controller interface designed and optimized especially for interfacing with PCI Express SSDs. NVMe has been designed from the ground up, capitalizing on the low latency and parallelism of PCI Express SSDs, and complementing the parallelism of contemporary CPUs, platforms and applications.

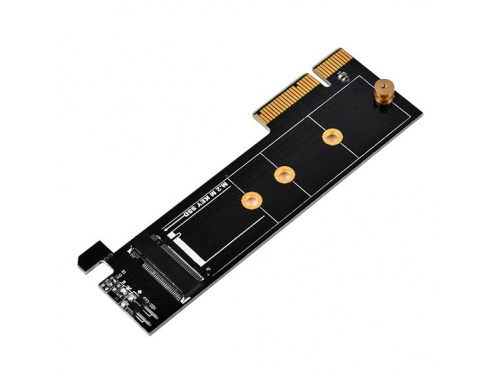

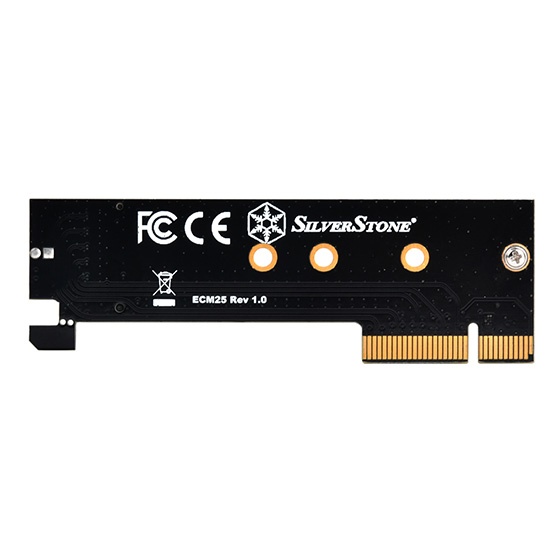

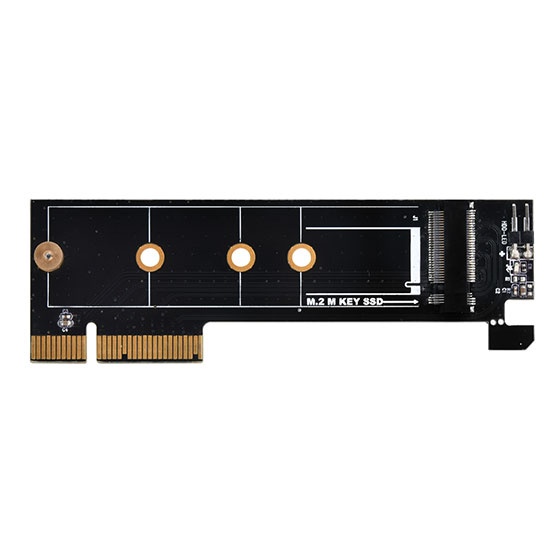

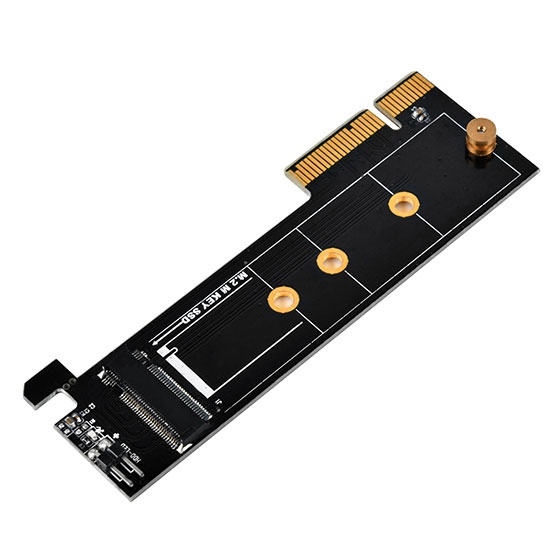

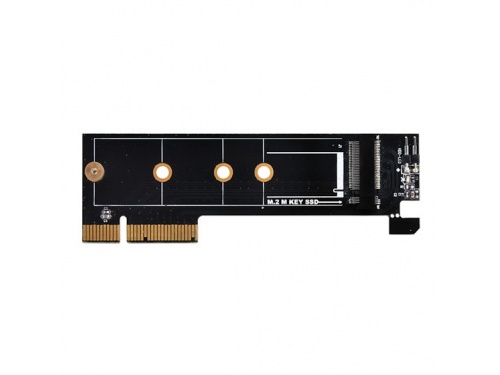

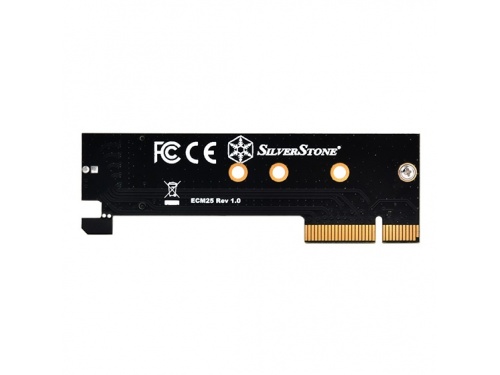

￭ Converts one M.2 port (M key) into one PCIe x4 interface

￭ Only 32mm tall when installed, easily fits in 1U chassis

￭ Built-in LED indicator for showing PCIe NVMe status

￭ Supports 2230,2242,2260 and 2280 length M.2 SSD

￭ No driver installation required
