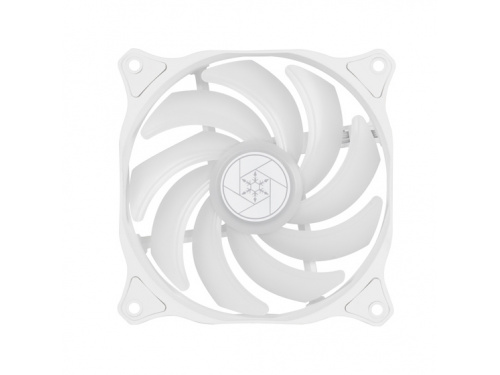

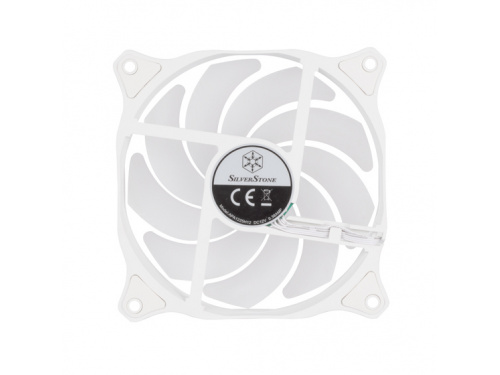

4Air Blazer 120RW
Brilliant addressable RGB fan optimized for radiators and heatsinks
￭ PWM enabled and optimized for radiator and heatsink use
￭ Displays any color combination by use of an addressable RGB controller or capable motherboard
￭ Equipped with Hydro Bearing for long life and low operational noise
￭ Integrated rubber padding helps to further reduce vibrational noise
￭ Utilizes standard ARGB 4-1 Pin for compatibility with most ARGB-capable motherboards and controllers
High static pressure / PWM controlled
120mm PWM controlled fan with 9 fan blade design engineered to generate higher airflow and optimized for constant, high-pressure operation without any compromisation.

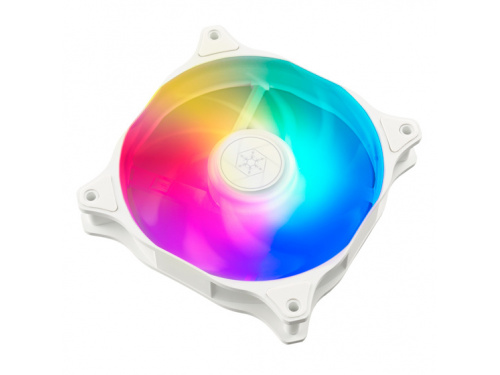

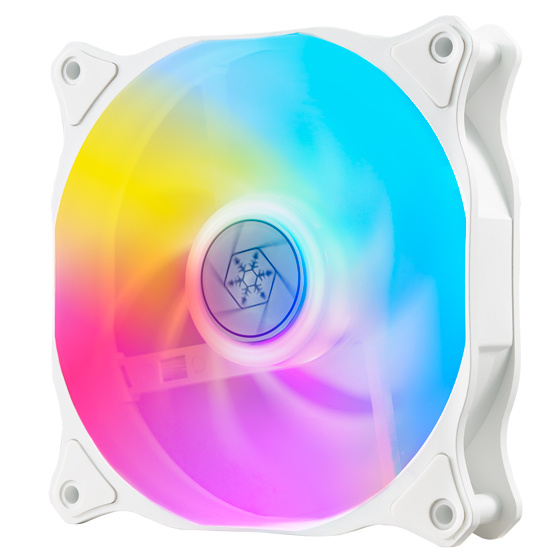

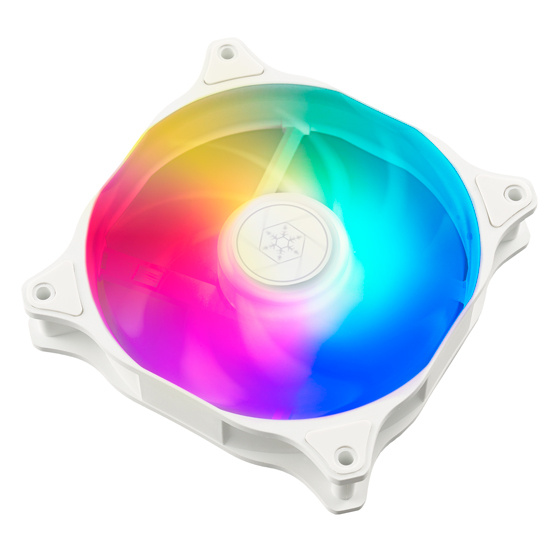

ARGB controlled fans
Display any color combination to your liking that can be synced via ARGB compatible motherboards with a 5V addressable RGB header from ASUS, GIGABYTE, MSI and ASROCK.
SPECIFICATIONS
Model No. SST-AB120RW-ARGB
Color White frame, Translucent fan blades
Bearing Hydro Bearing
Connectors 4 Pin PWM fan & 4-1 Pin ARGB (5V LED)
Rated Voltage 12V DC
Start Voltage 6V DC
Rated Current Fan: 0.32A, LED: 0.26A
Rated Power Fan: 3.84W, LED: 3.12W
Speed 600 ~ 2200 rpm ± 10 %
Airflow 25.62 ~ 93.97 CFM
Static Pressure 0.26 ~ 3.53 mm H2O
Noise Level 7.4 ~ 35.6 dBA
Life Time 40,000 hours

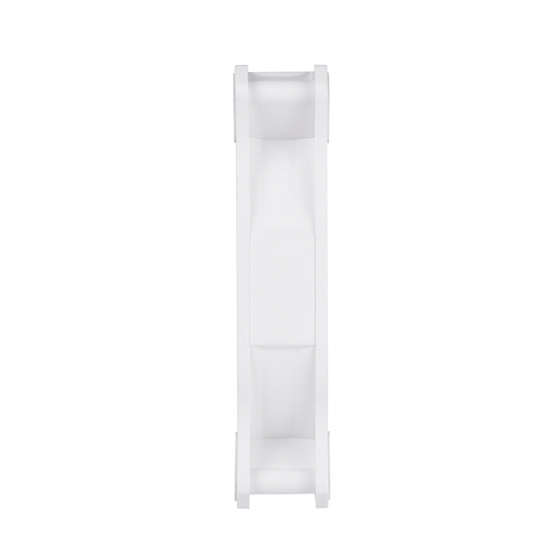

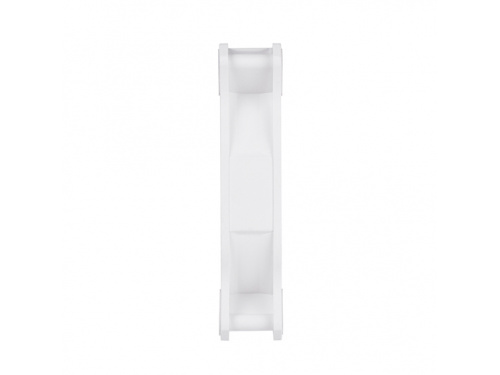

Dimension 120mm (L) x 120mm (W) x 25mm (H)
4.72" (L) x 4.72" (W) x 0.98" (H)
Remark:
* Please check to make sure the control box and motherboard RGB port that you want to connect are the same as AB120RW-ARGB’s RGB port definition. Incorrect connection may cause malfunction or damage.
