SAMSUNG MZ-V7S500BW 500GB m.2 NVMe SSD 970 EVO Plus Read 3500MBs Write 3200MBs ssdSAm2_970evoplus_500

tweet_button SAMSUNG MZ-V7S500BW 500GB m.2 NVMe SSD 970 EVO Plus Read 3500MBs Write 3200MBs  - GameDude Computers

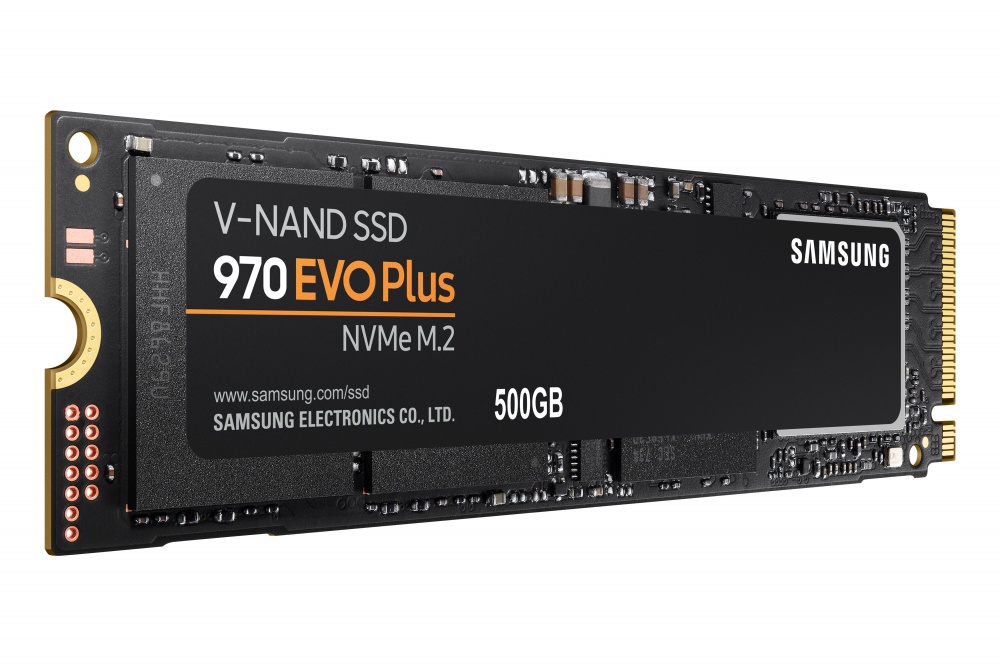

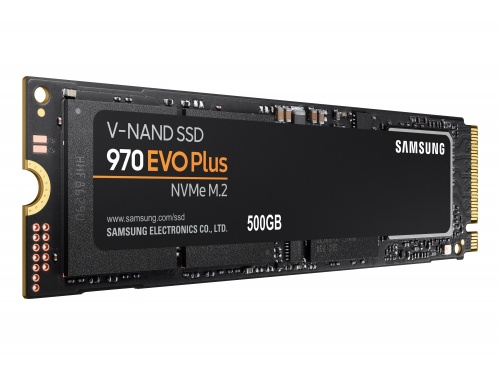

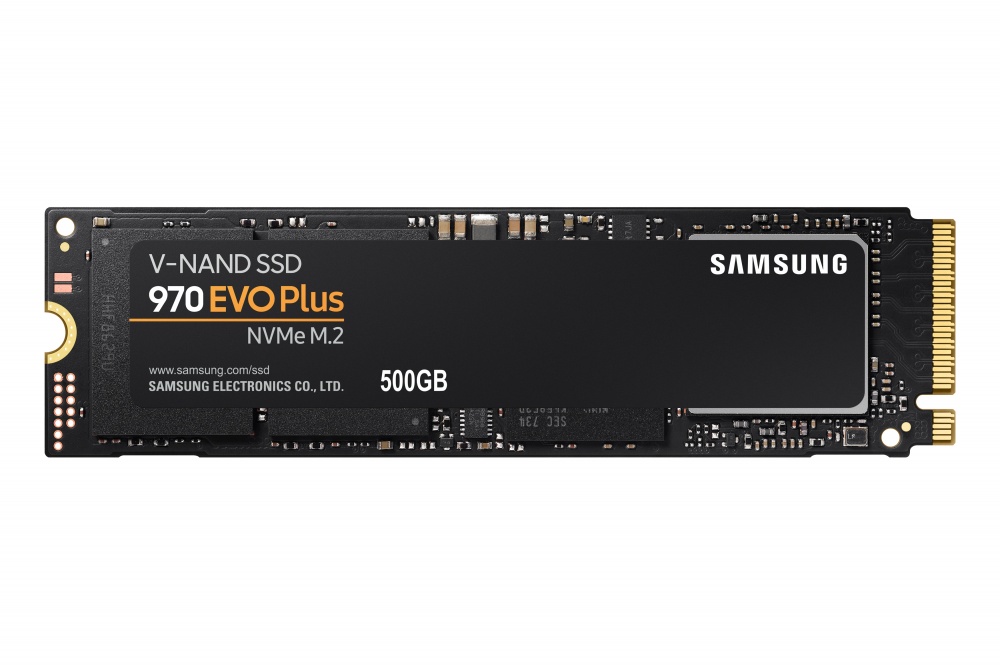

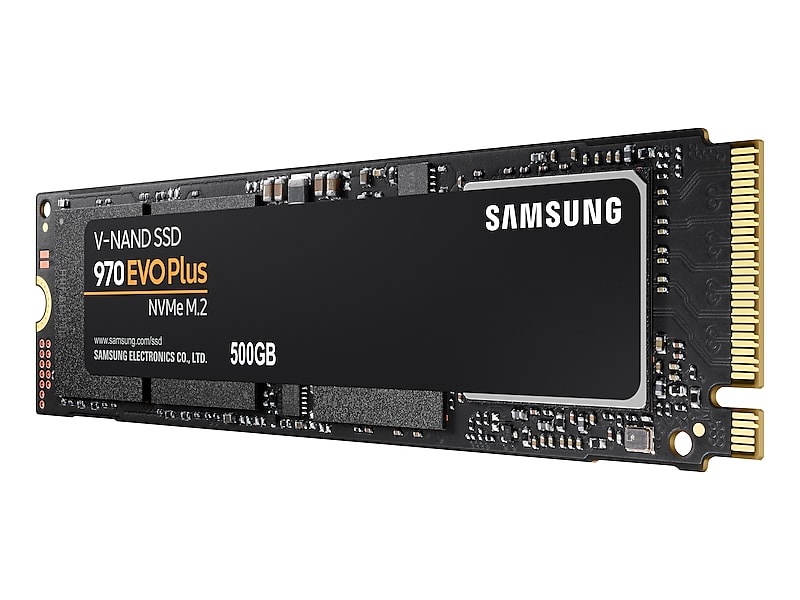

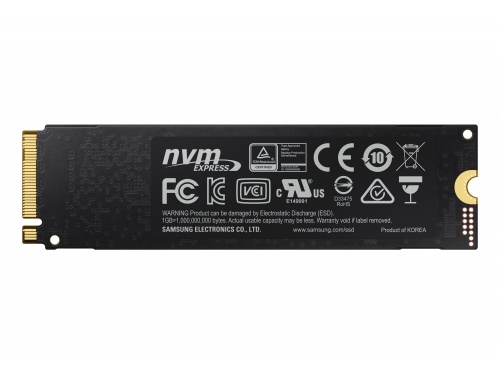

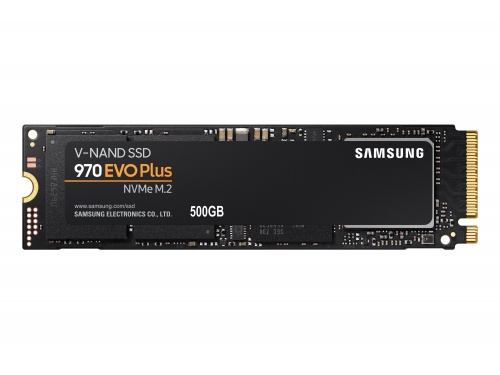

SAMSUNG MZ-V7S500BW 500GB m.2 NVMe SSD 970 EVO Plus Read 3500MBs Write 3200MBs

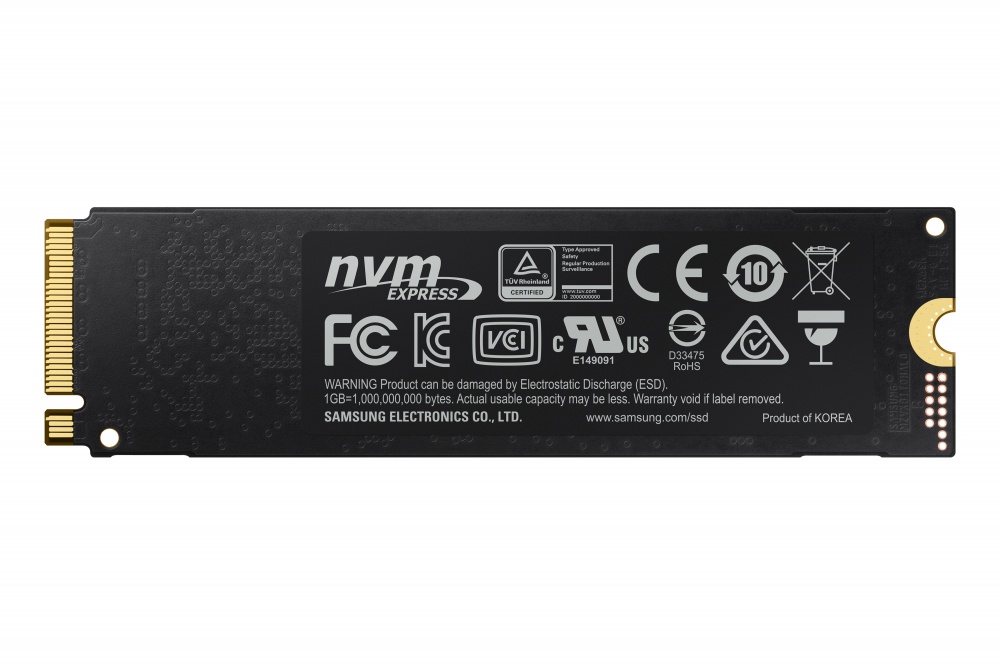

mz-v7s500bw_003_r-perspective_blackmz-v7s500bw_001_front_blackmz-v7s500bw_002_back_blackmz-v7s500bw_004_l-perspective_blackmz-v7s500bw_005_pkg-front
$129.00 each
Brand: SamsungSamsung

Product Type
- SSD
Series
- 970 EVO Plus
Usage Application
- Client PCs
Interface
- PCIe Gen 3.0 x 4, NVMe 1.3
Application
- Consumer

Capacity
- 500GB (1GB=1 Billion byte by IDEMA)
* Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Sequential Read Speed
- Up to 3,500 MB/s
* Performance may vary based on system hardware & configuration
Sequential Write Speed
- Up to 3,200 MB/s
* Performance may vary based on system hardware & configuration
Random Read Speed
- Random Read (4KB, QD32): Up to 480,000 IOPS; Random Read (4KB, QD1): Up to 19,000 IOPS
* Performance may vary based on system hardware & configuration
Random Write Speed
- Random Write (4KB, QD32): Up to 550,000 IOPS; Random Write (4KB, QD1): Up to 60,000 IOPS
* Performance may vary based on system hardware & configuration
Controller
- Samsung Phoenix Controller
NAND Flash
- Samsung V-NAND 3-bit MLC
Cache Memory
- Samsung 512MB Low Power DDR4 SDRAM
Trim Support
- Supported
AES Encryption
- AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
S.M.A.R.T. Support
- Supported
GC (Garbage Collection)
- Auto Garbage Collection Algorithm
WWN Support
- Not supported
Device Sleep Mode Support
- Yes
Temperature proof
- Yes
NVMe
- Yes
Gaming SSDs
- Yes

Average Power Consumption (system level)
* Average: 5.8 W * Maximum: 9 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle)
- Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration
Voltage
- 3.3 V ± 5 % Allowable voltage
Reliability (MTBF)
- 1.5 Million Hours Reliability (MTBF)

Operating Temperature
- 0 - 70 ℃ Operating Temperature
Shock
- 1,500 G & 0.5 ms (Half sine)
Form Factor
- M.2 (2280)

Dimensions (W x H x D)
- 80.15 x 22.15 x 2.38 (mm)
Weight
- Max 8.0 g Weight
Software
- Magician Software for SSD management
Warranty
- 5-Year Limited Warranty or: 300 TBW Limited Warranty

Payment Options

We accept CASH, EFTPOS, VISA or Master Card.
Credit cards incur 2% surcharge and are in store only.

We accept Direct Deposit for orders being freighted.

Important Information

Prices and specifications are subject to change.
Images are for illustration purposes and may be different to final product.

Please check the manufacturer's website for up to date specifications
