Pi1541 Assembled IO Adaptor for the Raspberry Pi Includes OLED Display c64_pi1541_adap

tweet_button Pi1541 Assembled IO Adaptor for the Raspberry Pi Includes OLED Display - GameDude Computers

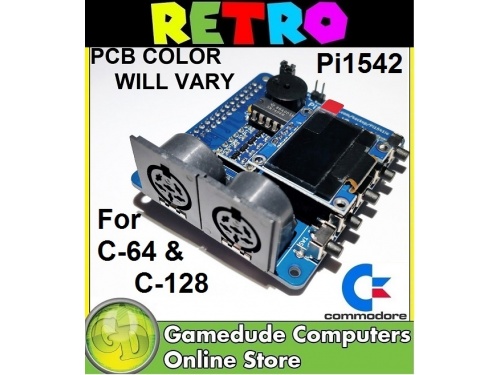

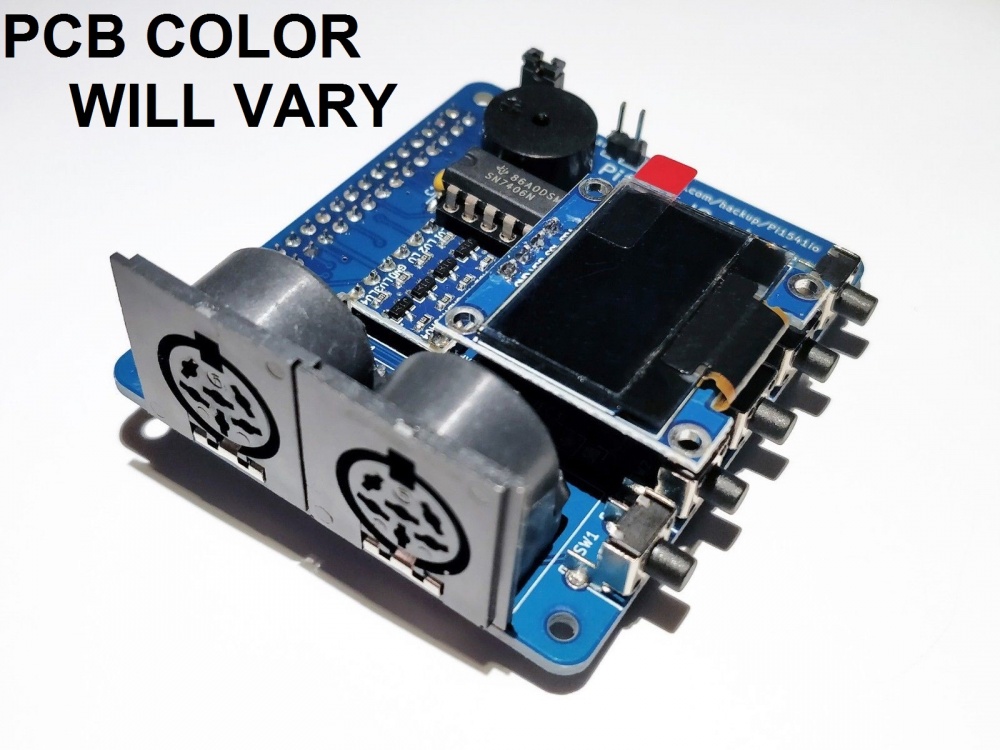

Pi1541 Assembled IO Adaptor for the Raspberry Pi Includes OLED Display
pi1541_retropi1541_pcbpi1541

Tested with the new v1.24 kernel.
The Pi1541 is a real-time, cycle exact, Commodore 1541 disk drive emulator that can run on the Raspberry Pi 3B, 3B+ and 3A+.

Simply put your games, demos and programs in .d64 format onto a microSD card or USB flash drive and load it from the Pi1541 like a real Commodore 1541/1581 disk drive.

This board uses 'Option B' which means that you need the line 'splitIECLines = 1' in your options.txt file.

Pi1541 Features -
128x64 OLED display included
Dual DIN connectors (serial ports)
Power and activity LEDs
Socketed 7406 IC
Piezo speaker for stepper motor sound simulation (optional)
Output for external speaker

All you need is -
Raspberry Pi 3B/3B+/3A+ with a micro-SD card
2.4A Power supply
Commodore Serial Cable

You can read more about the Pi1541 - https://cbm-pi1541.firebaseapp.com
