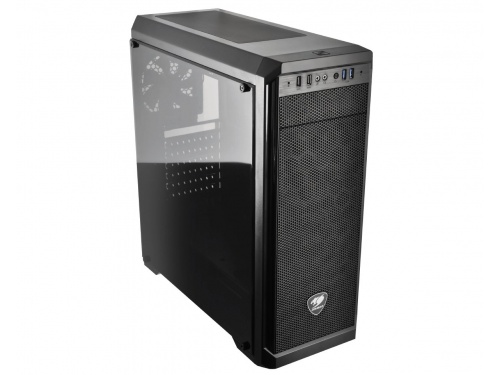

Elegant and Functional Mid-Tower
The MX330 mid-tower case is the new edition to the MX Series in COUGAR?s product line. It has an elegant look, functional design, and durable construction. All while saving you hard-earned for money. With full transparent acrylic window, MX330 brings you a stylish gaming case and brilliant inner layout.
Extreme Flexibility
MX330 has 7 PCI slots for supporting up to 350mm multiple graphics cards which allows you to install all the computing power you need. You have the ability to host up to two 2.5? SSD and two 3.5? HDD for all your storage needs.
Specifications
Model Name
- MX330
Case Form Factor
- Mid-Tower
Dimension (WxHxD)
- 427mm(L)x195mm(W)x473mm(H) 7"x 18.6" x 16.8"
Motherboard Support
- Mini-ITX / Micro ATX / ATX
5.25" Drive Bay
- 1
3.5" Drive Bay
- 2
2.5" Drive Bay
- 2
I/O Panel
- USB3.0 x 2 / USB2.0 x 2 / Mic x 1 / Audio x 1
Total Fan
- 5 max.
Cooling System
Front
- 120mm x 2
Top
- 120mm x 2
Rear
- 120mm x 1
Bottom
- None
Side
- None
Water cooling support
Front
- 240mm
Top
- 120mm
Rear
- 120mm x 1
Bottom
- None
Side
- None
Fan Pre-installed
Front
- None
Rear
- 120mm x 1
Cable Management
- Yes
Expansion slots
- 7
Max. Graphic Cards Length
- 350mm 12.8"
Max. CPU Cooler Height
- 155mm 6.1"
Transparent side panel
- Left side panel
PSU
- Standard ATX PS/2
