COUGAR GEX 650watt FULL MODULAR ATX PSU 80Plus GOLD psCGgex_650

tweet_button COUGAR GEX 650watt FULL MODULAR ATX PSU 80Plus GOLD - GameDude Computers
COUGAR GEX 650watt FULL MODULAR ATX PSU 80Plus GOLD
CLEARANCE
gex-12gex-01-1gex-03-1gex-13-1
RRP: $139.00
Our price: $112.00 each

Brand: COUGARCOUGAR

16Efficiency

GEX features a highly efficient design that surpasses the 80Plus Gold standard, to help you save money on your electricity bill.
product-section-01 COUGAR GEX 650watt FULL MODULAR ATX PSU 80Plus GOLD - GameDude Computers

Extreme Cooling System

Using COUGAR’s exclusive 120 mm silent fan, the advanced frame increase the concentration of air-flow and its fan curvature has been fine-tuned to reduce vibration at any loads.

product-section-02-3 COUGAR GEX 650watt FULL MODULAR ATX PSU 80Plus GOLD - GameDude Computers
product-section-01_14 COUGAR GEX 650watt FULL MODULAR ATX PSU 80Plus GOLD - GameDude Computers
product-section-01_4-gex COUGAR GEX 650watt FULL MODULAR ATX PSU 80Plus GOLD - GameDude Computers

Durability

Firstly, GEX has been designed and thoroughly tested to perform optimally in 40ºC working temperature environments.
product-section-01_07 COUGAR GEX 650watt FULL MODULAR ATX PSU 80Plus GOLD - GameDude Computers
Second, it includes 105°C Japanese capacitors for main and standby power to ensure keep providing computer with stable electrical supply.
product-section-01_2 COUGAR GEX 650watt FULL MODULAR ATX PSU 80Plus GOLD - GameDude Computers

Stability

GEX’s LLC, DC-DC and Tri-Sense(3.3V, 5V, and 12V) design has been created to provide high-quality outputs, with an extremely tight 3% voltage regulation to deliver a stabler operation.
product-section-01_09-3 COUGAR GEX 650watt FULL MODULAR ATX PSU 80Plus GOLD - GameDude Computers

Compact

product-section-05_02 COUGAR GEX 650watt FULL MODULAR ATX PSU 80Plus GOLD - GameDude Computers

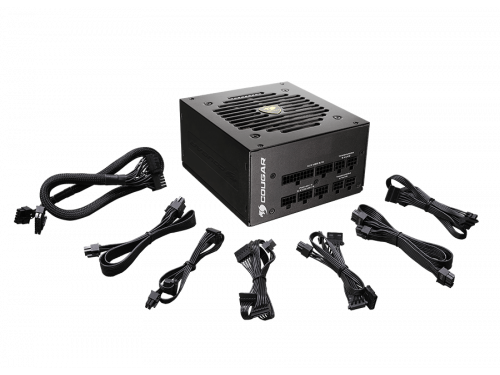

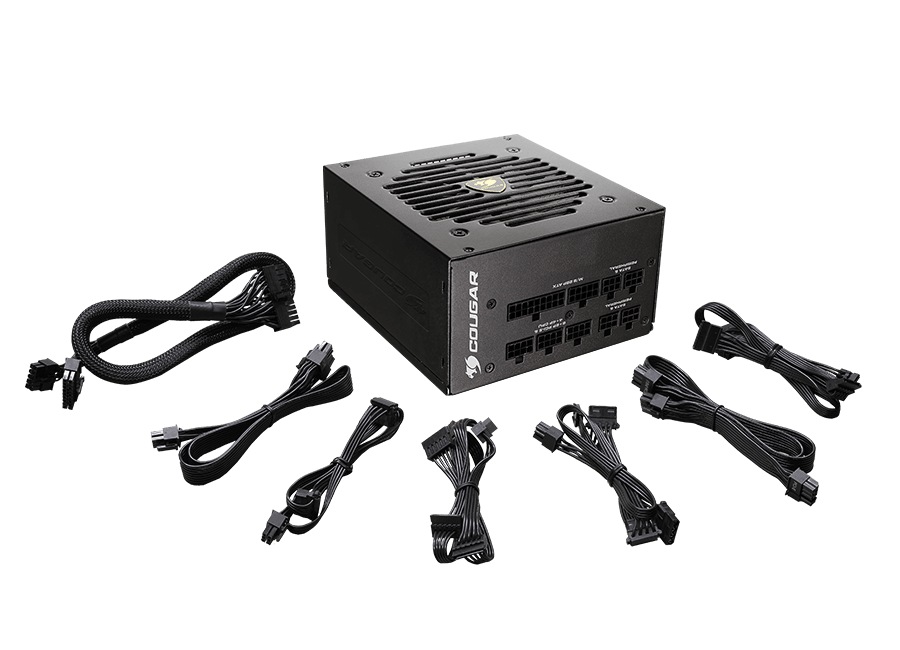

  • Flat and long modular cables for better airflow and a tidier case
  • 100% external cable management: get less cable clutter and a cleaner build!
product-section-03-2 COUGAR GEX 650watt FULL MODULAR ATX PSU 80Plus GOLD - GameDude Computers
product-section-032 COUGAR GEX 650watt FULL MODULAR ATX PSU 80Plus GOLD - GameDude Computers

Features

80 PLUS Gold Certified

Up to 91% efficiency power conversion to cut down your electricity bill

Fully Modular Power Supply Unit

Connect only the cables you need for less clutter and better airflow

COUGAR HDB Fan

Hydro Dynamic Bearing Fan: Extended durability and lower noise levels

Superior fan Curve Tuning

Advanced technology for noise minimization

Flawless Operation at 40°C

Powerful performance at 40°C ambient temperature

Ultra-stable Voltage Outputs

DC to DC technology for enhanced voltage stability

Dimension

160 x 150 x 86 (mm)

Strong Safeguards : OCP, OPP, OVP, UVP, SCP & OTP

Maximum safety for your key system components



Specifications

Model Name AC Input DC output
+3.3V +5V +12V -12V +5Vsb Total
GEX650 AC100-240V
50-60Hz 10-5A
18A 20A 54.1A 0.3A 3A 650W
100W 649.2W
GEX750 AC100-240V
50-60Hz 10-5A
18A 20A 62.5A 0.3A 3A 750W
100W 750W
GEX850 AC100-240V
50-60Hz 12-6A
20A 20A 70.8A 0.3A 3A 850W
120W 849.6W
Connector Main CPU Peripherals S-ATA PCI-E
Pin 24(20+4) Pins 8(4+4) Pins 4 Pins 5 Pins 8(6+2) Pins
GEX650 1 2 6 8 4
GEX750 1 2 6 8 4
GEX850 1 2 6 8 6
gex-cable-0413 COUGAR GEX 650watt FULL MODULAR ATX PSU 80Plus GOLD - GameDude Computers


Packing Data

  GEX650 GEX750 GEX850
Product Number (P/N) 31GE065002P01 31GE075002P01 31GE085001P01
EAN CODE 4710483770210 4710483770227 4710483770234
UPC CODE 192554001722 192554001739 192554001746
JAN CODE 4541995034299 4541995034305 4541995034312
Individual W/O Packaging
Weight (N.Weight)
1.46 (Kg) 1.56 (Kg)
Individual Packaging
Weight (G.Weight)
2.58 (Kg) 2.76 (Kg)
Individual Size W/O
Packaging (LxWxH)
160 x 150 x 86 (mm)
Individual Packaging
Size (LxWxH)
331 X 229 x 107 (mm)


Protection

UVP (Under Voltage Protection)

If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.

OCP (Overcurrent Protection)

If the current on a single line is higher than indicated, the PSU automatically switches off.

SCP (Short-Circuit Protection)

In the case of a short-circuit, this feature prevents damage to the core components of the PSU and its System components.

OVP (Over Voltage Protection)

If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.

OTP (Over Temperature Protection)

If the temperature gets too high, the PSU automatically switches off.

OPP (Over Power Protection)

If the system is oversized and requires more power from the PSU than it can provide, this protection function is activated.

Safety Standards

safety_gex COUGAR GEX 650watt FULL MODULAR ATX PSU 80Plus GOLD - GameDude Computers
