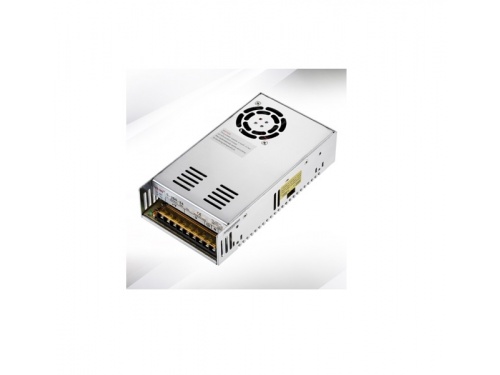

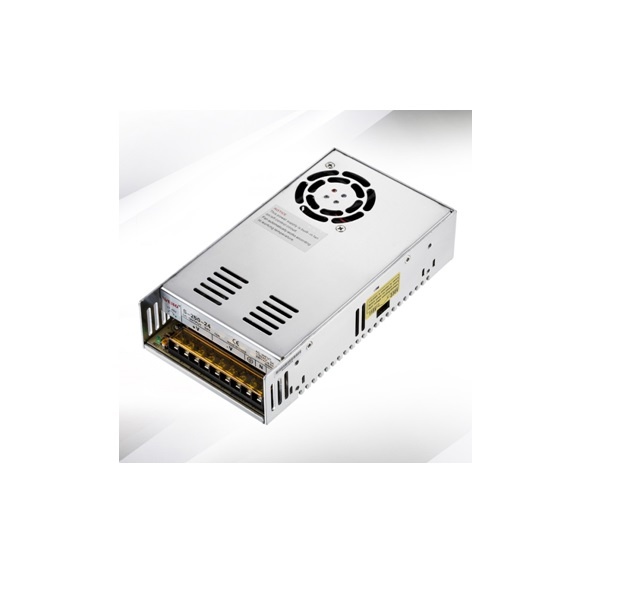

CAMERA System PSU S-250-12 12V 20A 240W Switching Power Supply Transformer NBC-12V20A psBE12v_240watt

tweet_button CAMERA System PSU S-250-12 12V 20A 240W Switching Power Supply Transformer NBC-12V20A - GameDude Computers
CAMERA System PSU S-250-12 12V 20A 240W Switching Power Supply Transformer NBC-12V20A
CLEARANCE
RRP: $59.00
Our price: $39.00 each


Specification: AC input voltage range: 85-264VAC 47-63Hz
Input current: 115V /2A, 230V/1A
Output: 12V/ 0-20A
AC inrush current: Cold-start current 20A/115A 40A/230V
Leakage current: <1MA/240VAC
Dc adjustable range: +/_10% rated output voltage
Overload protection: 105%-150% hiccup mode, auto-recovery
Over-voltage protection: 115%-135% cut off the output, auto-recovery
Setup, rise, hold up time: 200ms, 50ms, 20ms.
Load regulation: +/_ 1%
Working temperature: -10?~+60?, 20%~90RH
