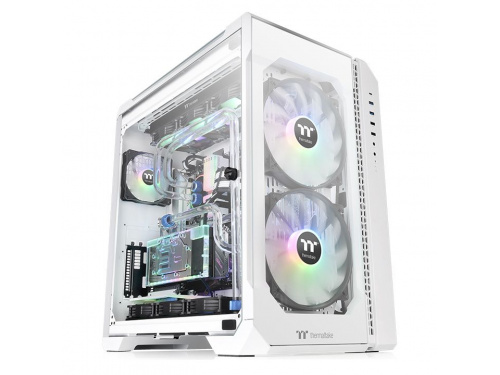

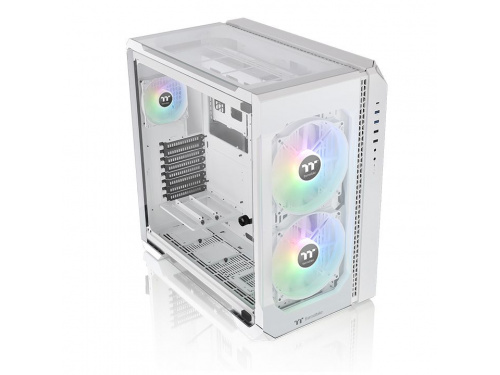

The Thermaltake View 51 TG Snow ARGB is a specially constructed full tower case from the View Series chassis which comes with two preinstalled white 200mm 5V ARGB fans at the front, one preinstalled white 120mm 5V ARGB fan at the rear, and can support motherboards up to E-ATX (up to 10.5'' wide).
Thermaltake View 51 Tempered Glass Snow ARGB Edition Full Tower Chassis

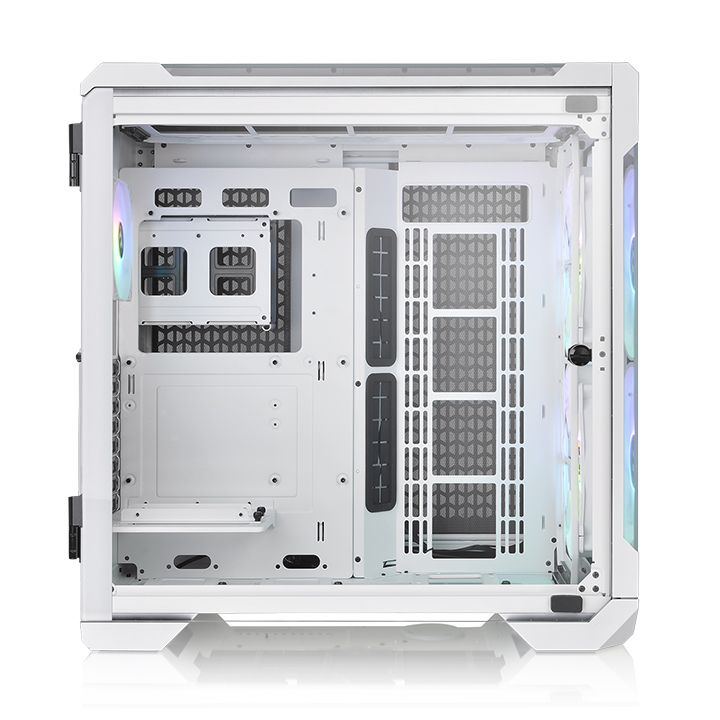

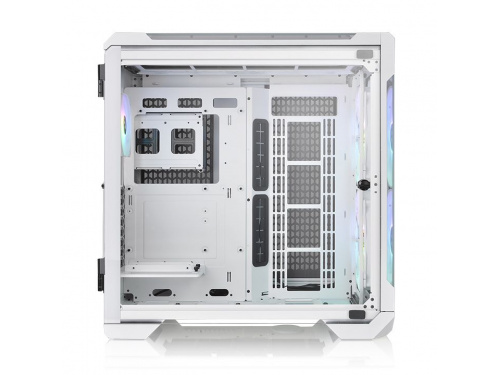

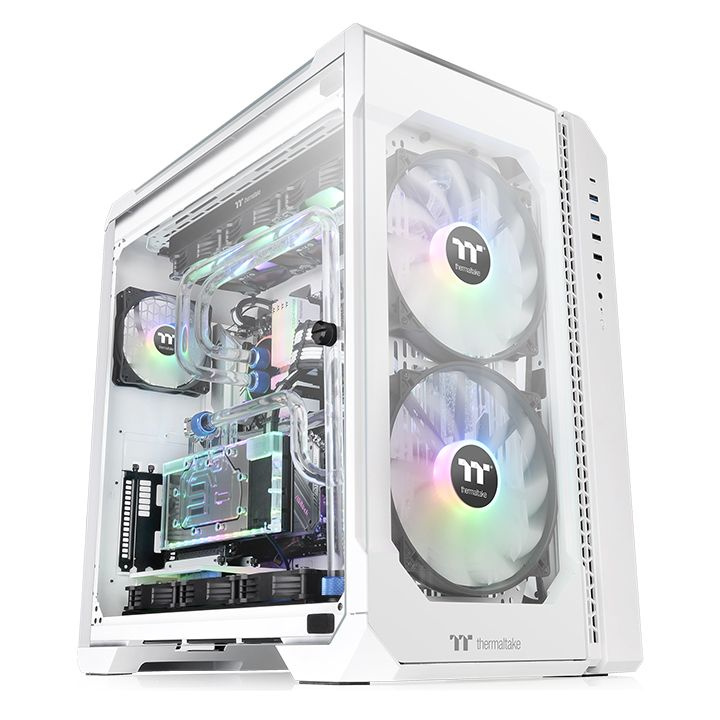

Designed to expand the legacy of the View Series lineup, the View 51 Tempered Glass Snow ARGB Edition full-tower chassis features two 200mm 5V ARGB fans at the front and one 120mm 5V ARGB fan at the rear providing outstanding ventilation. This elegant chassis utilizes swing-out side panels, and is enclosed with 4mm tempered glass panels on three sides for users to demonstrate their DIY handwork and showcase their internal components. The I/O ports are positioned vertically on the right side of the front panel with tempered glass windows on its left. Different from other View Series chassis’, the View 51 TG Snow ARGB can hold up to two 200mm fans at the front and on the top. With support for the latest PC hardware, the View 51 TG Snow ARGB Edition is not only fascinating in appearance but comes with endless possibilities for PC lovers.
We’ve Got You Covered

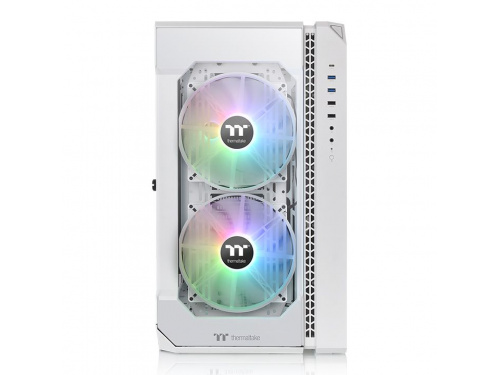

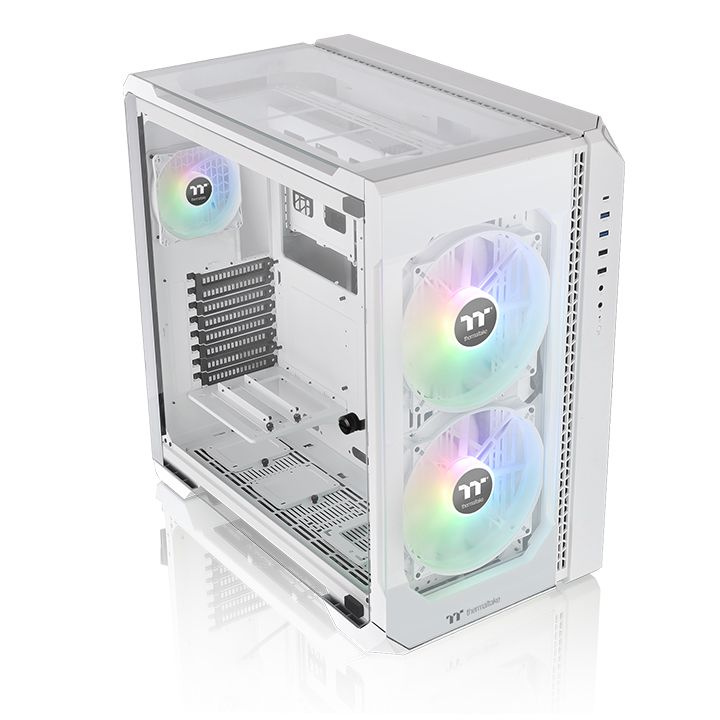

The View 51 TG Snow ARGB comes with two preinstalled white 200mm 5V ARGB fans at the front and one white 120mm 5V ARGB fan at the rear. The fans feature 9 addressable LEDs, hydraulic bearings for near silent operation and 16.8 million color illumination. This helps guarantee high airflow and access to tons of awesome lighting modes. The fans can be controlled by using a simple interface RGB button built into the I/O panel or utilizing your motherboards software, allowing you to cycle through seven different lighting modes and a range of different color options.
Dust Reduction

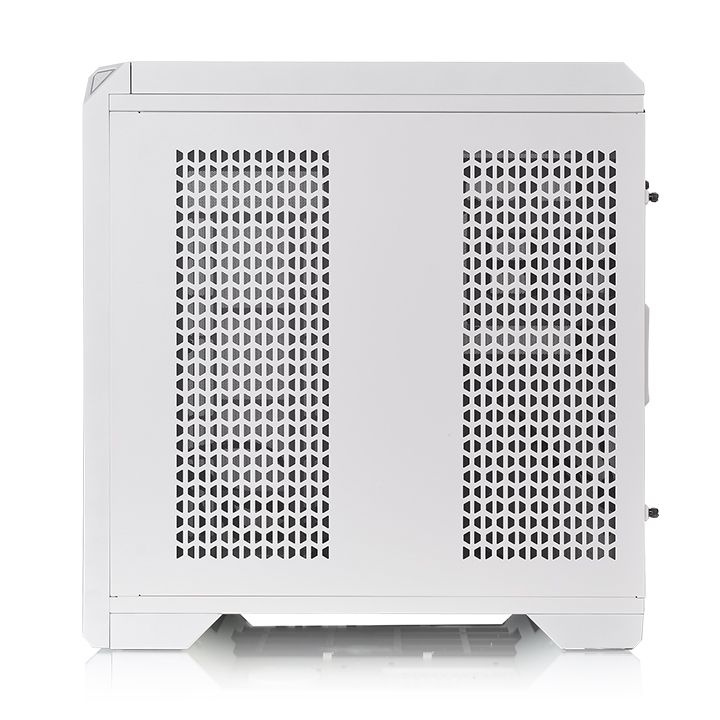

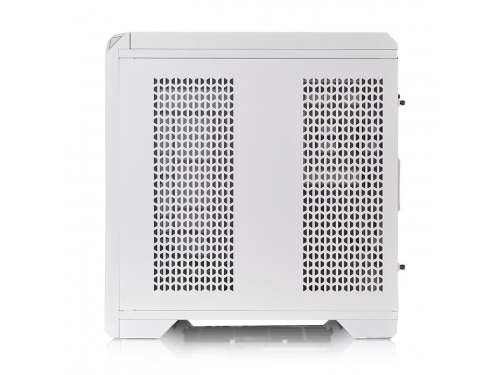

Two magnetic super fine fan filters with excellent protection and reduction against dirt on the right side and another easily removable filter at the bottom.
SPECIFICATIONS
P/N
- CA-1Q6-00M6WN-00
Series
- View
Model
- View 51 TG Snow
CASE TYPE
- Middle Tower
Dimension (H x W x D)
- 550 x 315 x 525 mm
- (21.65 x 12.4 x 20.67 inch)
Net Weight
- 14.95 kg / 32.96 lb
SIDE PANEL
- 3 x Tempered Glass (4mm thickness)
Color
- Exterior & Interior : White
MATERIAL
- SPCC
COOLING SYSTEM
- Front (intake): 2 x 200 x 200 x 30mm Addressable RGB fan (Fixed 600rpm, 24dBA)

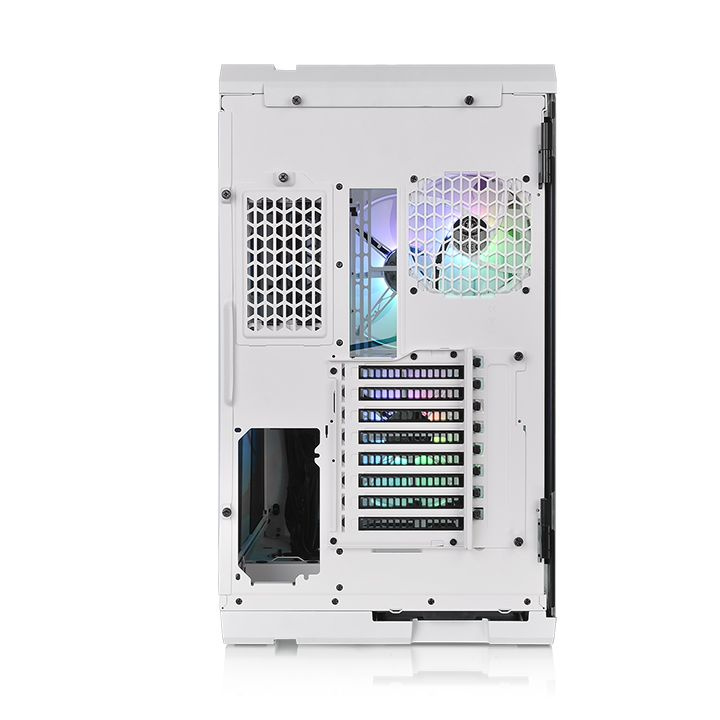

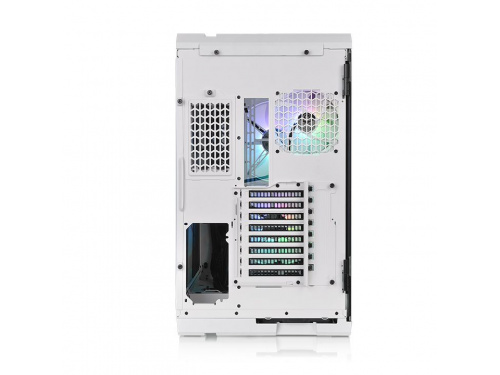

- Rear (exhaust): 1 x 120 x 120 x 25mm Addressable RGB fan (Fixed 1000rpm, 27.2 dBA)
Drive Bays
- Hidden: 2 x 2.5’’ (With HDD Bracket); 2 x 3.5’’ or 2.5’’ (With HDD Cage)
EXPANSION SLOTS
- 8
MOTHERBOARDS
- 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
- 12” x 9.6” (ATX), 12” x 10.5” (E-ATX)
I/O Port
- 1 x Type-C, 2 x USB 2.0, 2 x USB 3.0, 1 x HD Audio, 1 x RGB Buttom
PSU
- Standard PS2 PSU (optional)
FAN SUPPORT
Front:
- 2 x 200mm or 1 x 200mm
- 3 x 140mm or 2 x 140mm or 1 x 140mm
- 3 x 120mm or 2 x 120mm or 1 x 120mm
Top:
- 2 x 200mm or 1 x 200mm
- 3 x 140mm or 2 x 140mm or 1 x 140mm
- 3 x 120mm or 2 x 120mm or 1 x 120mm
Rear:
- 1 x 120mm ,
Right:
- 3 x 120mm or 2 x 120mm or 1 x 120mm
- 2 x 140mm or 1 x 140mm
Bottom:
- 3 x 120mm or 2 x 120mm or 1 x 120mm
RADIATOR SUPPORT
Front:
- 1 x 360mm or 1 x 240mm or 1 x 120mm
- 1 x 280mm or 1 x 140mm
Top:
- 1 x 360mm or 1 x 240mm or 1 x 120mm
- 1 x 280mm or 1 x 140mm
Right:
- 1 x 360mm or 1 x 240mm or 1 x 120mm
- 1 x 280mm or 1 x 140mm
Bottom:
- 1 x 360mm or 1 x 240mm or 1 x 120mm
CLEARANCE
- CPU cooler height limitation: 175mm
- VGA length limitation: 300mm(With Water Pump)
- 440mm(Without Water Pump)
- PSU length limitation: 200mm
