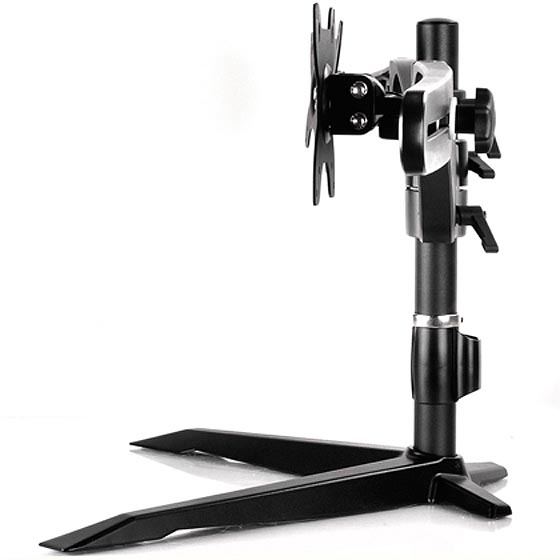

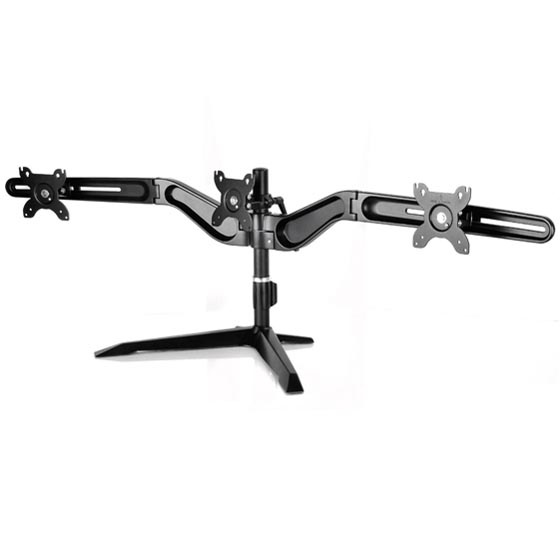

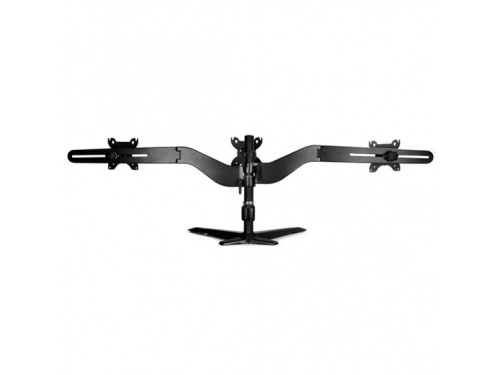

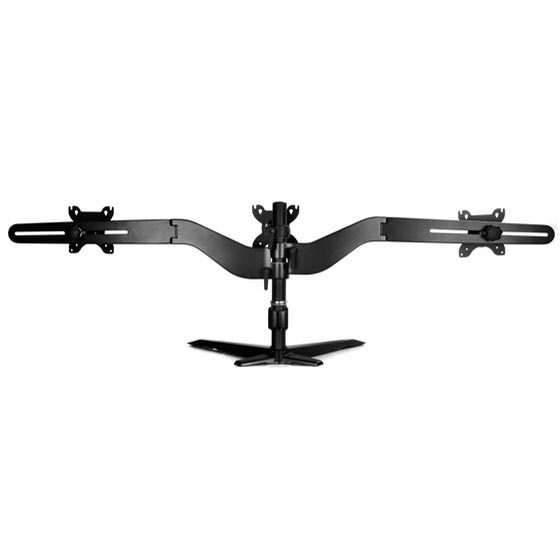

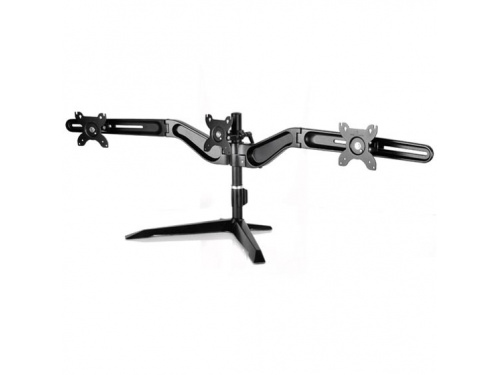

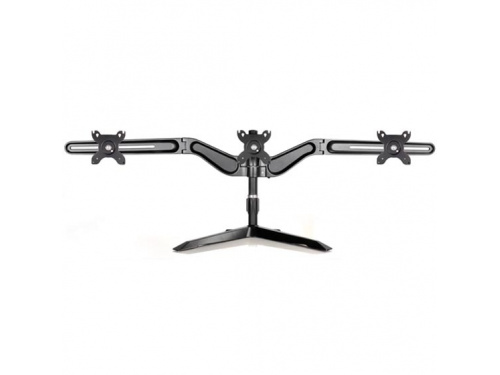

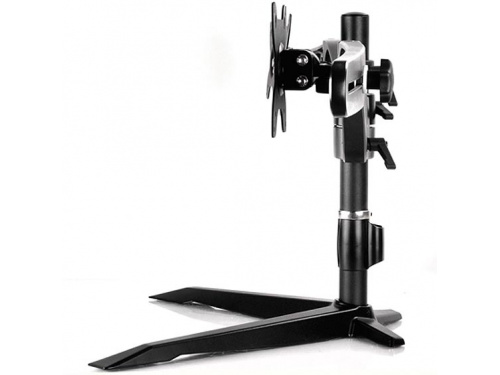

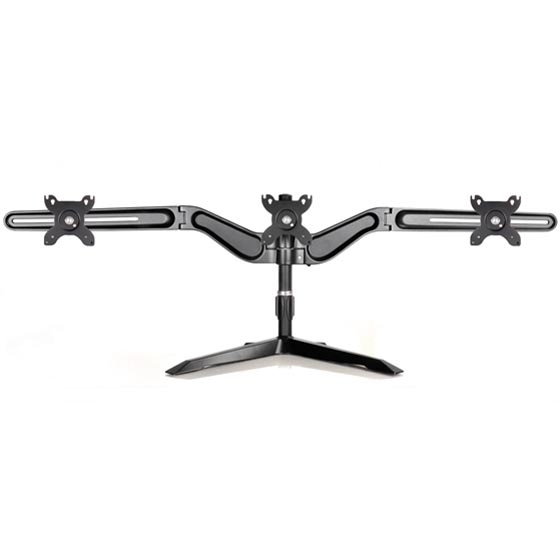

ARM31BS
￭ Smart torque spring ensures hassle-free adjustment
￭ Multiple adjustment including height and 90 degrees monitor rotation
￭ Aluminum construction
￭ Easy installation and cable management
￭ Meet VESA Mounting Interface Standard
SPECIFICATIONS
| Model No. |
SST-ARM31BS |
| Color |
Black |
| Material |
Steel / Aluminum alloy / Plastic |
| Max. wall mount hole pitch |
100 x 100 mm/ 75 x 75 mm (MIS-D 100 / MIS-D 75) |
| Support flat panel size |
≦24" |
| Screw Type |
M4 |
| Swivel |
±15° |
| Tilt |
±15° |
| Rotate(Pivot) |
360° |
| Support max. weight |
6Kg (13.2 lbs)/per monitor |
| Net weight |
4.68Kg(10.32 lbs) |
| Dimension |
1300mm (W) x 410mm (H) x 327mm (D)
51.18" (W) x 16.14" (H) x 12.87" (D) |
