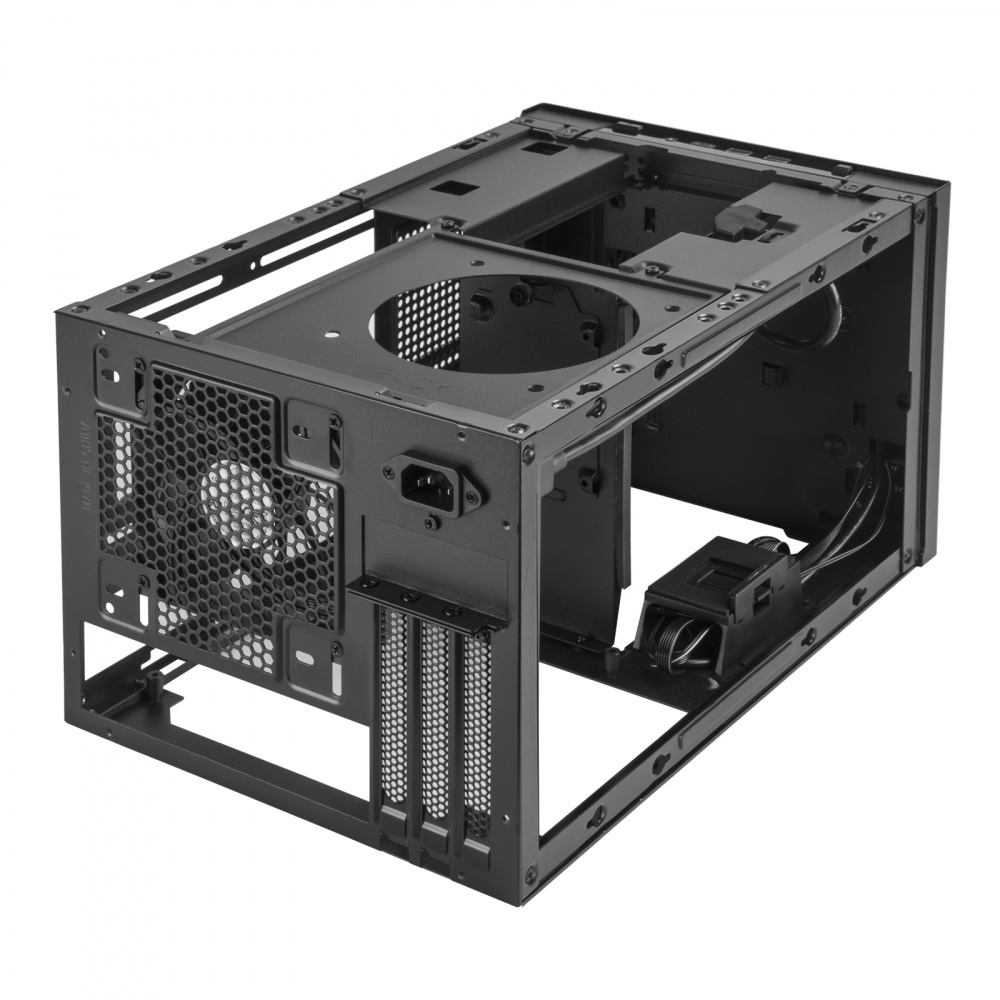

SUGO 15

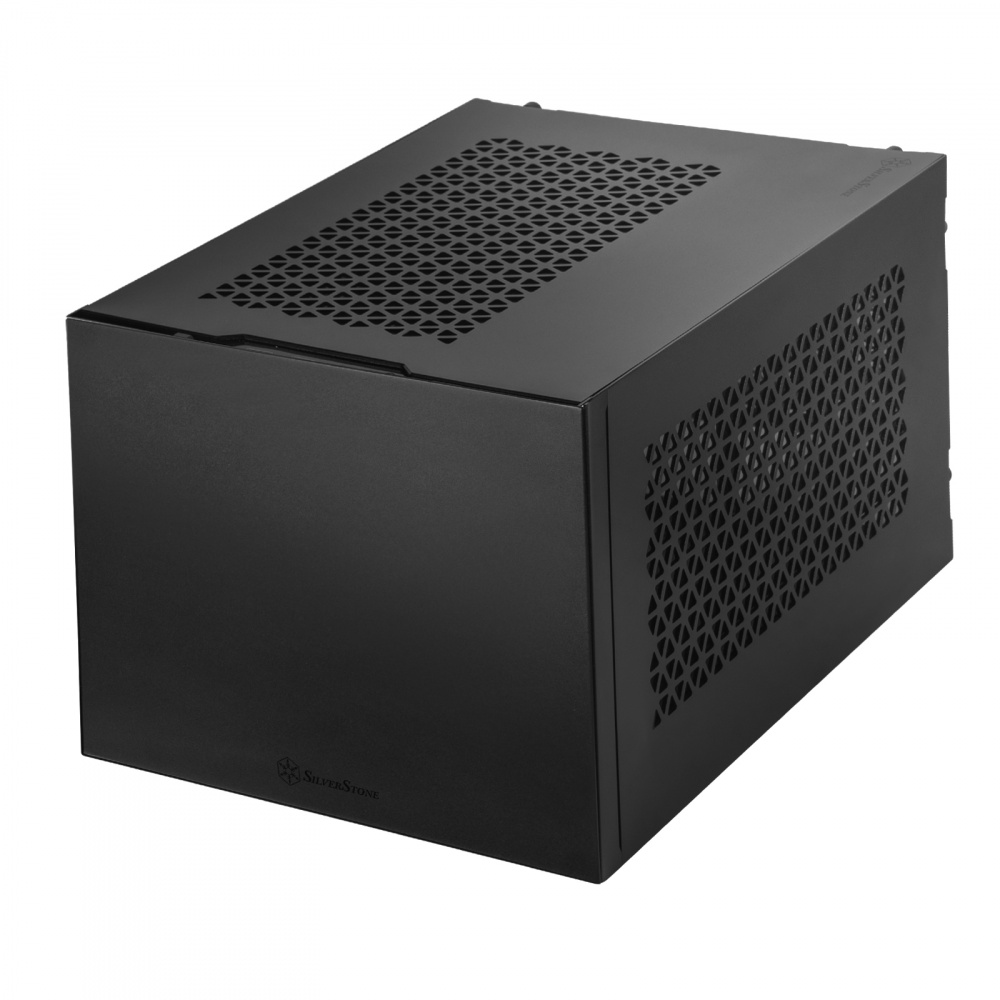

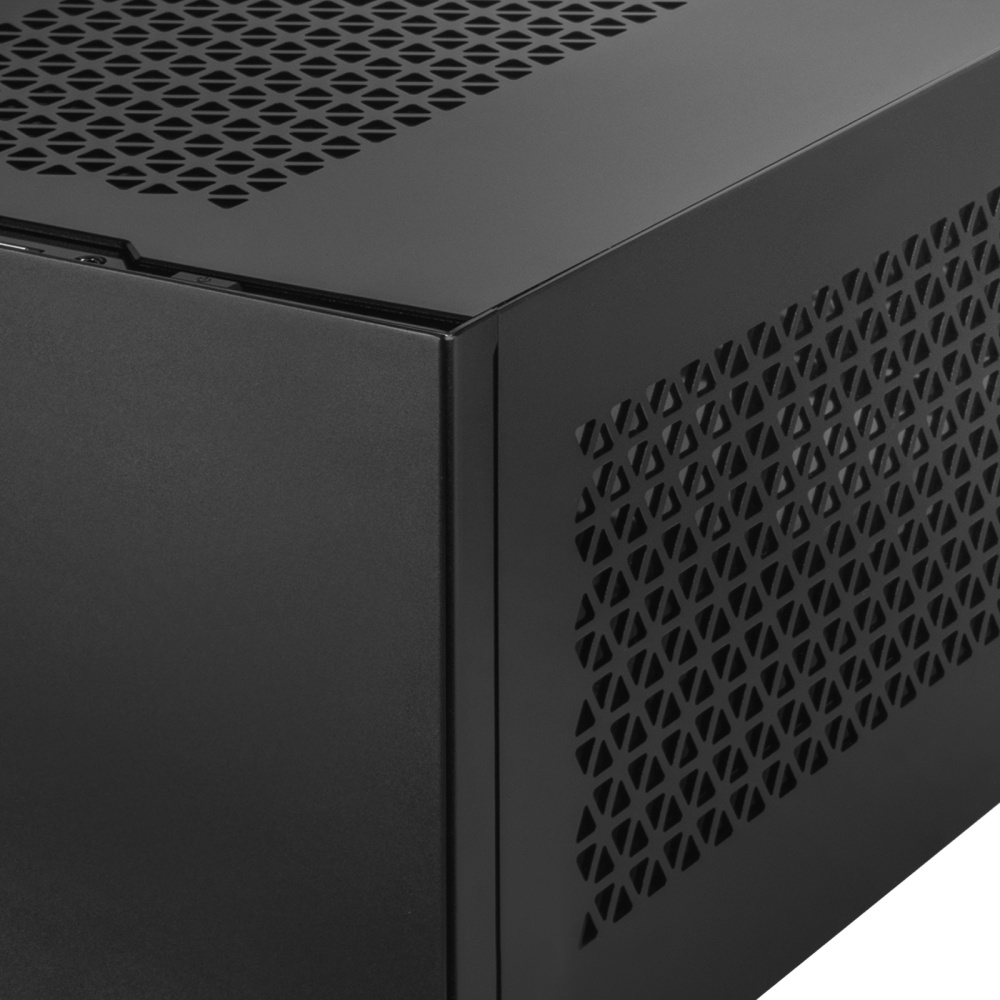

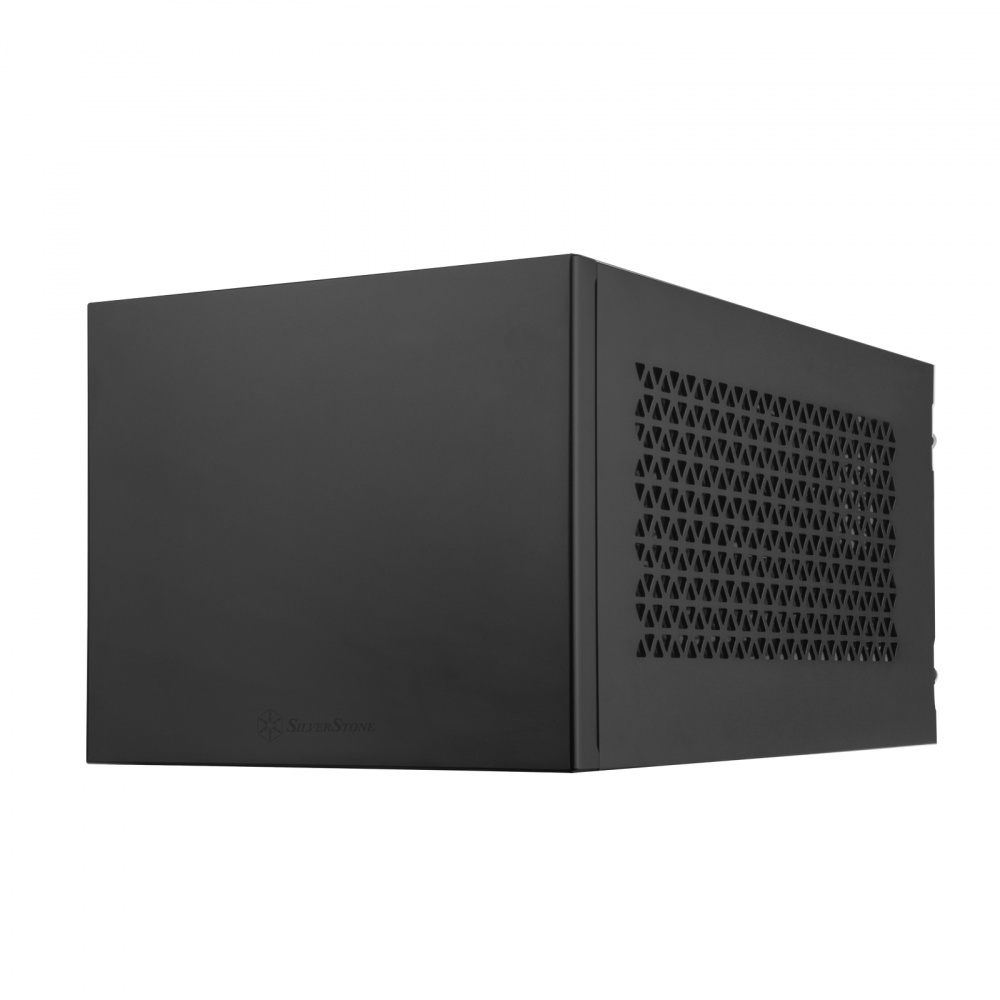

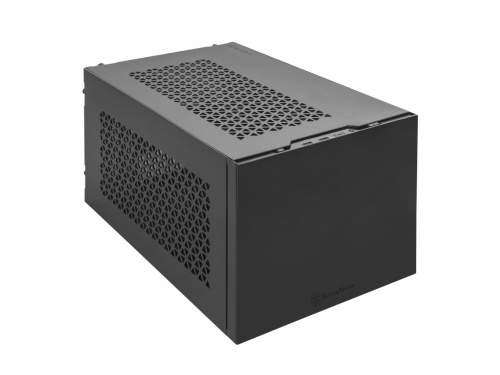

Mini-ITX cube chassis with aluminum exterior

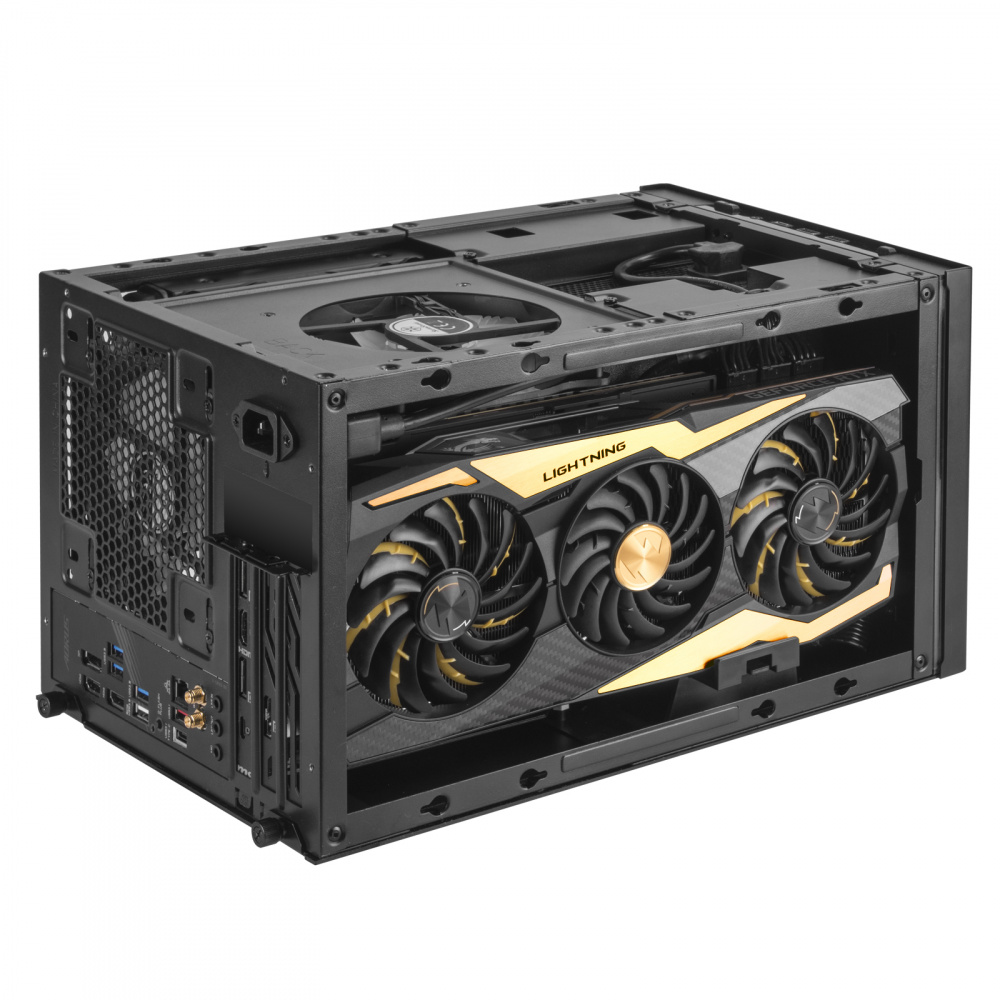

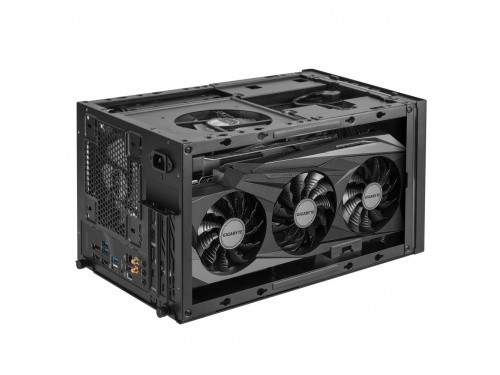

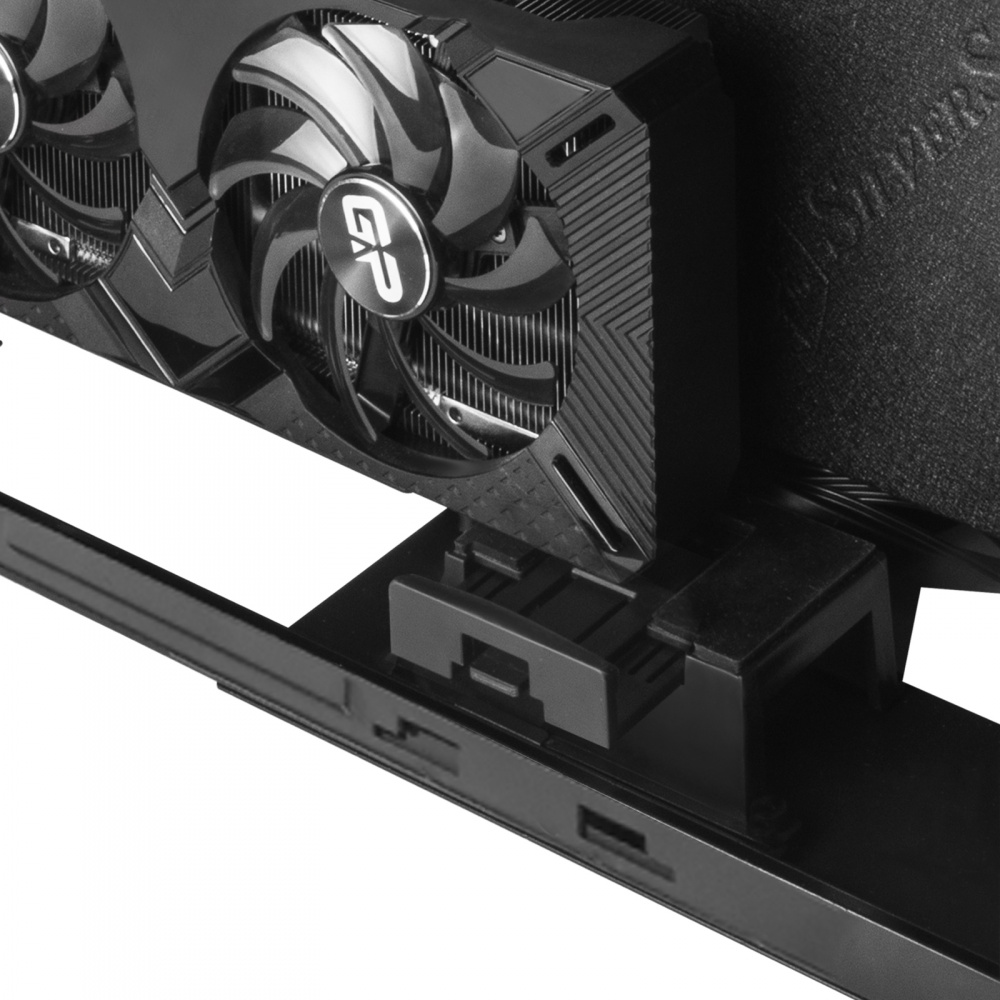

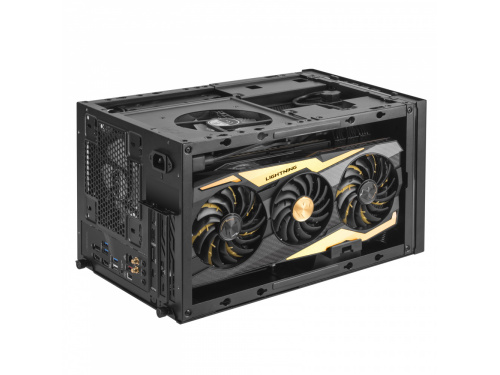

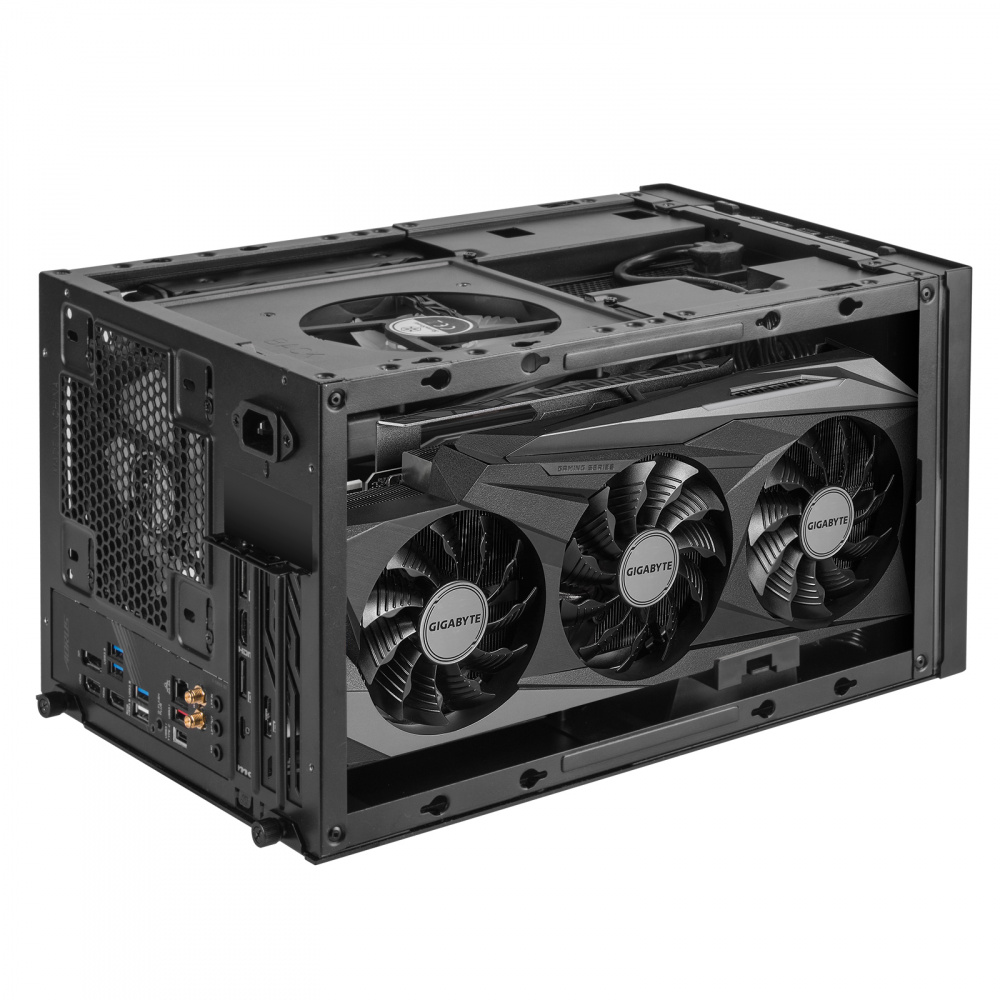

￭ Supports 3 slot full length graphics cards with adjustable graphics card holder
￭ Compatible with Mini-DTX / Mini-ITX motherboard & ATX PSU

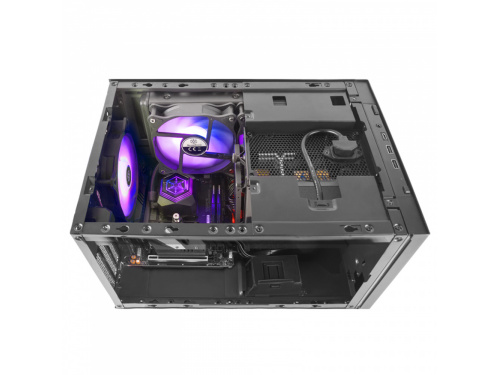

￭ Supports up to 240mm radiators

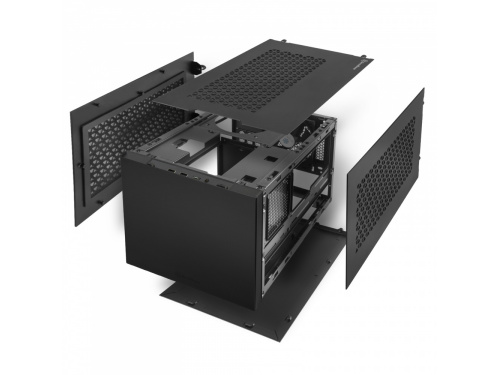

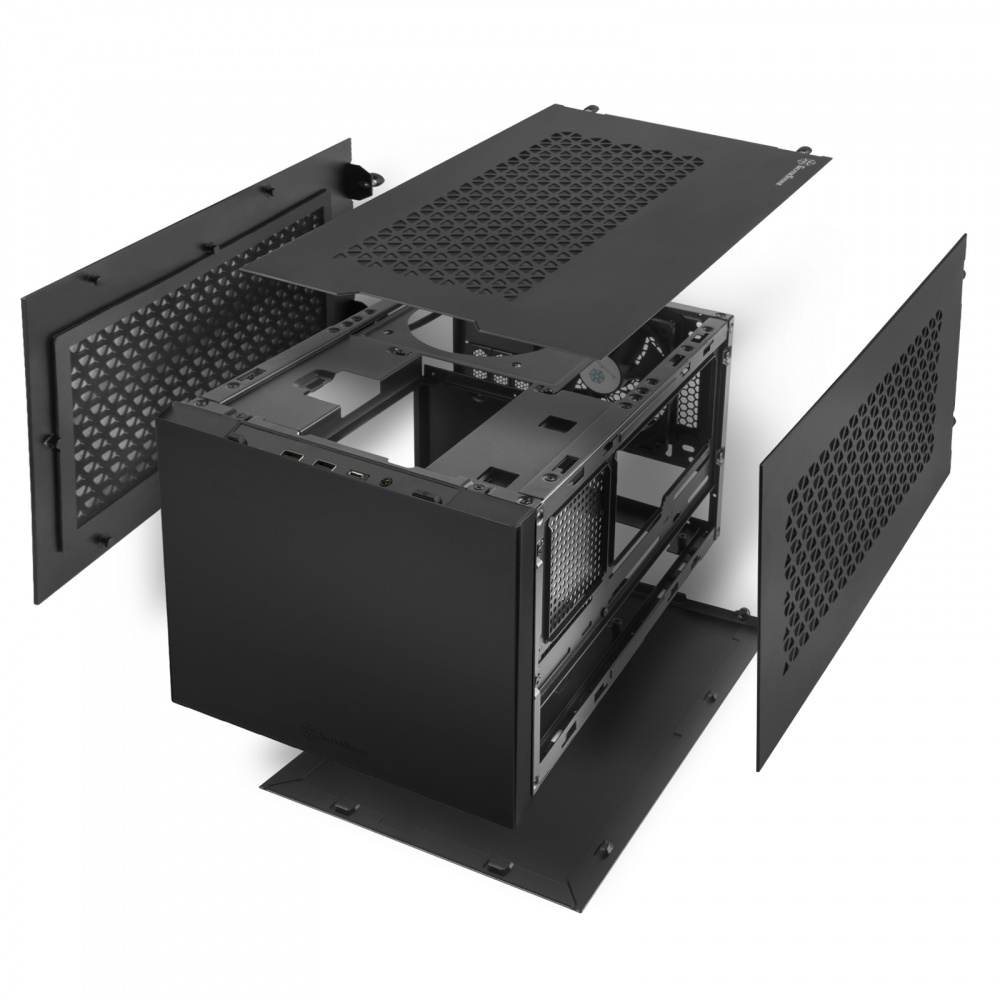

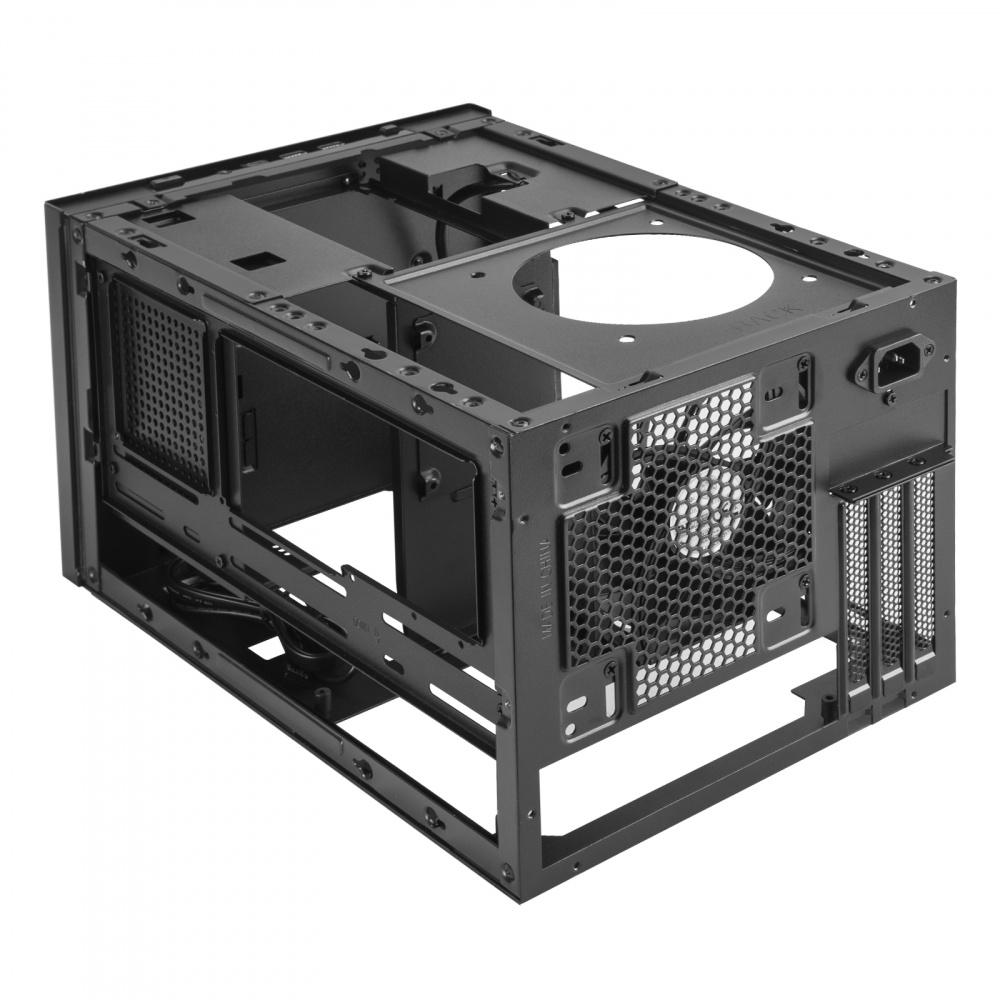

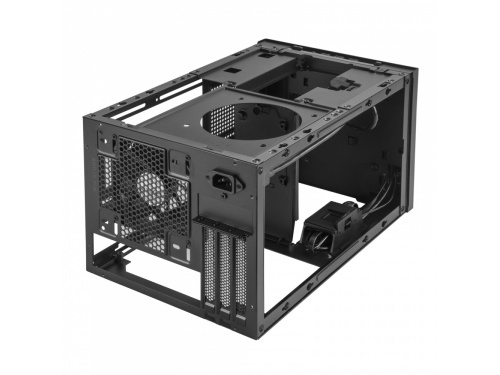

￭ Modular design with 4 removable captive thumbscrew panels (top, left, right, bottom)
￭ Different configurations support various storage components for 3.5" and 2.5"

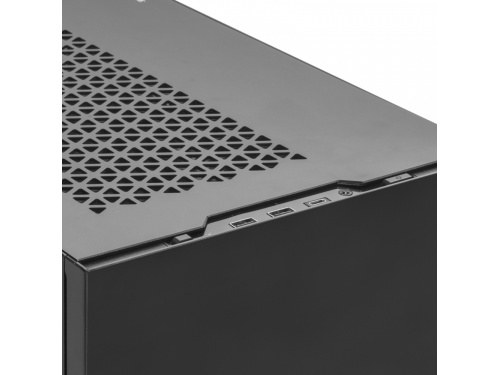

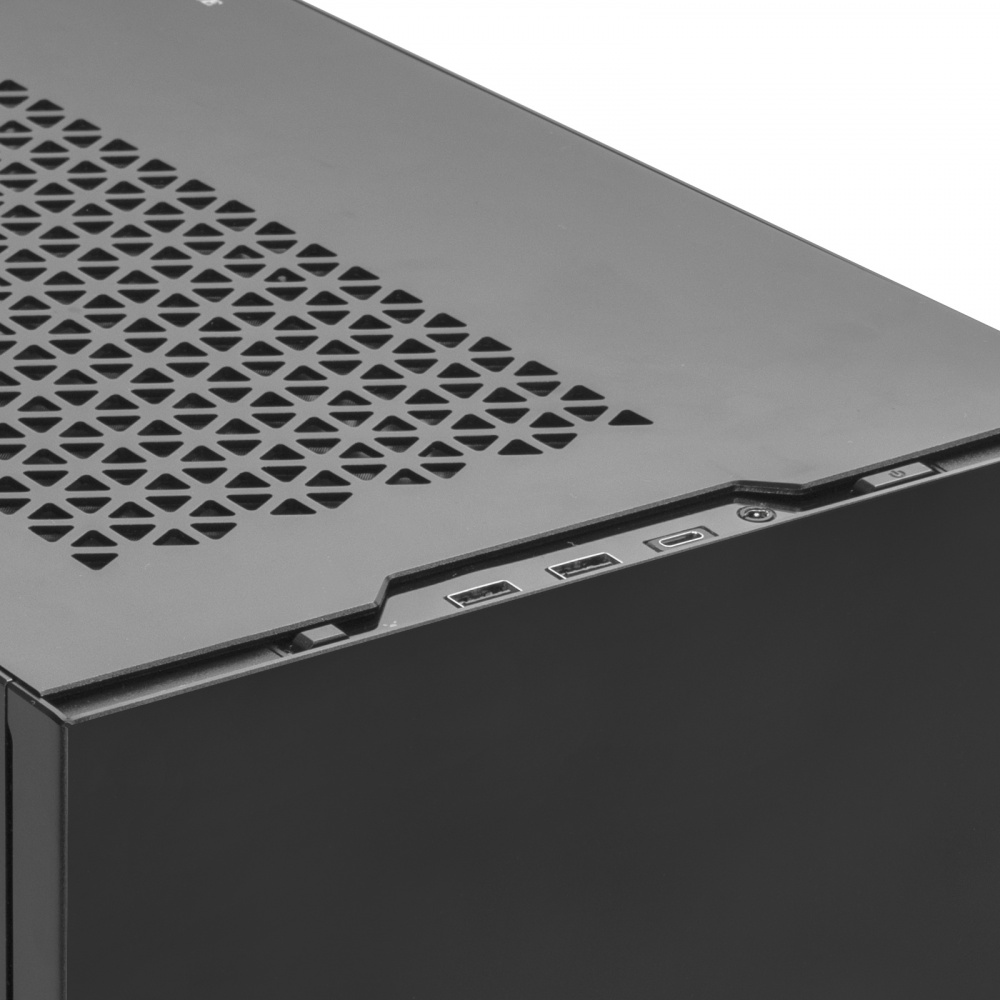

￭ Front I/O port includes: USB Type-C x 1, USB 3.0 x 2, combo audio x 1
SPECIFICATIONS
| Model No. |
SST-SG15B(black)
SST-SG15S(silver) |
| Material |
Aluminum exterior, steel body |
| Motherboard |
Mini-DTX, Mini-ITX |
| Drive bay |
External |
-- |
| Internal |
3.5" x 2 (without radiator installed)
2.5" x 3 |
| Cooling system |
Front |
-- |

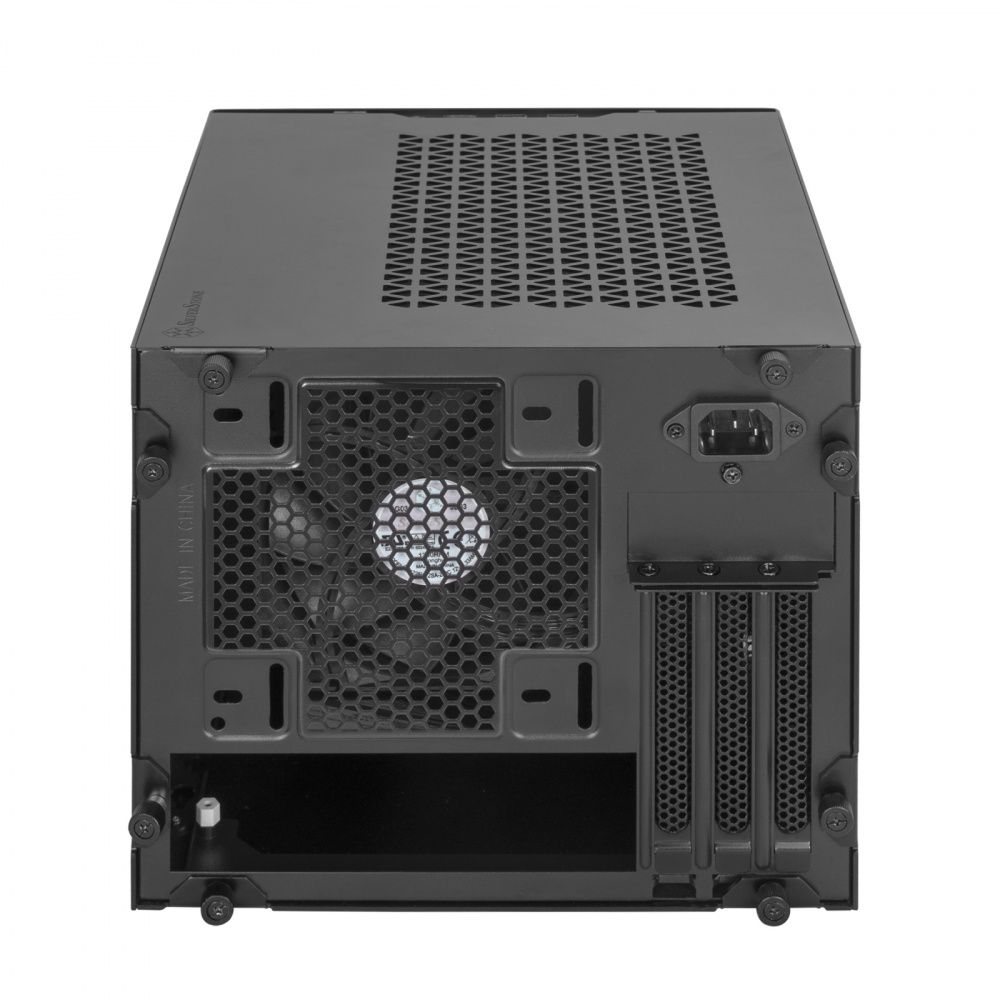

| Rear |
120mm / 140mm x 1 (120mm black fan x 1 included) |
| Side |
120mm / 140mm x 2 |
| Top |
-- |
| Bottom |
-- |
| Internal |
-- |
| Radiator support |
Front |
-- |
| Rear |
120mm |
| Side |
120mm / 240mm |
| Bottom |
-- |
| Expansion slot |
3 |
| Front I/O port |
USB Type-C x 1
USB 3.0 x 2
Combo audio x 1 |
| Power supply |
Standard PS2(ATX) |
| Limitation of VGA card |
Length: 330mm
Width: 148mm |
| Limitation of CPU cooler |

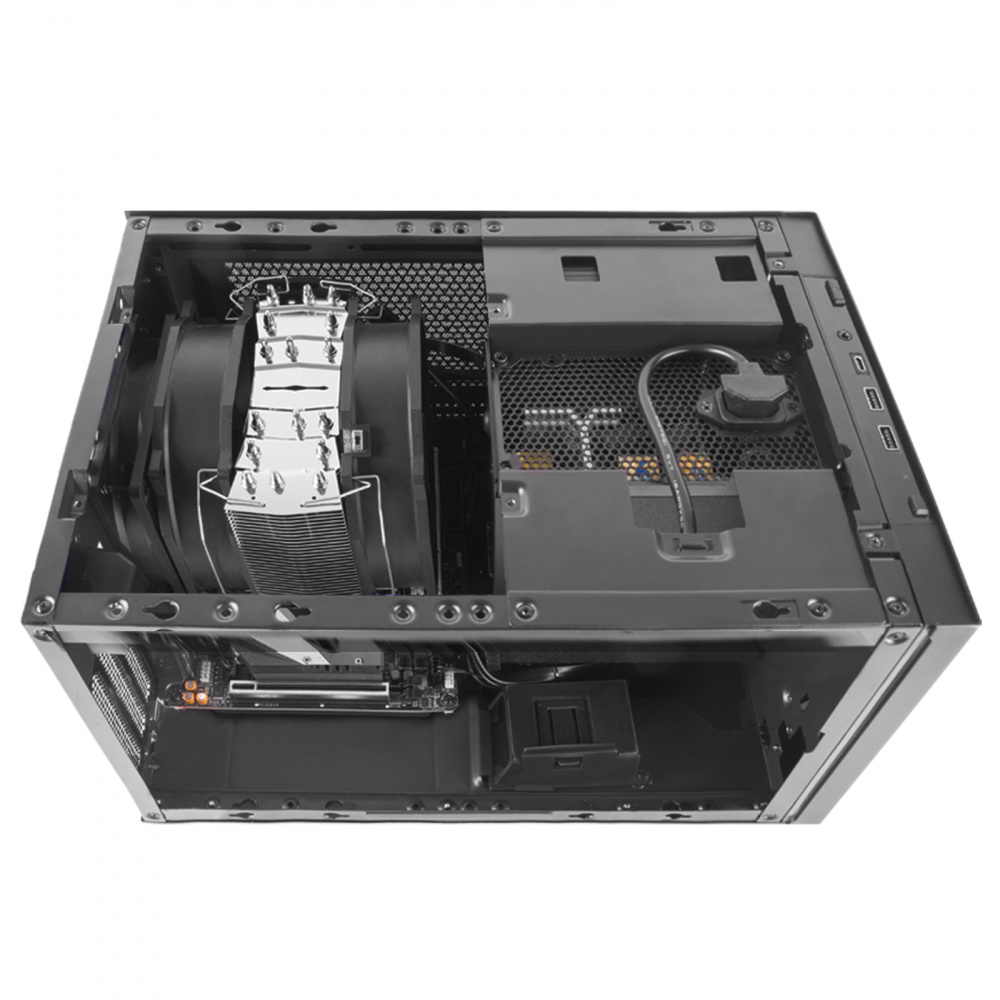

Air cooler: 182mm (without top fan)
240mm AIO water block: 55mm |
| Limitation of PSU |
150mm |
| Net weight |
4.25 kg |
| Dimension |
247mm (W) x 211mm (H) x 366mm (D), 19.07 liters
9.72" (W) x 8.31" (H) x 14.41" (D), 19.07 liters |
