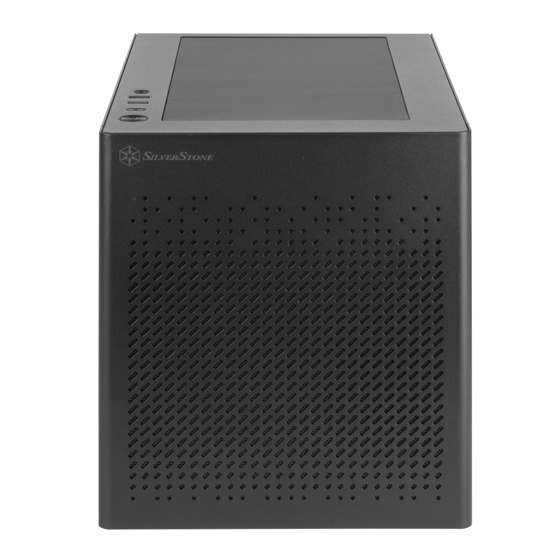

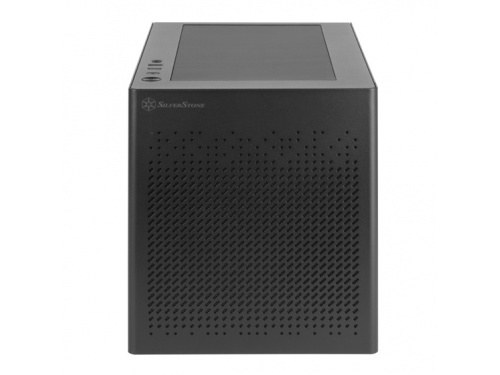

SUGO 16

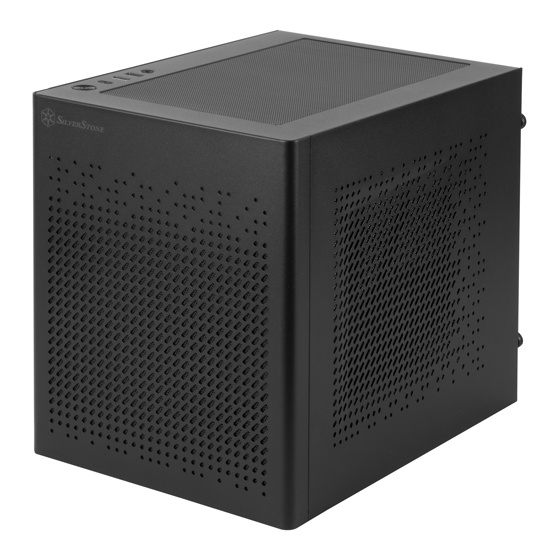

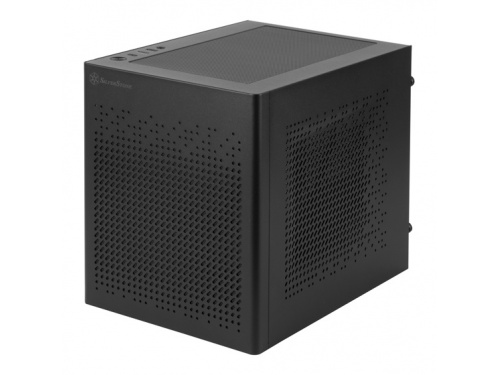

Mini-ITX cube chassis with all steel construction
￭ Supports standard length graphics / expansion cards of up to 275mm
￭ Compatible with Mini-DTX / Mini-ITX motherboard & ATX PSU
￭ Supports 120mm All-In-One liquid cooling radiator

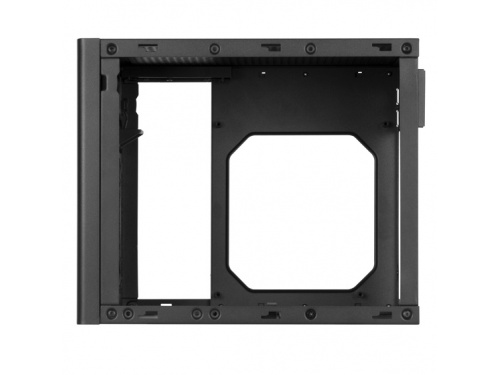

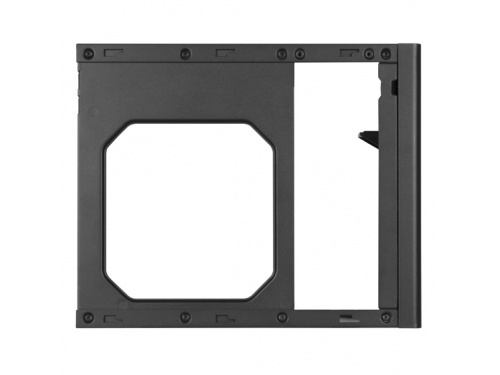

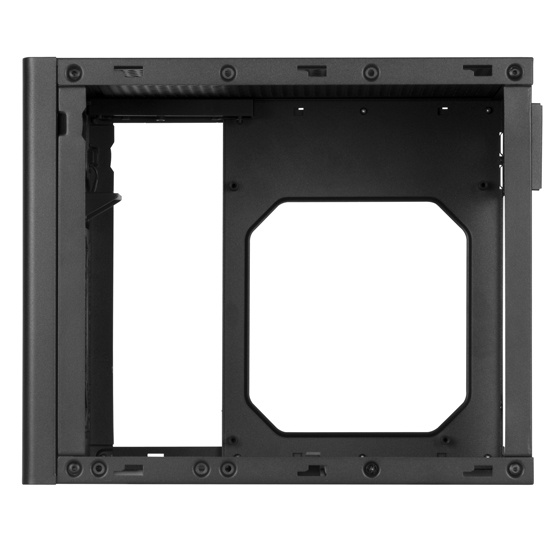

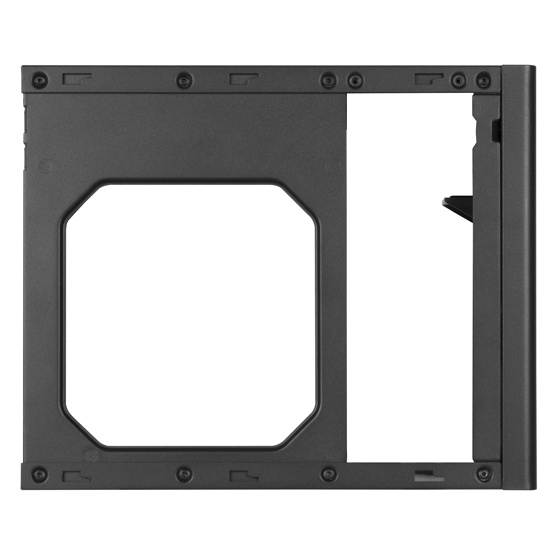

￭ CPU cooler opening on motherboard back plate for convenient assembly and upgrade

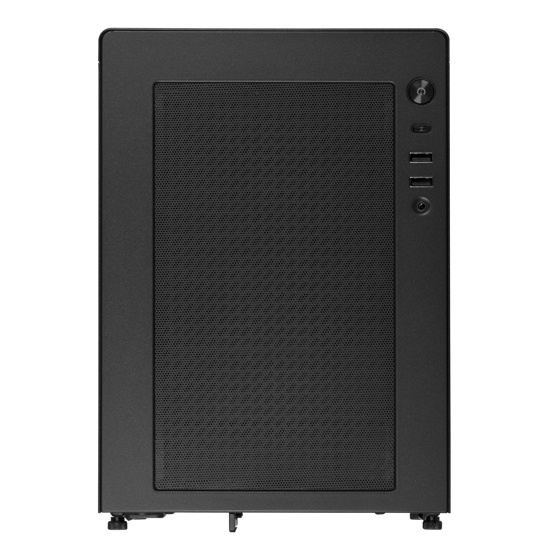

￭ Front I/O port includes 2 x USB 3.0, combo audio x 1
SPECIFICATIONS
| Model No. |
SST-SG16B (Black)
SST-SG16W (White) |
| Material |
Steel |
| Motherboard |
Mini-DTX, Mini-ITX |
| Drive bay |
External |
-- |
| Internal |
2.5" x 1
2.5" x 1 or 3.5" x 1 (Occupies front fan mount) |
| Cooling system |
Front |
80mm x 1 / 92mm x 1 / 120mm x 1
(120mm only allows SFX, SFX-L power supply installation) |
| Rear |
120mm x 1 |
| Side |
-- |
| Top |
-- |
| Bottom |
-- |
| Internal |
-- |
| Radiator support |
Front |
120mm (Can only install SFX, SFX-L power supply) |
| Rear |
120mm |
| Top |
-- |
| Bottom |
-- |
| Internal |
-- |

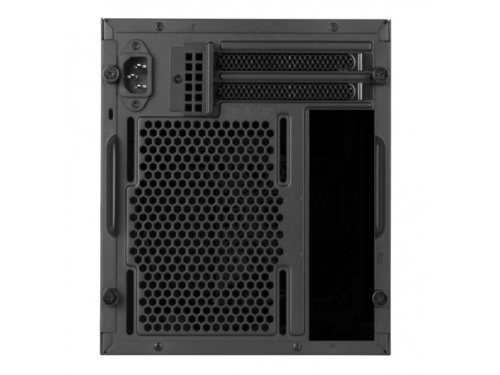

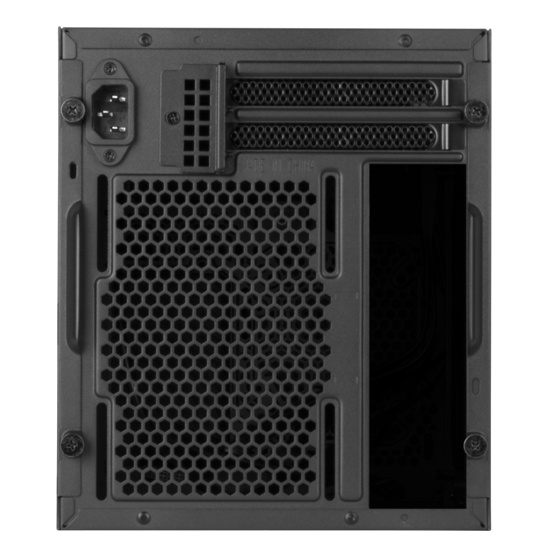

| Expansion slot |
2 |
| Front I/O port |
USB 3.0 x 2
Combo audio x 1 |
| Power supply |
Standard PS2(ATX) |
| Limitation of VGA card |
Length: 275mm
Width: 147mm |
| Limitation of CPU cooler |
Air cooler: 85mm ~ 172mm* |
| Limitation of PSU |
150mm ~ 220mm |
| Net weight |
2.66kg |
| Dimension |
200mm (W) x 232mm (H) x 280mm (D), 13 Liters
7.87" (W) x 9.13" (H) x 11.02" (D), 13 Liters |
| Extra |
Support Kensington lock |
| Remark |
| * When installing a high tower air cooler, an SFX PSU must be installed as there will be interference when using an ATX PSU. Please refer to manual for more details. |
