￭ Three silent 120mm fans included
￭ Positive air pressure design for excellent cooling/quietness and dust-prevention
￭ Incredible 340mm depth to fit comfortably inside home theater cabinet
￭ Designed with cable routing for easy installation
￭ Supports 4 x 3.5” hard drives and 2.5” hard drive or SSD (Solid-state drive)
￭ Supports expansion cards up to 11 inches
￭ Includes two front USB 3.0 ports
SPECIFICATIONS
| Model No. |
SST-GD06B(Black) |
| Material |
Aluminum front door and plastic front panel, 0.8mm SECC body |
| Motherboard |
Micro-ATX, Mini-DTX, Mini-ITX |

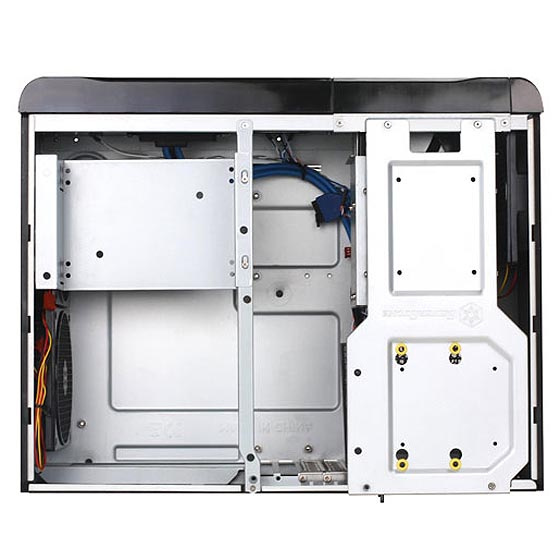

| Drive bay |
External |
5.25" x 1 |
| -- |
| Internal |
3.5" x 4 , 2.5” x1 or 3.5" x 3 , 2.5” x2 |
| Cooling system |
Front |
-- |

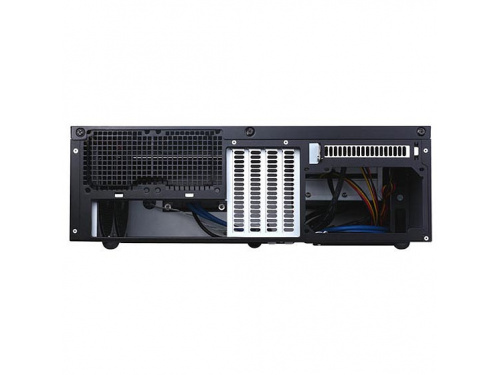

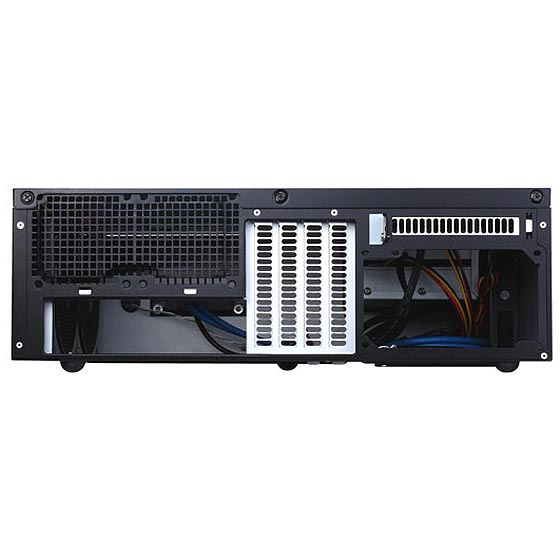

| Rear |
2 x 80mm fan slots (optional mounting) |
| Side |

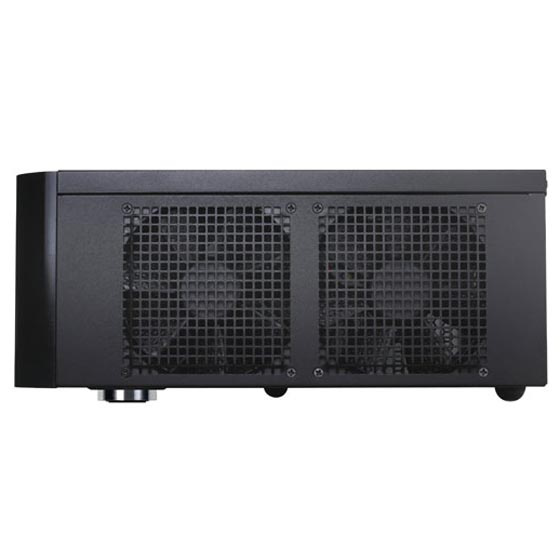

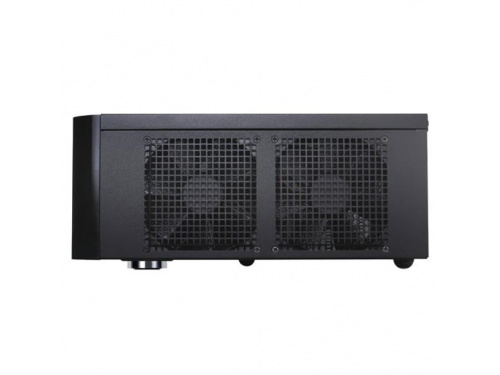

Right: 2 x 120mm intake fans, 1200rpm, 20dBA

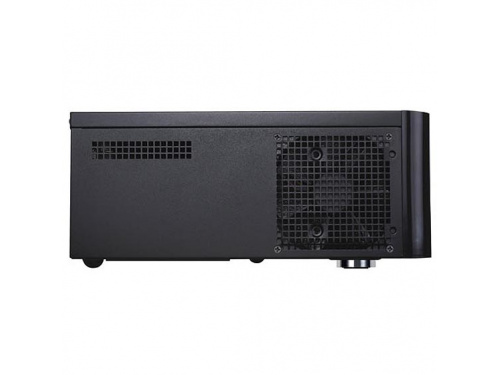

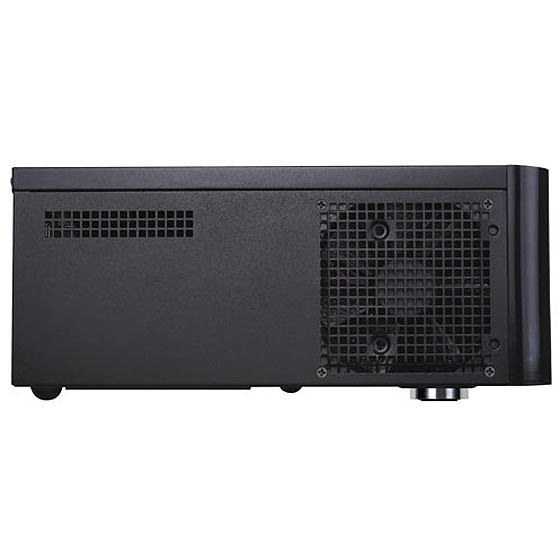

Left: 1 x 120mm intake fan, 1200rpm, 20dBA
Also compatible with 80mm fan
|
| Top |
-- |
| Bottom |
-- |
| Internal |
-- |
| Expansion slot |
5 |

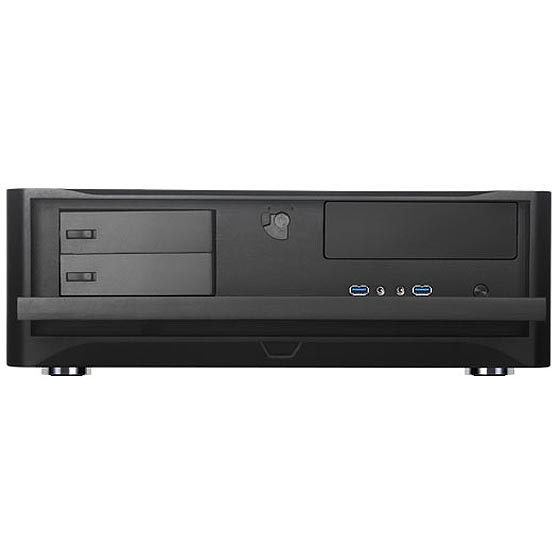

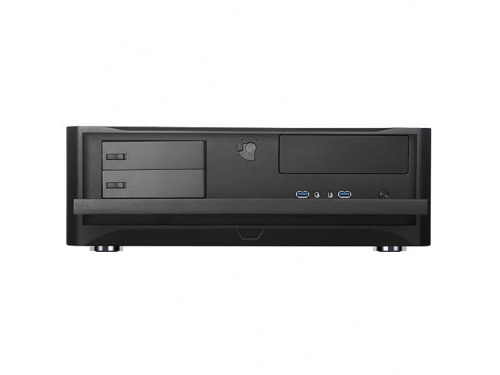

| Front I/O port |
USB 3.0 x 2
audio x 1
MIC x 1 |
| Power supply |
Support standard PS2(ATX) up to 150mm |
| Expansion card |
Compatible up to 11" (279mm) long, width restriction-4.92" (124mm) |
| Limitation of CPU cooler |
70mm (remove ODD if you want install up to 120mm) |
| Limitation of PSU |
150mm |
| Net weight |
5.6kg |
| Dimension |
440 mm (W) x 150 mm (H) x 340 mm (D), 22.4 liters
17.32" (W) x 5.91" (H) x 13.39" (D), 22.4 liters |
| Extra |
support Kensington lock |
