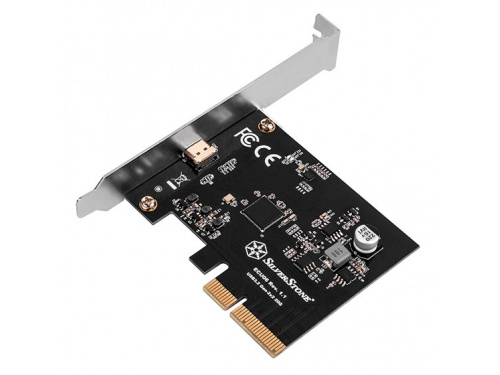

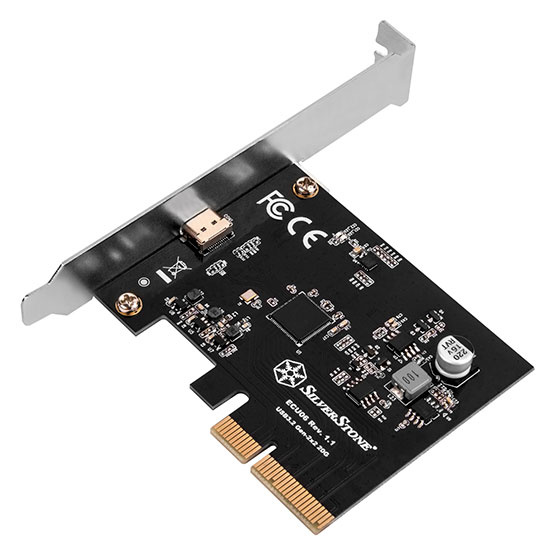

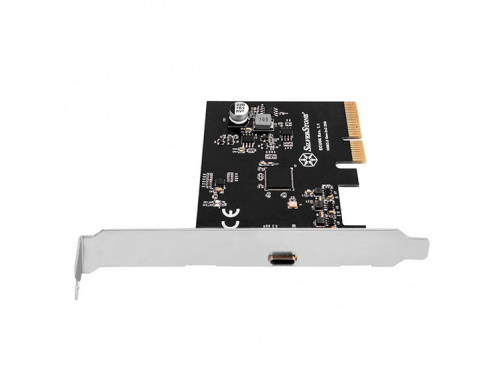

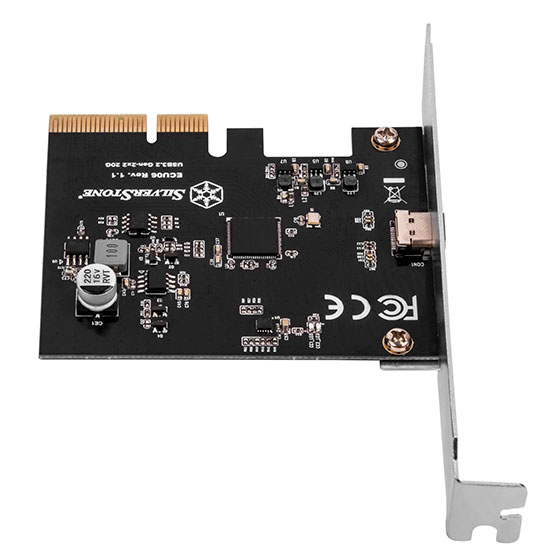

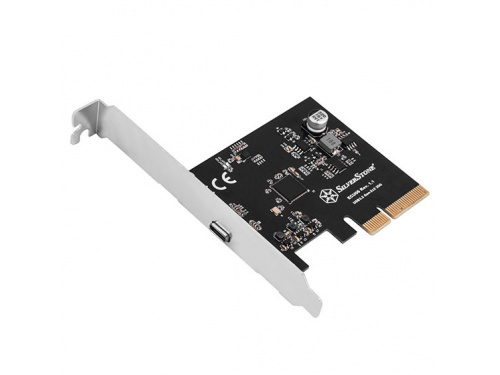

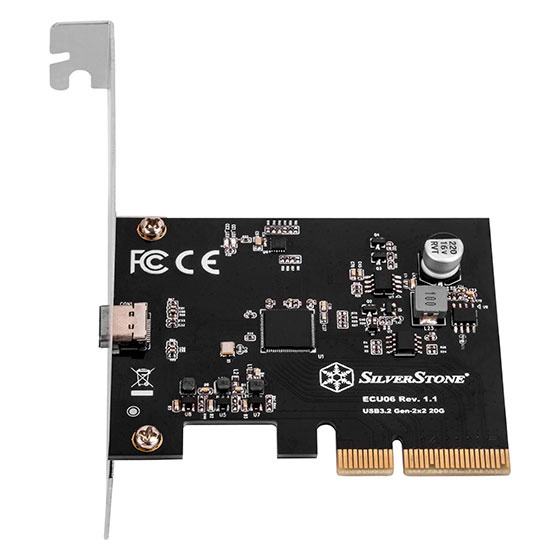

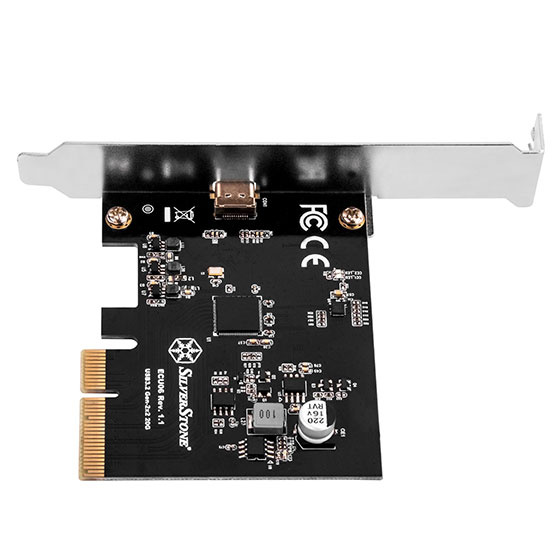

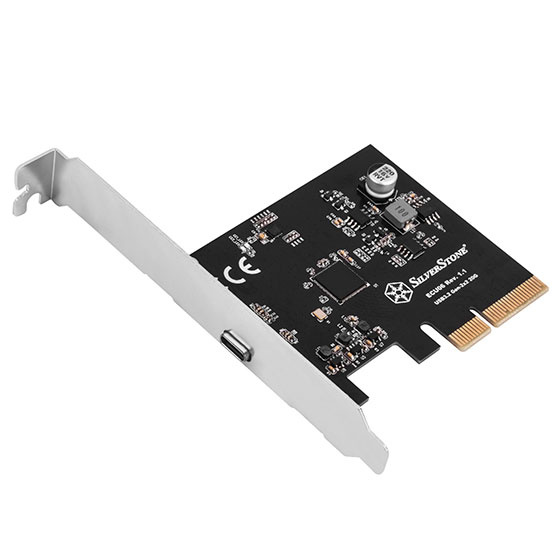

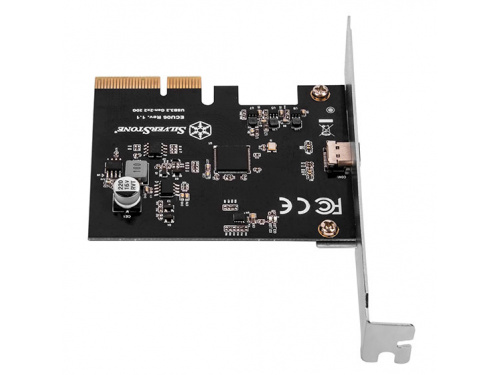

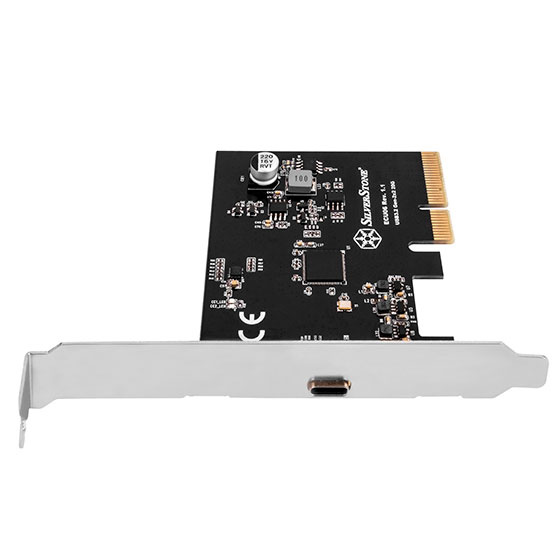

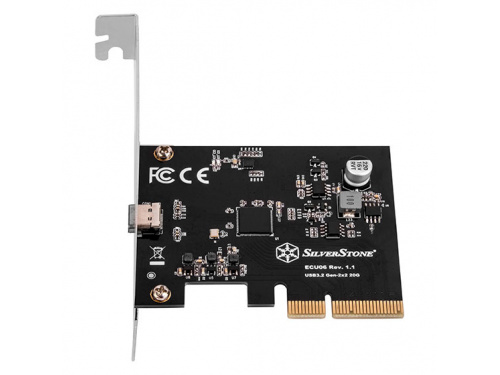

SilverStone ECU06 - PCIe x4 - USB-C 3.2 Gen2x2 Card 1x Ext 20Gbps Port- MODEL: SST-ECU06 usbSIpcie_usb32_ecu06

tweet_button SilverStone ECU06 - PCIe x4 - USB-C 3.2 Gen2x2 Card 1x Ext 20Gbps Port- MODEL: SST-ECU06 - GameDude Computers
SilverStone ECU06 - PCIe x4 - USB-C 3.2 Gen2x2 Card 1x Ext 20Gbps Port- MODEL: SST-ECU06
ecu06-34left-topecu06-packageecu06-left-sideecu06-34right-topecu06-right-sideecu06-backecu06-frontecu06-3ecu06-2
$99.00 each
Brand: SilverstoneSilverstone

- SuperSpeed USB 20Gbps / USB-C 3.2 Gen 2x2 PCIe expansion card
- SuperSpeed USB 20Gbps
- PCI Express Gen3 x4 lanes, transfer rate up to 32GT/s
- Compliant with PCI Express Base 3.1a specification.
- Compliant with eXtensible Host Controller Interface (xHCI) specification Revision 1.1
- Compliant with USB Attached SCSI Protocol (UASP) Revision 1.0

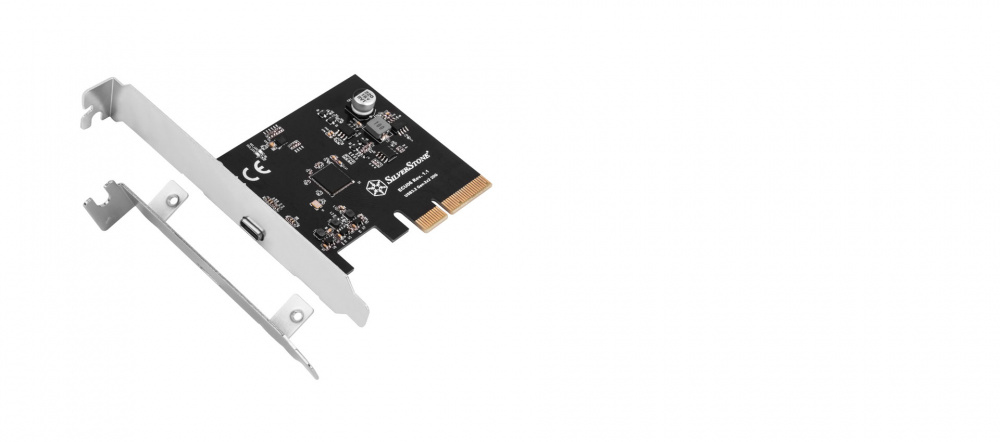

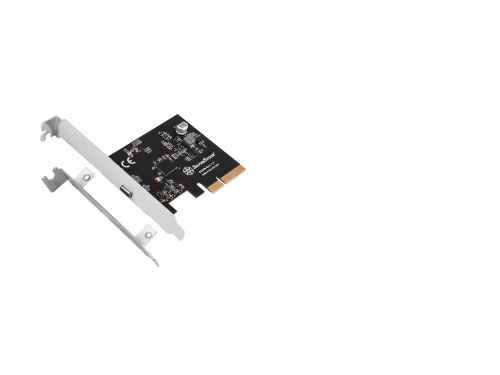

- Includes optional low profile slot cover for supporting low profile cases

SPECIFICATIONS
Model No.
- SST-ECU06
Power requirement
- PCI Express bus power
Form factor
- Low profile – PCI Express Gen 3 x4 (32GT/s)
USB Ports

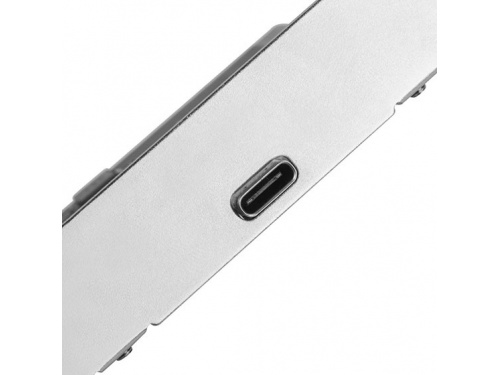

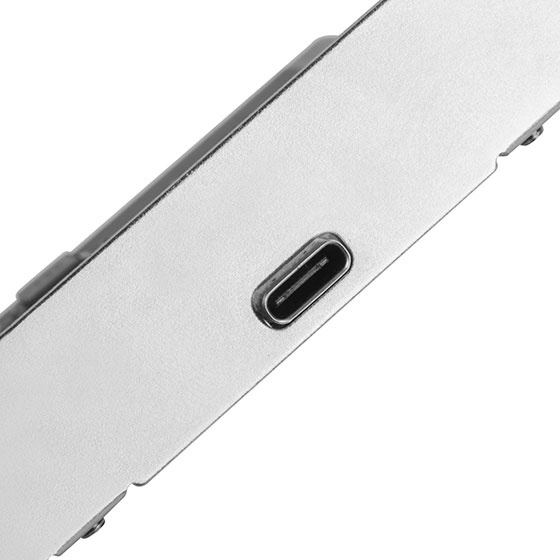

- USB 3.2 Gen 2x2 Type-C port.
USB 3.2 controller
- ASMedia ASM3242
Transmitting Speed
- USB 3.2 Gen 2x2 (20Gbps), USB 3.2 Gen 2x1 (10Gbps), USB 3.2 Gen 1 (5Gbps), USB 2.0 (480Mbps), USB 1.1 (12Mbps)
Operating system support
- Windows 8-10, Windows Server 2016-2019, Mac10.X, Linux OS* in-box xHCI driver natively support UASP, no additional driver required
Power Management
- Support USB 3.2 and USB 2.0 link power management
Extra
- UASP and Multiple INs function
Current protection
- Support over current detection
Operation Temperature
- Operating temperature range: 0 ~ 85 ºC
- Storage temperature range: -20 ~ +70 ºC
- Humidity range: 5 ~ 95% RH
Net weight
- 47g
Dimension
- 123mm (W) x 21mm (H) x 105mm (D)
- 4.84" (W) x 0.83" (H) x 4.13" (D)

Remark :
* User should confirm which OS version support xHCI driver natively.

** If your operating system is incompatible with the expansion cards developed by SilverStone, such that your device can not be detected or recognized, please update your motherboard’s driver or BIOS to the latest version. You may also try executing compatible mode in your operating system and select previous versions of operation system to install driver required by the expansion cards.
