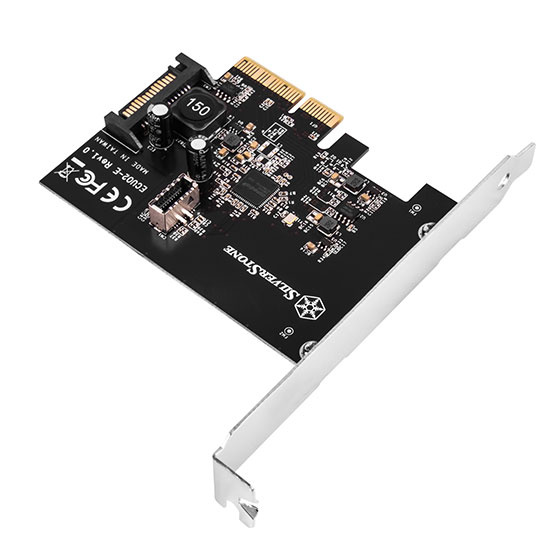

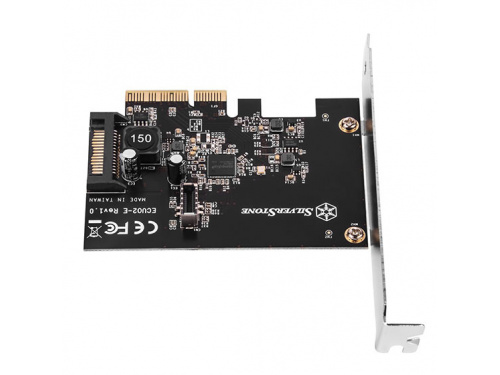

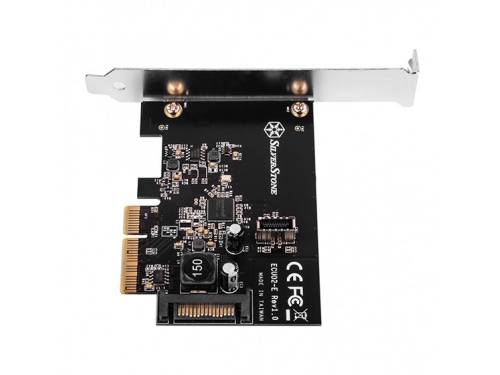

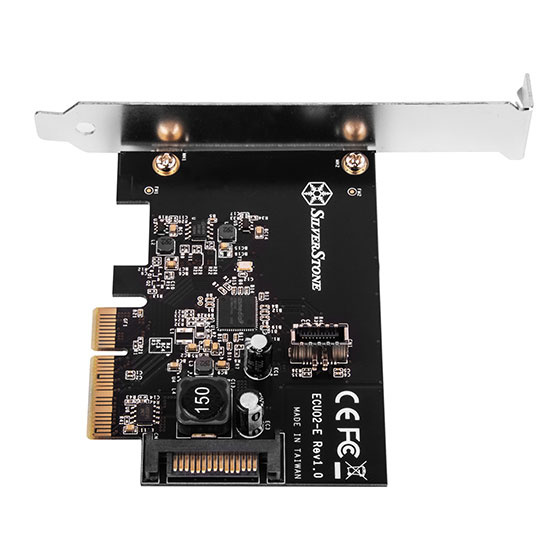

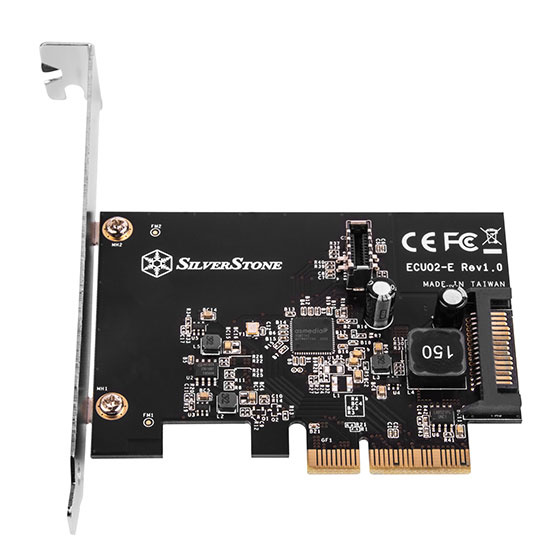

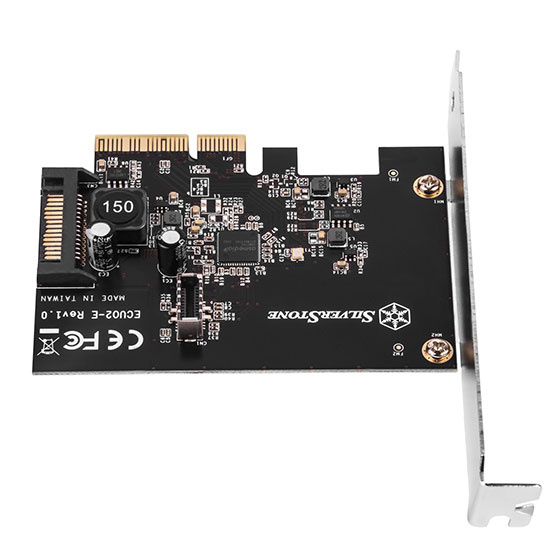

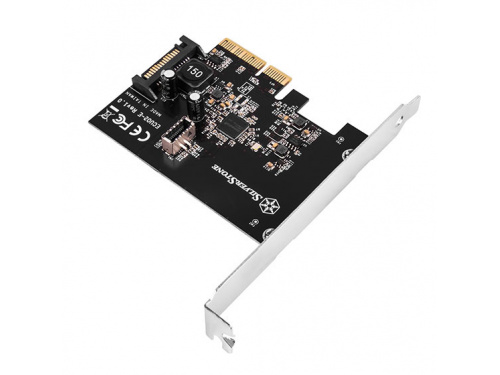

SilverStone ECU02-E  PCIe USB3.2 Gen2 Card - 1 x Internal 20pin (Key-A) - MODEL : SST-ECU02-E
ecu02-e-frontecu02-e-34right-backecu02-e-side-rightecu02-e-packageecu02-e-back
$65.00 each
Brand: SilverstoneSilverstone

- Includes one USB 3.2 Gen 2 internal 20pin Key-A connector
- PCIe Gen 3.0 x2 throughput up to 16GT/s
- Compliant with eXtensible Host Controller Interface (xHCI) specification Revision 1.1
- Compliant with USB Attached SCSI Protocol Revision 1.0 (UASP)
- Includes optional low profile slot cover for supporting low profile cases

SPECIFICATIONS
Model No.
- SST-ECU02-E
Power requirement
- 5V via SATA 15pin power connector
Form factor
- Low profile - PCIe 3.0 x2 (16GT/s)
USB Ports
- Internal 20 pin Key-A connector for USB 3.2 Gen2 Type-C port
USB 3.1 controller
- ASMEDIA ASM3142
Operation Temperature
- Operating temperature range: 0 ~ 70 ºC
- Storage temperature range: -20 ~ +70 ºC
- Humidity range: 5 ~ 95% RH
Transmitting Speed
- USB 3.2 Gen2 (10Gbps), USB 3.1 Gen 1 / USB 3.0 (5Gbps), USB 2.0 (480Mbps), USB 1.1 (12Mbps)
Operating system support
- Windows 7* / 8 / 8.1 / 10** (32bit / 64bit) or future release version, Ubuntu / Linux / Mac OS***
Power Management
- Support USB 3.2 and USB 2.0 link power management
Current protection
- Support over current detection and protection
Net weight
- 47g
Dimension
- 123mm (W) x 21mm (H) x 105mm (D)
- 4.84" (W) x 0.83" (H) x 4.13" (D)
Extra
- UASP and Multiple INs function

Remark :
* In windows 7 or previous version, please install the ASM3142 driver to enjoy the SuperSpeed USB 3.2 performance.

** Windows 8 or 8.1, 10 supports ECU02-E automatically so you do not need to install additional driver for it.

*** User should check for XHCI function in Ubuntu/Linux or Mac OS, if computer system supports XHCI function then it can support ECU02-E automatically without additional driver installation.

**** If your operating system is incompatible with the expansion cards developed by SilverStone, such that your device can not be detected or recognized, please update your motherboard’s driver or BIOS to the latest version. You may also try executing compatible mode in your operating system and select previous versions of operation system to install driver required by the expansion cards.
