￭ Smart torque spring ensures hassle-free adjustment
￭ Multiple adjustment including height and 360 degrees monitor rotation
￭ Aluminum construction
￭ Easy installation and cable management
￭ Meet VESA Mounting Interface Standard
SPECIFICATIONS
| Model No. |
SST-ARM23BS |
| Color |
Black |
| Material |
Steel / Aluminum alloy / Plastic |
| Max. wall mount hole pitch |
100 x 100mm / 75 x 75mm |
| Support flat panel size |
≦24" |
| Screw Type |
M4 |
| Swivel |
±15° |
| Tilt |
±15° |
| Rotate(Pivot) |
360° |
| Support max. weight |
8Kg (17.6 lbs)/ per monitor |
| Torque adjust |
Available |
| Height adjustment range (POLE) |
343mm (13.5") |
| Net weight |
2.61Kg (5.74 Ibs) |

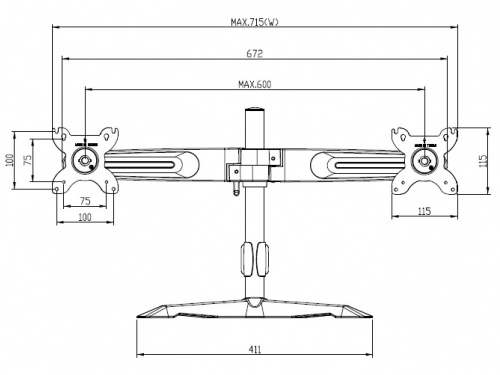

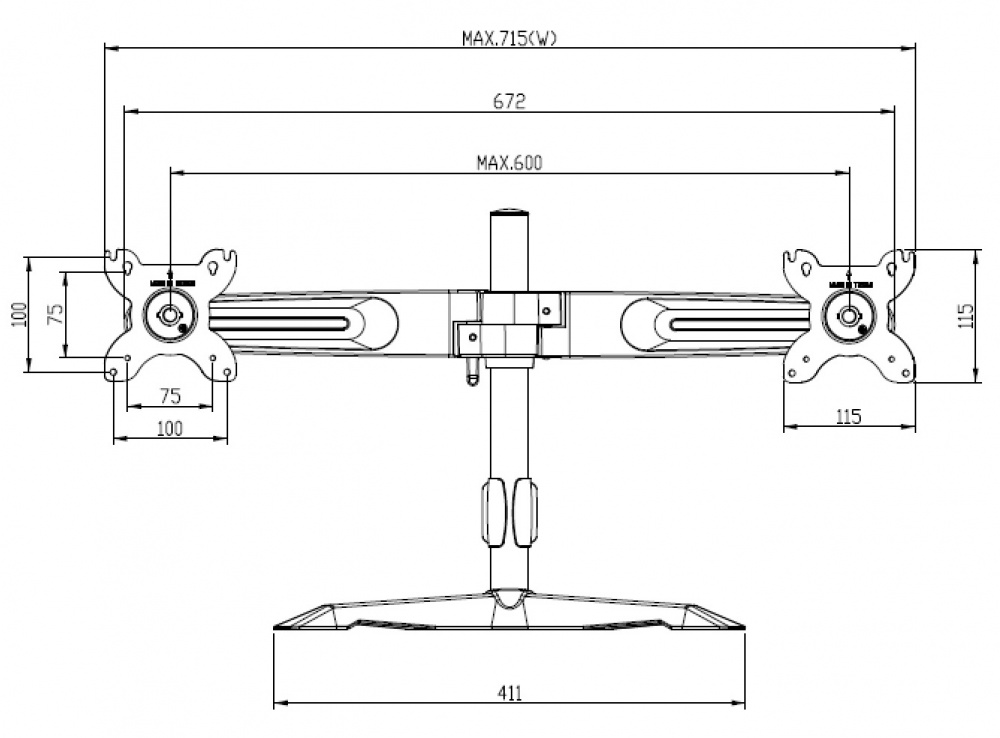

| Dimension |
715mm (W) x 401mm (H) x 246mm (D)
28.15" (W) x 15.79" (H) x 9.69" (D) |
