MSI MAG Z790 TOMAHAWK WIFI LGA1700 MOTHERBOARD INTEL Z790, Socket 1700, ATX, DDR5, LAN, Wi-Fi 6E mbMSz790_tomahawk_wifi_d5

tweet_button MSI MAG Z790 TOMAHAWK WIFI LGA1700 MOTHERBOARD INTEL Z790, Socket 1700, ATX, DDR5, LAN, Wi-Fi 6E  - GameDude Computers

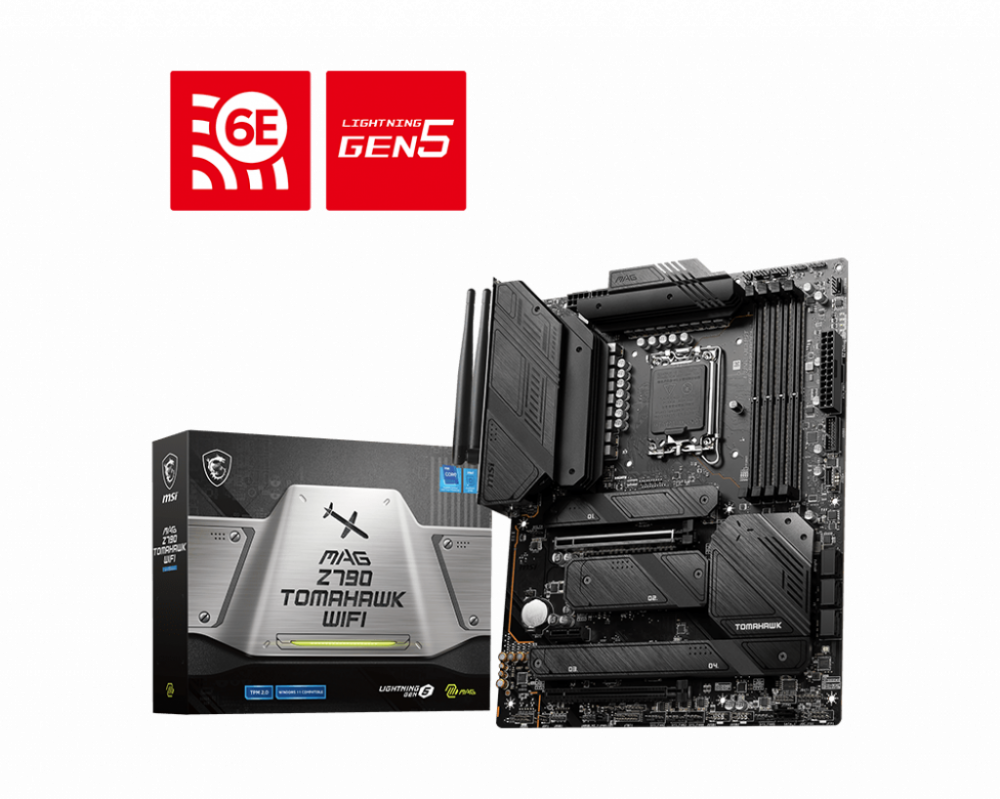

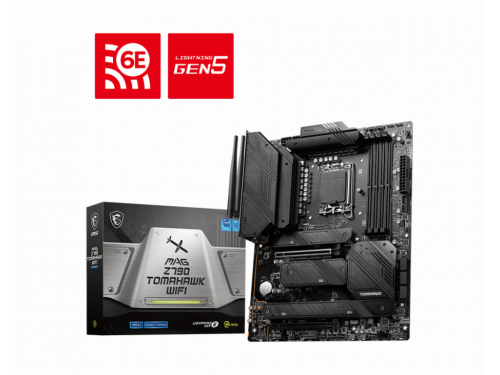

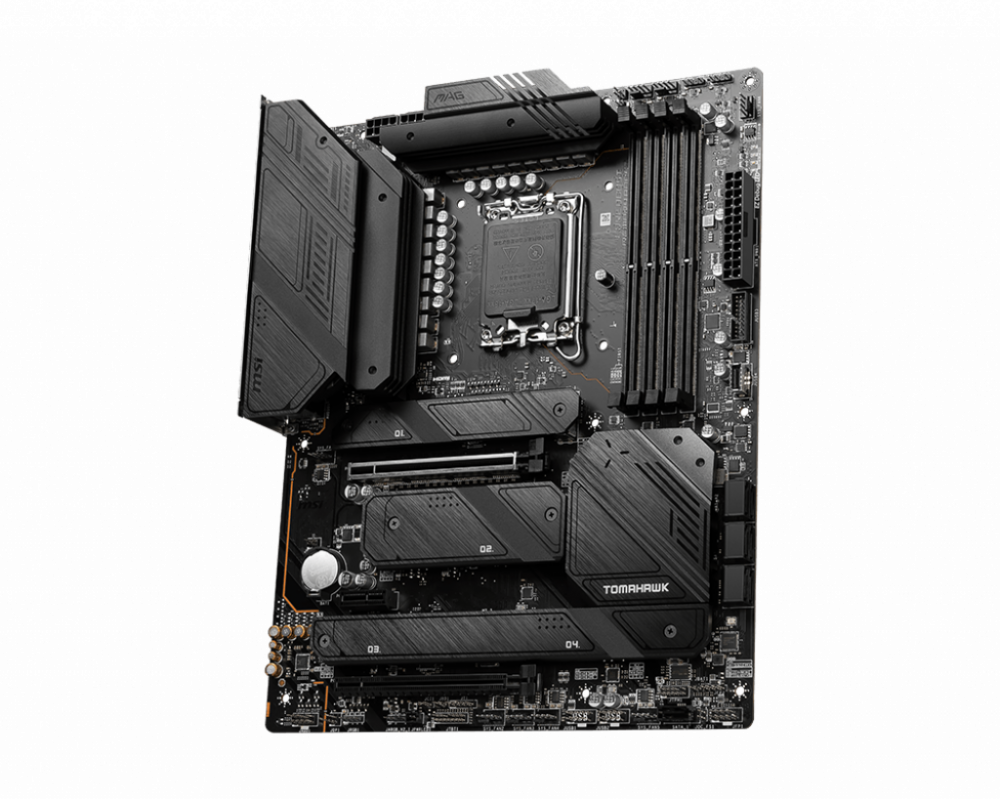

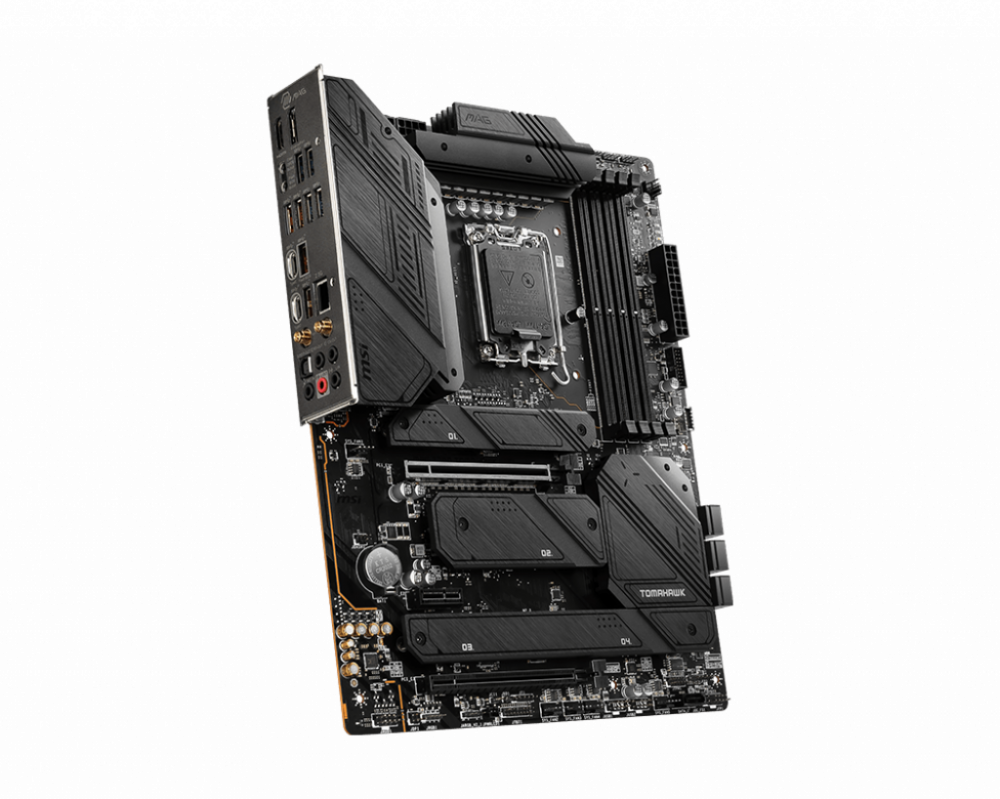

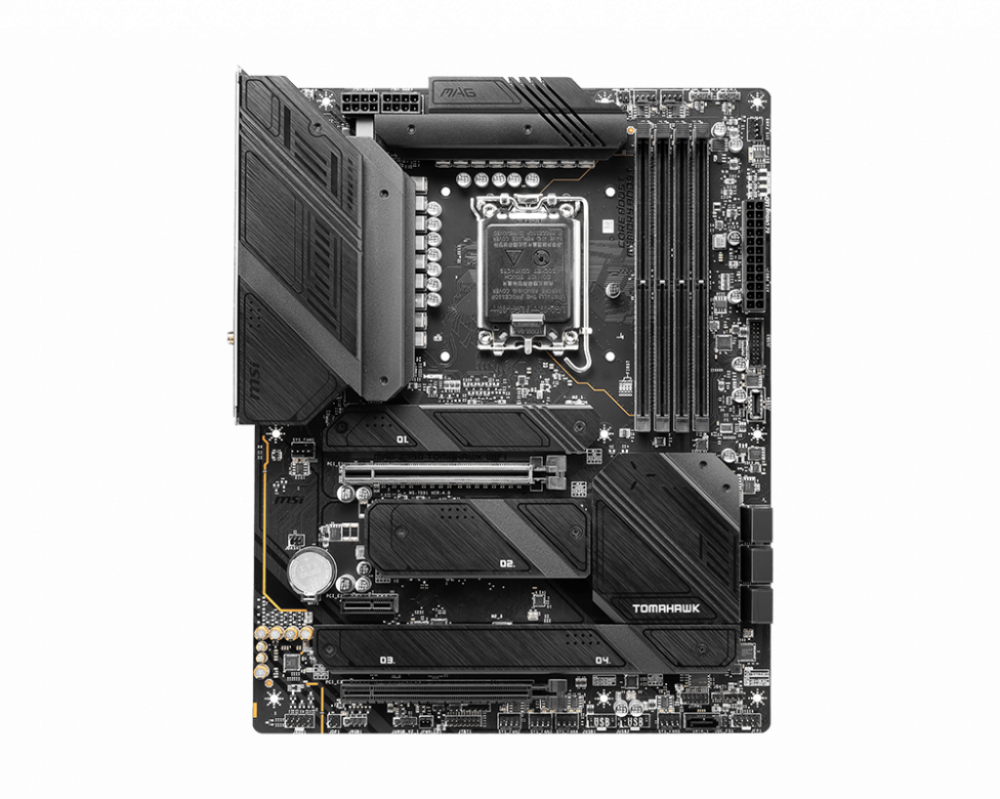

MSI MAG Z790 TOMAHAWK WIFI LGA1700 MOTHERBOARD INTEL Z790, Socket 1700, ATX, DDR5, LAN, Wi-Fi 6E
mag_z790_tomahawk_wifi_01mag_z790_tomahawk_wifi_03mag_z790_tomahawk_wifi_02mag_z790_tomahawk_wifi_04mag_z790_tomahawk_wifi_05
$459.00 each
Brand: MSIMSI

SPECIFICATIONS & DETAILS
Model Name
  MAG Z790 TOMAHAWK WIFI
Specifications
CHIPSET INTEL Z790
CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
MEMORY 4x DDR5, Maximum Memory Capacity 128GB
Memory Support 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(JEDEC)/5400(JEDEC)/5200(JEDEC)/5000(JEDEC)/4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS 1x HDMI™
1x DisplayPort
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 2x PCI-E x16 slot
Supports x16/x4
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
STORAGE 4x M.2 slot
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
7x SATA 6G port
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices*
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
* SATA_A1_A2 do not support RAID function.
USB 4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Intel® 2.5Gbps LAN
WIRELESS / BLUETOOTH Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
INTERNAL I/O 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
LED FEATURE 4x EZ Debug LED

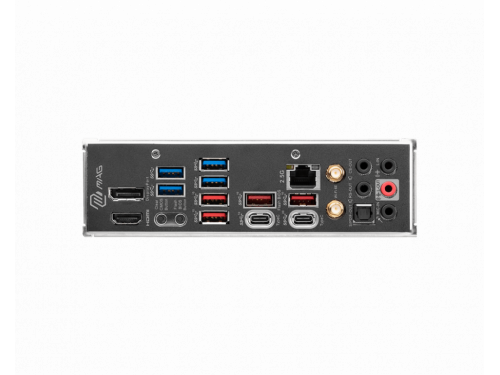

BACK PANEL PORTS DisplayPort 1.4
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port,
HD Audio Connectors
HDMI™ 2.1 Port
Clear CMOS Button
Flash BIOS Button
USB 3.2 Gen 2 10Gbps Type-C
USB 3.2 Gen 2x2 20Gbps Type-C
Wi-Fi / Bluetooth Antenna
Optical S/PDIF OUT
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSION ATX
243.84mmx304.8mm
