EasyFlash 64 3 Complete Cartridge c64_easyflash_3

tweet_button EasyFlash 64 3 Complete Cartridge  - GameDude Computers
EasyFlash 64 3 Complete Cartridge

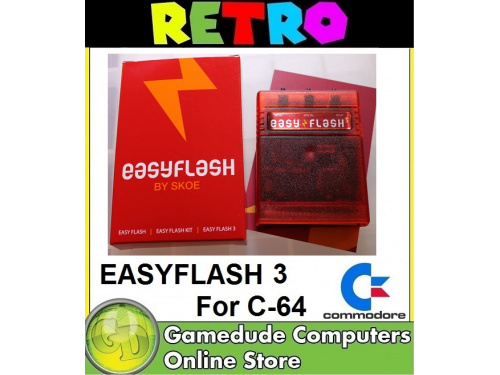

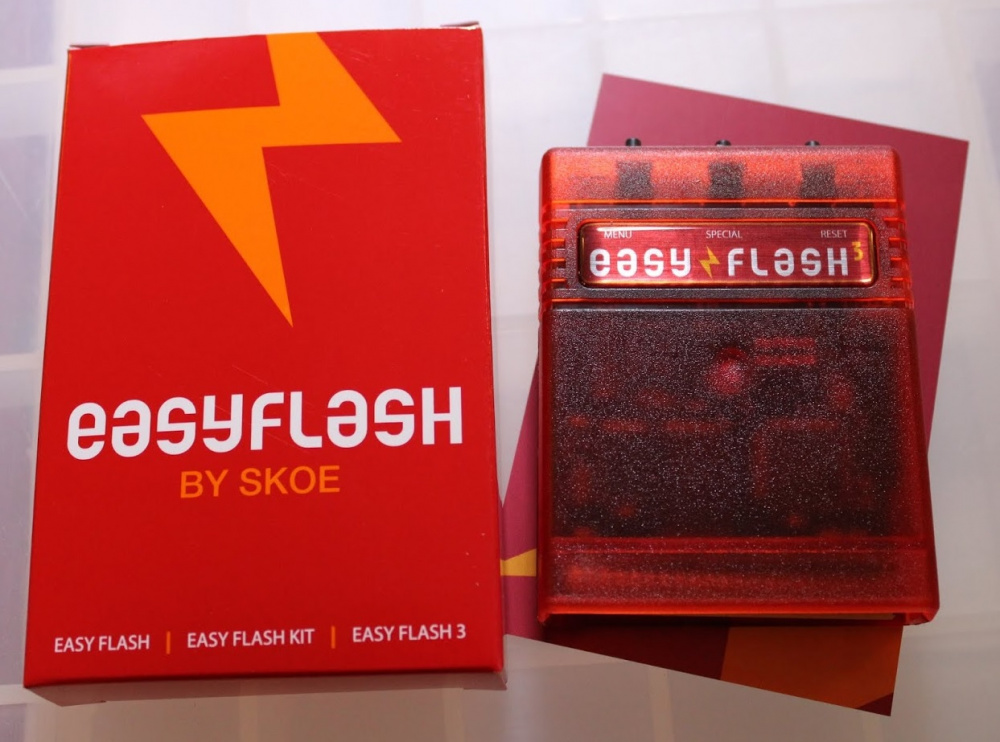

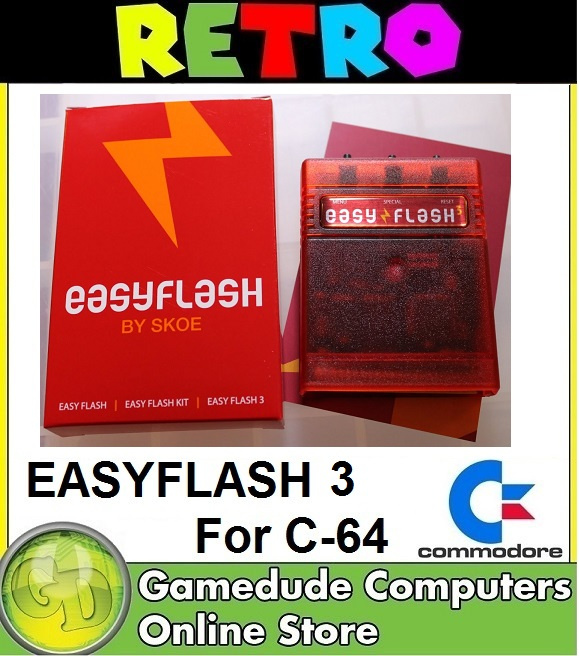

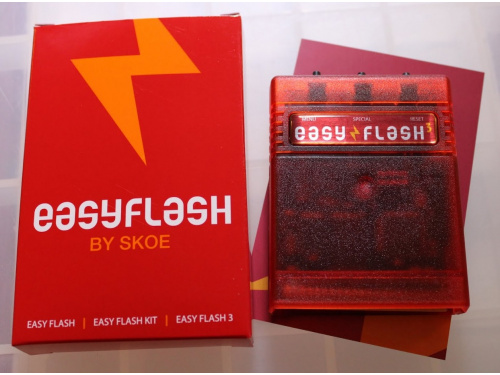

easyflash3_red_retroeasyflash_3

EasyFlash 3 is the big brother of EasyFlash. It is compatible to EasyFlash, so usually all software for EasyFlash should also work on EasyFlash 3. But it can do more.

It provides 7 EasyFlash slots, each of them is a full-featured EasyFlash 1. With a menu you can choose which one you want to start.

Additionally it can replace the internal KERNAL with one of up to eight KERNALS saved in the cartridge. The external KERNAL has the same compatibility to software as if it had been built-in.

A USB port can be used to update the firmware on the CPLD. It will also allow to write to the cartridge from PC and to transfer other data.

The EasyFlash 3 also supports freezer cartridges. It is compatible with freezer cartridge images that can be run on any of the following freezer cartridges:

  • Action Replay
  • Retro Replay
  • Nordic Power / Atomic Power
  • Super Snapshot 5

ef3-menu EasyFlash 64 3 Complete Cartridge  - GameDude Computers

EasyFlash 3 features a menu from which the different operation modes are selected and started. The EF3 menu starts up when a machine with EasyFlash 3 cartridge is booted. Alternatively, the menu comes up when the ‘MENU’ button is pressed on the cartridge.

The available EasyFlash, KERNAL or freezer cartridge slots are started by pressing the corresponding key on the keyboard. Alternatively the menu can be controlled with a joystick in port 2.

Additional features: EasyProg can be started by pressing P, the EasyFlash 3 cartridge can be deactivated by selecting K - Kill Cartridge, V to display current CPLD Core and Menu version, and Z to exit to C128 mode, if available.

The different operation modes - EasyFlash cartridge, KERNAL cartridge and freezer cartridge - can only be active one at a time.

It is possible to boot the machine directly to BASIC instead of EF3 menu by holding down C= or Q key during boot.

EasyFlash 3 buttons

The EF3 cartridge has three buttons; MENU, SPECIAL and RESET. The MENU button always resets into the EF3 menu. The operation of the other two buttons depends from the current mode.

SPECIAL button

  • In EF3 menu, it exits to BASIC (without deactivating the cartridge).
  • In EasyFlash mode, it exits to BASIC (leaving the selected EF slot active).
  • In freezer cartridge mode, it acts as the Freeze -button of the selected cartridge.
  • Other modes: No operation.

RESET button

  • In EasyFlash mode, resets the selected cartridge.
  • In freezer cartridge mode, acts as the Reset button of the selected cartridge.
  • In KERNAL cartridge mode, resets the machine leaving the selected KERNAL active.
